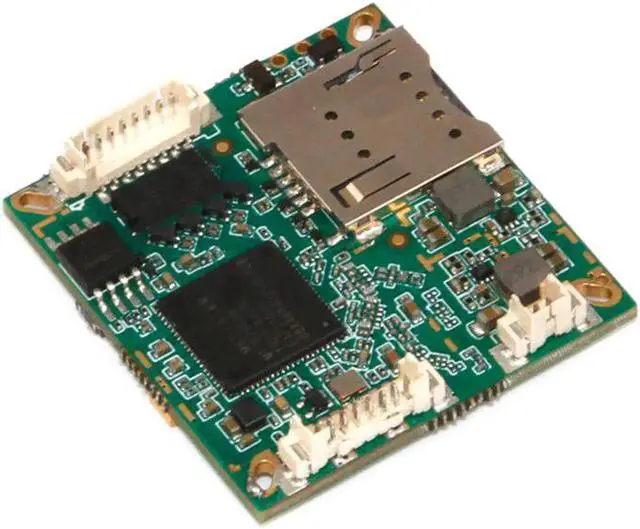

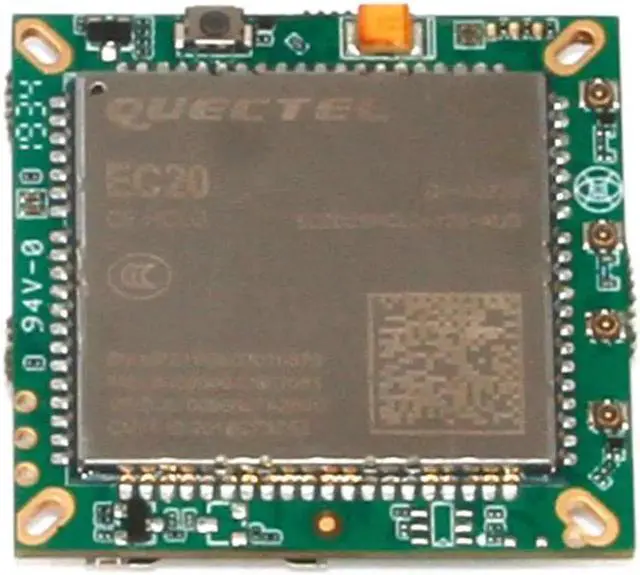

Wireless 4G Router Module For Outdoor IP Camera WiFi CCTV Camera CCTV Security IP Camera 38*38mm PCBA LTE Router Module

OverviewWith a compact design, 4G Wireless Communication Module is a wireless communication module product specially applied to the field of security industry. It is suitable for places where it is not convenient to arrange wired networks when deploying security cameras. The module converts the 4G network into a standard wired network port signal connection. As long as a SIM card, you can use a mobile phone APP or a terminal application software such as a computer to remotely view the camera video surveillance in real time

Key FeaturesComplies with EEE802.11b/g/n protocol

Supports 64/128 bit WEP encryption, WPA/WPA2, SPA-PSK/WPA2-PSK and other encryption and security mechanism

CAT4/300Mbps Wireless Router Module

MT7628DAN

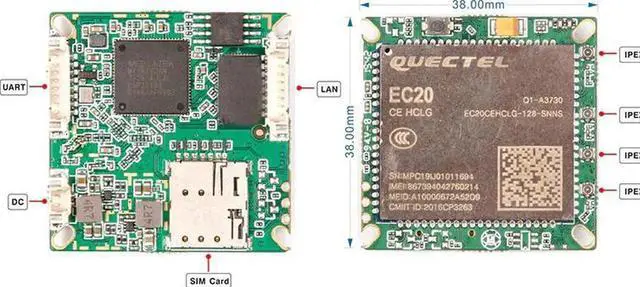

1* WAN + 1* LAN 10/100M+1* UART+1* SIM Card Slot

4* IPex slot for external antennas

16M Flash, 64M RAM

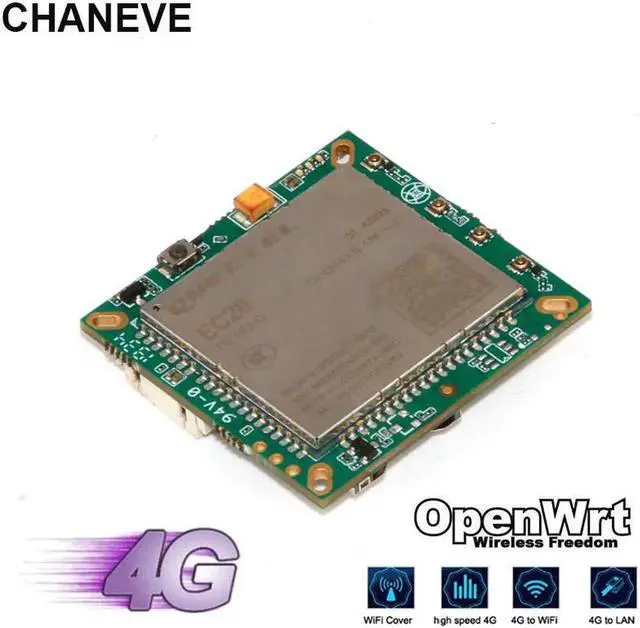

Pre-loaded OpenWRT, easy to add the 3rd party application

You can check your local operator's 4G frequency band through the following https://en.wikipedia.org/wiki/List_of_LTE_networks

Or, if you are not sure which version is right for you, please contact us and we will assist you.

EU 4G Version For EMEAFDD-LTE B1 / B3 / B7 / B8 / B20 / B28A

TDD-LTE B38 / B40 / B41

WCDMA B1 / B8

GSM / EDGE B3 / B8

US 4G Version For North AmericaFDD-LTE B2/B4/B5/B12/B13/B14/B66/B71

WCDMA B2/B4/B5

AU 4G Version For Latin America/Australia/New ZealandFDD-LTE B1/B2/B3/B4/B5/ B7/B8/B28

TDD-LTE B40

WCDMA B1/B2/B5/B8

Asia 4G Version For South Korea/ Thailand/IndiaFDD-LTE B1/B3/B5/B8

TDD-LTE B38 /B39 /B40 /B41

WCDMA B1 /B5 /B8

GSM /EDGE B3 /

Packing list1 x 4G Module
