4W Wifi Amplifier Router 2.4Ghz 802.11b/g/n Wireless Signal Extender WiFi Booster WLAN Repeater Adapter for Wifi Router

Notes:

Your device must be SMA antenna detachable Connector when used it , for example SMA detachable antenna router

Please comfirm that you device output power range is between 3dBm and 20dBm,only that the wifi signal booster could work well

Features:

Low-noise receive gain

Signal activity LED indicates

High Gain, High Value, High Performance

Maximum output power of 4000mW by the Booster

Plug-and-play, Easy installation, no driver needed

Ideal for increase the 2400-2500Mhz frequency devices

Increase the effective range and coverage area of your Wi-Fi network

Simply attach the booster in between the standard antenna on a wireless router or wireless access point and watch your range grow

The amplified wireless signal may even penetrate complex environments with many walls and obstacles

Ideal for use with 2.4GHz Wireless LANs, Support 802.11b, 802.11g, 802.11n (2.4Ghz mode only)

Specification:

Operation Range: 2400-2500 MHz.

Operation Mode: Bi-directional, half-duplex, Auto-Switching via carrier sensing.

Frequency Response: ± 1dB over operation range.

Input Power: 3dBm (Min.)-20dBm (Max.).

Output Power: 4000mW nominal

Transmit Gain: 12-14dBm nominal.

Receiver Gain: 9-11dBm.

Receive Noise Figure: 3.0dBm nominal.

Operating Temperature: -40 to 70 degree.

Operating Humidity: Up to 95% relative humidity.

Material: Cast Aluminum

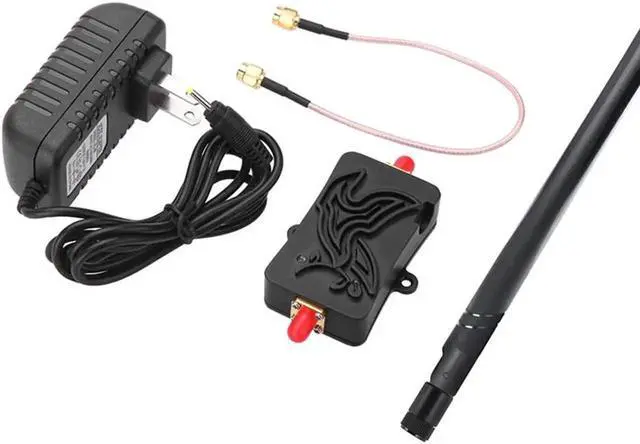

Package Content:

1 x WiFi Booster

1 x Power Adapter

1 x English User Manual
