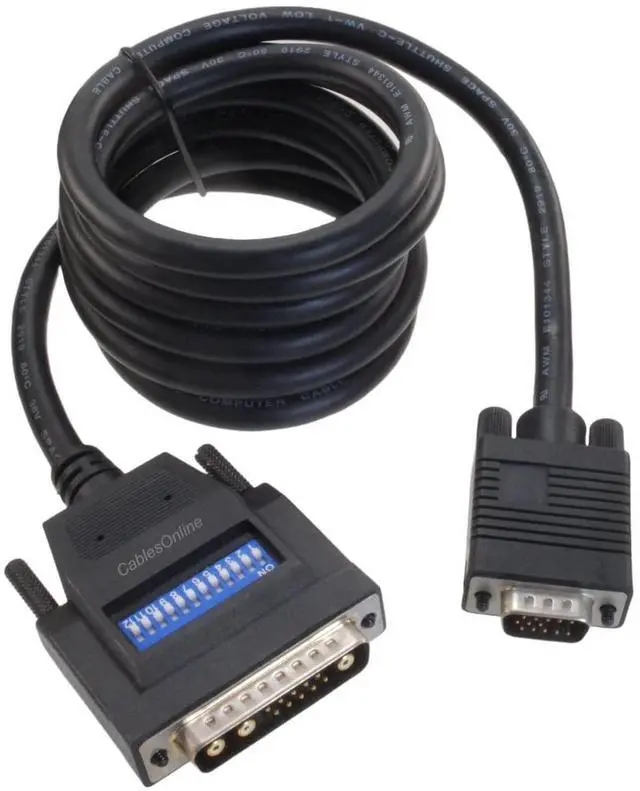

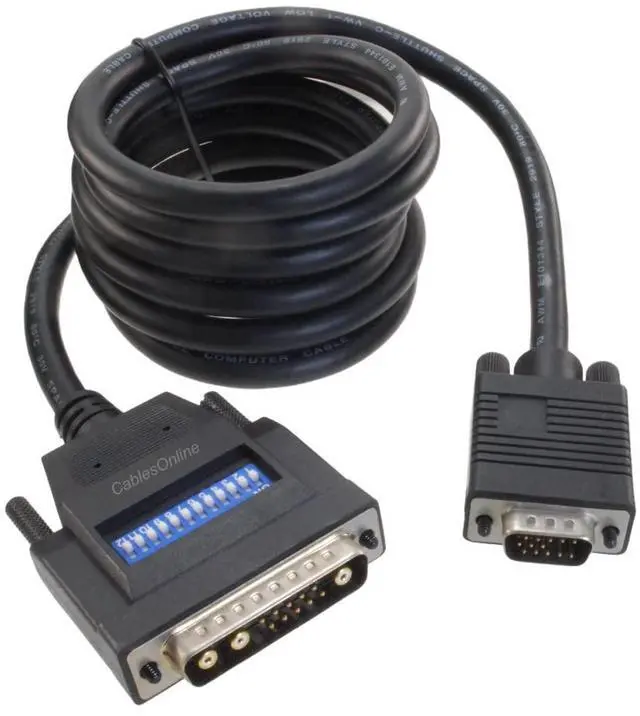

CablesOnline, 6ft 13W3 Male to SVGA (HD15) Male (SunMicro) Monitor Cable w/ 12 Dip Switches, W3-606

CablesOnline, 6ft 13W3 Male to SVGA (HD15) Male (SunMicro) Monitor Cable w/ 12 Dip Switches, W3-606

These shielded monitor cables are Commonly used with Sun Microsystems, IBM, Silicone Graphics work stations as well as some Apple and NeXT displays.

Please be sure to check the pin-out for compatibility.

Switch Settings:

SGI Computer Comp Sync Out:
(SW-1: ON/OFF), (SW-2: ON/OFF), (SW-3: OFF), (SW-4: ON/OFF), (SW-5: ON/OFF), (SW-6: ON), (SW-7: OFF), (SW-8: OFF), (SW-9: OFF), (SW-10: OFF), (SW-11: OFF), (SW-12: ON)

SGI Computer HV Sync Out:
(SW-1: ON/OFF), (SW-2: ON/OFF), (SW-3: OFF), (SW-4: ON/OFF), (SW-5: ON/OFF), (SW-6: ON), (SW-7: OFF), (SW-8: OFF), (SW-9: ON), (SW-10: OFF), (SW-11: ON), (SW-12: OFF)

SGI Computer Sync On Green Out:
(SW-1: ON/OFF), (SW-2: ON/OFF), (SW-3: OFF), (SW-4: ON/OFF), (SW-5: ON/OFF), (SW-6: ON), (SW-7: OFF), (SW-8: OFF), (SW-9: OFF), (SW-10: OFF), (SW-11: OFF), (SW-12: OFF)

Sun Workstation:
(SW-1: OFF), (SW-2: OFF), (SW-3: ON/OFF), (SW-4: OFF), (SW-5: OFF), (SW-6: ON/OFF), (SW-7: ON/OFF), (SW-8: ON), (SW-9: OFF), (SW-10: ON), (SW-11: OFF), (SW-12: OFF)

IBM Power PC:
(SW-1: OFF), (SW-2: OFF), (SW-3: ON/OFF), (SW-4: OFF), (SW-5: OFF), (SW-6: OFF), (SW-7: ON), (SW-8: ON), (SW-9: OFF), (SW-10: ON), (SW-11: OFF), (SW-12: OFF)

Specifications

:

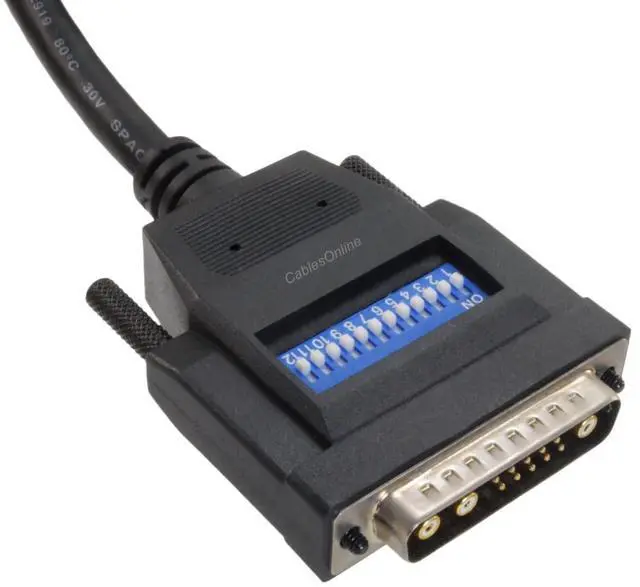

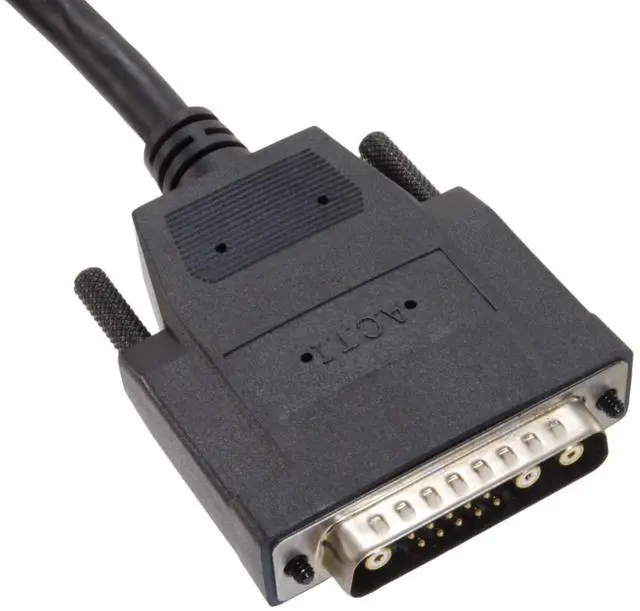

* 13W3 Male with 12 Dip Switches

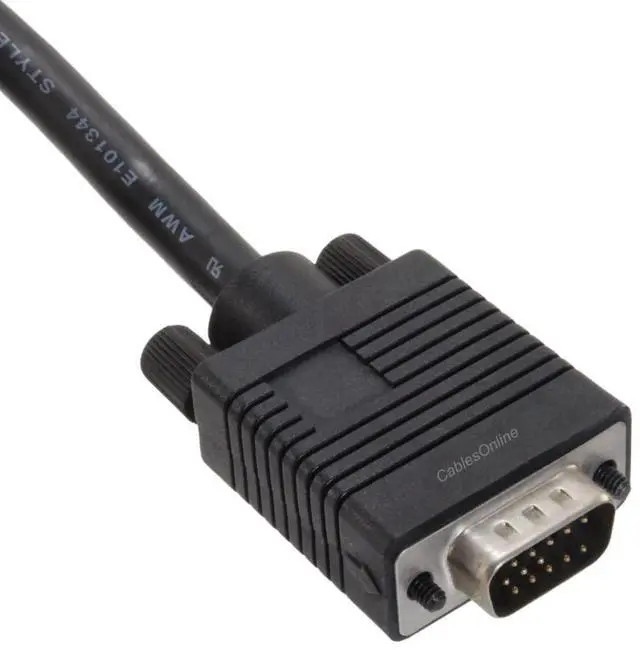

* VGA (HD15) Male
* Fully Molded and Shielded Cable
* Length: 6 feet
* Quantity: 1 piece
* UPC: 194732006420

CablesOnline Part Number: W3-606
