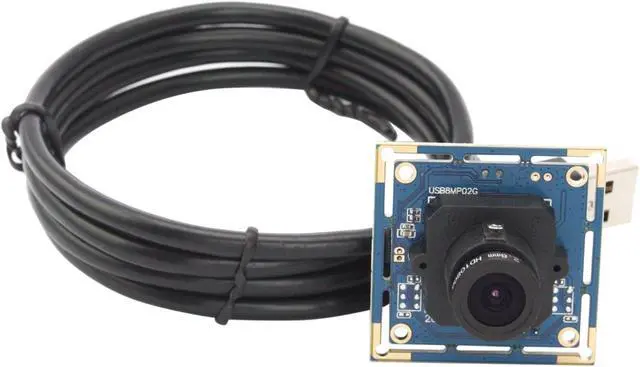

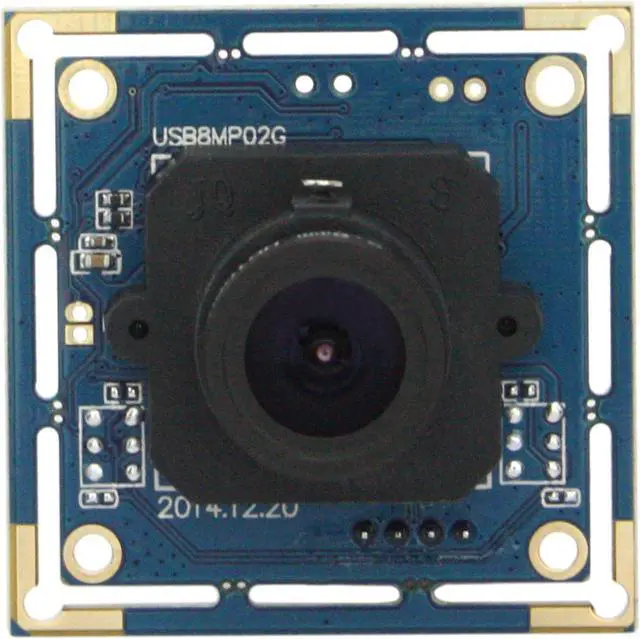

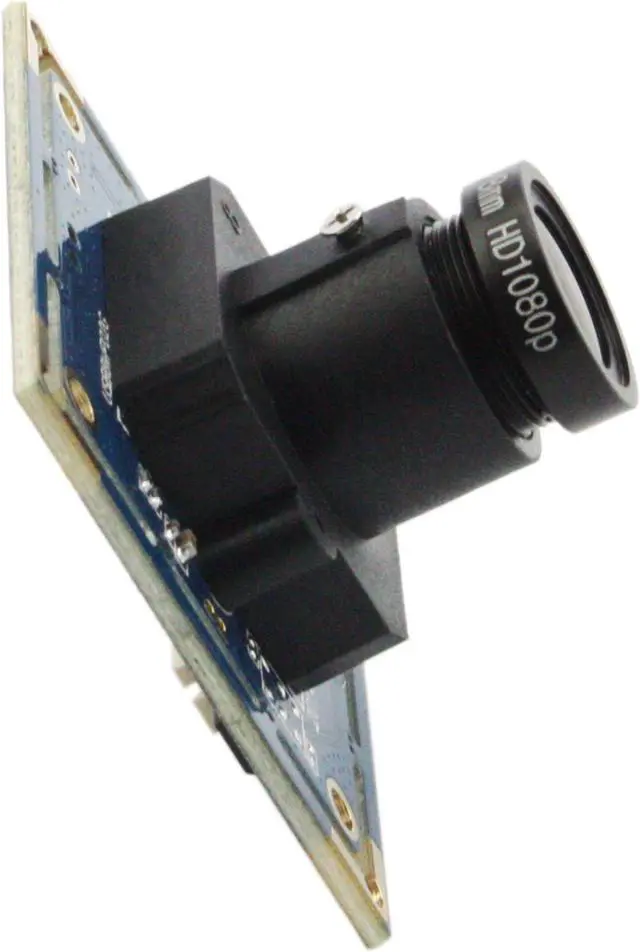

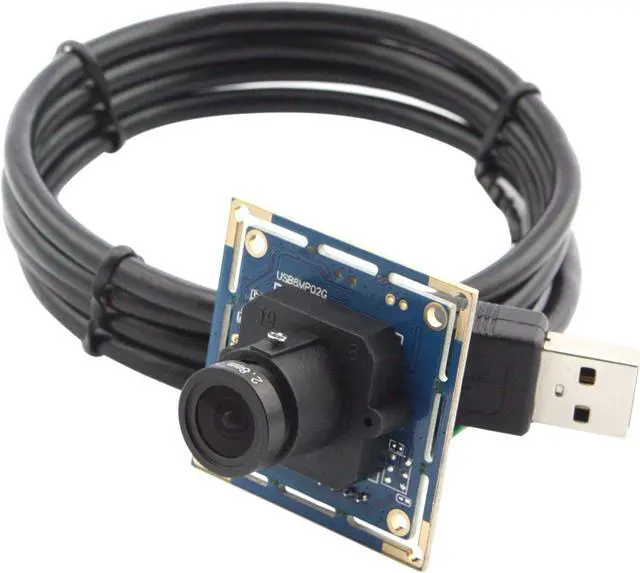

ELP 8mp usb Camera Module 2448p Webcam Board 2.8mm Wide Angle Lens Web Cam Smart Embedded Camera IMX179 4k usb webcam module,8megapixel HD Industrial Laptop USB Camera for Windows/Linux/Android/mas Os
- Model:ELP-USB800W02G-L28,HD Digital camera with 8megapixel super high resolution,max resolution:3264X2448,support 3264X2448@15fps,1600X1200@20fps,[email protected] definition smart embedded web camera board can meet most capturing requirements,ELP 8mp usb camera module equipped with 1M usb cable.
- USB2.0 high speed output color cmos sensor for sharp image view:ELP 8mp usb camera module with 1/3.2 inch Sony IMX179 Image Sensor for sharp image monitoring. Brightness,contrast,hue,saturation,sharpness,gamma,white balance,exposure adjustable.ELP 2.8mm wide angle Hd 8megapixel Mjpeg 4k Camera USB Webcams for Company Industrial.

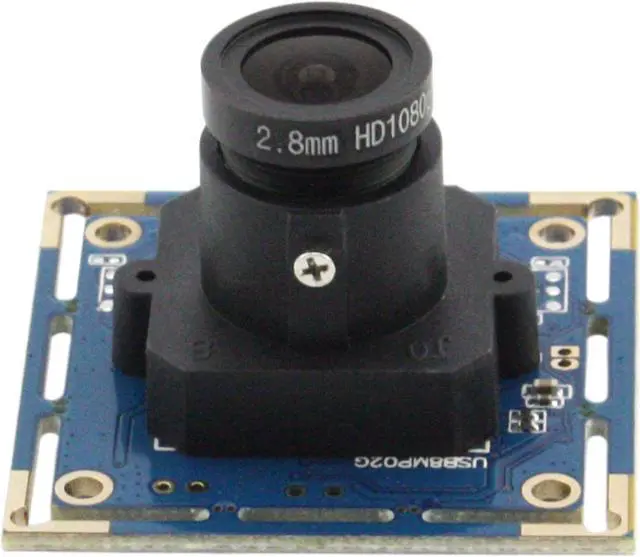

- 2.8mm wide angle lens: ELP mini 38*38mm/32*32mm 4k usb camera board with 2.8mm wide angle lens can be installed in most hidden and narrow position for a home surveillance system,wildlife photography,dash cam,baby camera, etc. High resolution for HD home security and HD industrial requirements,especially for medical auxiliary,etc.
- YUYV or MJPEG comp
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
ELP HD 8Megapixel USB CMOS board camera module(model: ELP-USB800W02G serials) adopt Sensor Sony (1/ 3.2" ) IMX179
is nice to used in Linux equipment, or those equipment which come with windows, linux, Android system etc.
Specification:
USB video camera Picture format MJPEG/YUY2 /USB Protocal USB 2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support
Performance:
3264X2448 MJPEG 15fps YUY2 2fps/3200X2400 MJPEG 30fps YUY2 30fps
2592X1944 MJPEG 15fps YUY2 3fps/2048X1536 MJPEG 20fps YUY2 3fps
1600X1200 MJPEG 20fps YUY2 10fps/1280X960 MJPEG 20fps YUY2 10fps
1024X768 MJPEG 30fps YUY2 10fps/800X600 MJPEG 30fps YUY2 30fps
640X480 MJPEG 30fps YUY2 30fp
Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision optional, can support IR Cut and IR board for IR night vision.
voltage DC 5V/current 150mA/work temperature DEGREES(-20~70)
Size: 38mm*38mm/32*32mm (other size cutomised)
Support OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4. 8 or later
ELP HD 8Megapixel USB CMOS board camera module(model: ELP-USB800W02G serials) adopt Sensor Sony (1/ 3.2" ) IMX179
is nice to used in Linux equipment, or those equipment which come with windows, linux, Android system etc.
Specification:
USB video camera Picture format MJPEG/YUY2 /USB Protocal USB 2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support
Performance:
3264X2448 MJPEG 15fps YUY2 2fps/3200X2400 MJPEG 30fps YUY2 30fps
2592X1944 MJPEG 15fps YUY2 3fps/2048X1536 MJPEG 20fps YUY2 3fps
1600X1200 MJPEG 20fps YUY2 10fps/1280X960 MJPEG 20fps YUY2 10fps
1024X768 MJPEG 30fps YUY2 10fps/800X600 MJPEG 30fps YUY2 30fps
640X480 MJPEG 30fps YUY2 30fp
Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision optional, can support IR Cut and IR board for IR night vision.
voltage DC 5V/current 150mA/work temperature DEGREES(-20~70)
Size: 38mm*38mm/32*32mm (other size cutomised)
Support OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4. 8 or later
