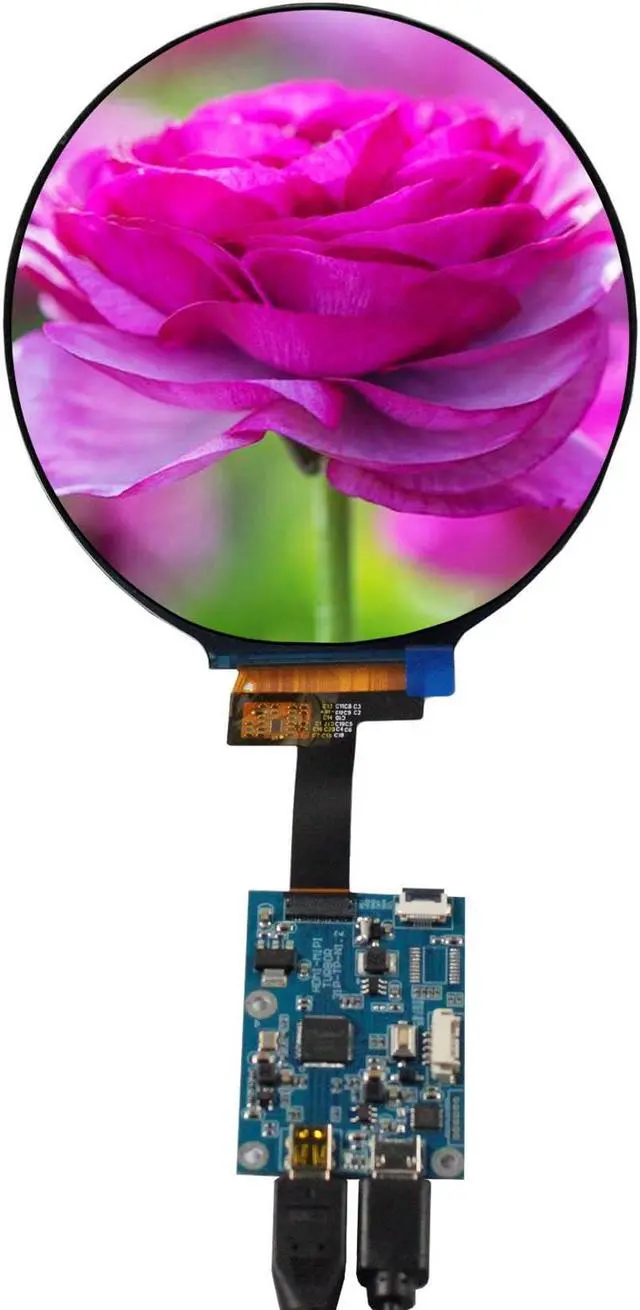

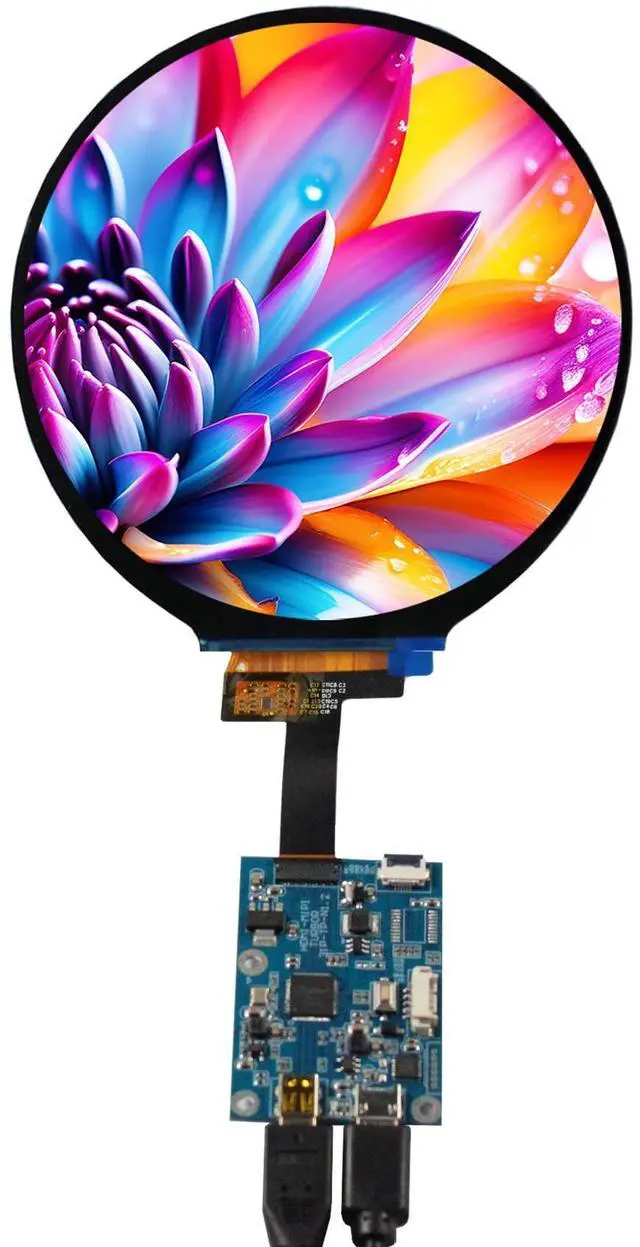

FanyiTek 4" 4 inch 720x720 300nit IPS MIPI LCD Round Screen and Micro HDMI Controller Board 31 pins,for AIDA64 CPU GPU Computer PC Case
- [(Round MIPI screen)] IPS full viewing angle,Great resolution 720x720,outline size:105.6x109.87x2.13(WxHxD)mm,display area:101.52x 101.52(WxH)mm,300nit high brightness ,WLED backlight ,input voltage: 2.8V .
- [(Micro controller board)] Video input :micro HDMI port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
- [(Input Power)] 5Vdc More than 1A,Pls prepare it seperately .

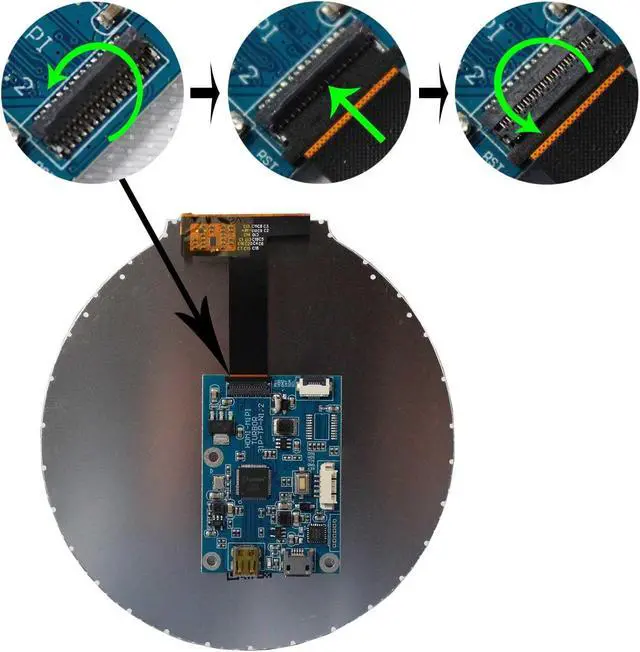

- [(Plug and play)] Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
- [(Packing lists)] 1x Micro HD LCD Board VS-TURBOR-04 ,1x4inch VS40016C31 720x720 LCD Screen,1x Mipi signal Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

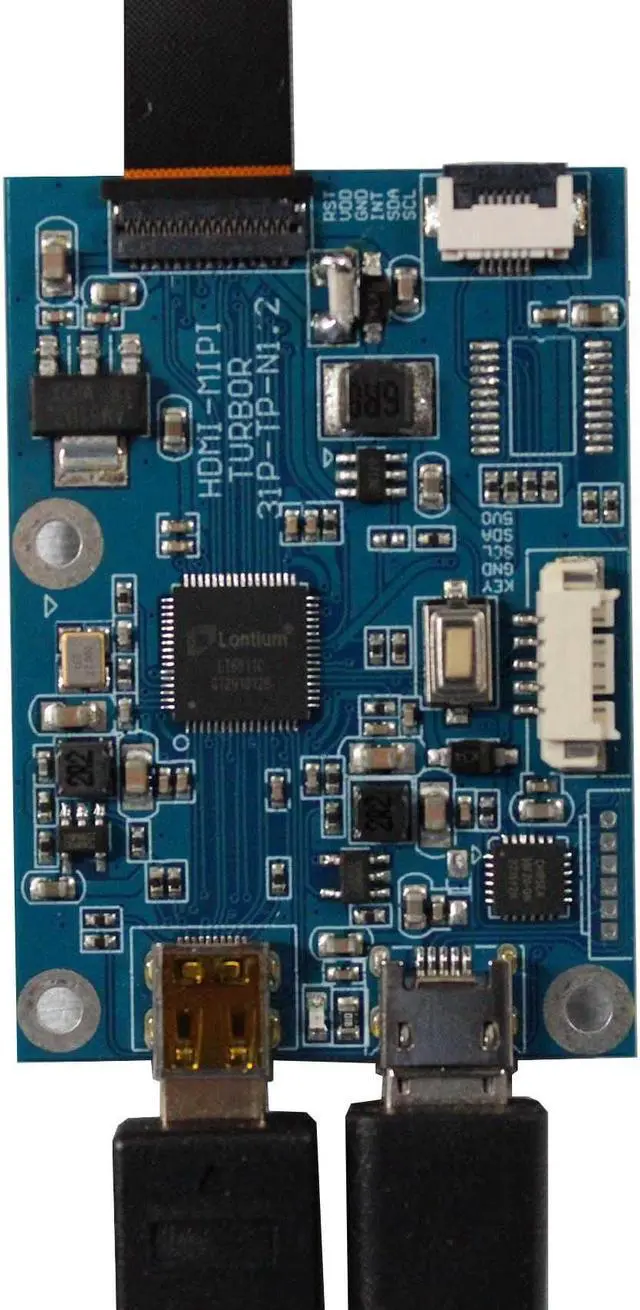

LCD Controller Board:
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Photoresistors Input Support Automatic brightness adjustment
Video Input: Micro HD-MI
HD-MI: Support HD-MI 1.4
Board Size: 50mm x 35mm x 5mm
4" VS40016C31 720X720 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 720 (RGB) x720
Outline Size 105.6 x 109.87 x 2.13 (WxHxD) mm
Display Area 101.52 x 101.52 (WxH) mm
Brightness 300 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. )
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi (1ch, 8-bit), 31 pins
Backlight WLED
Input Voltage 2.8V (Typ. )

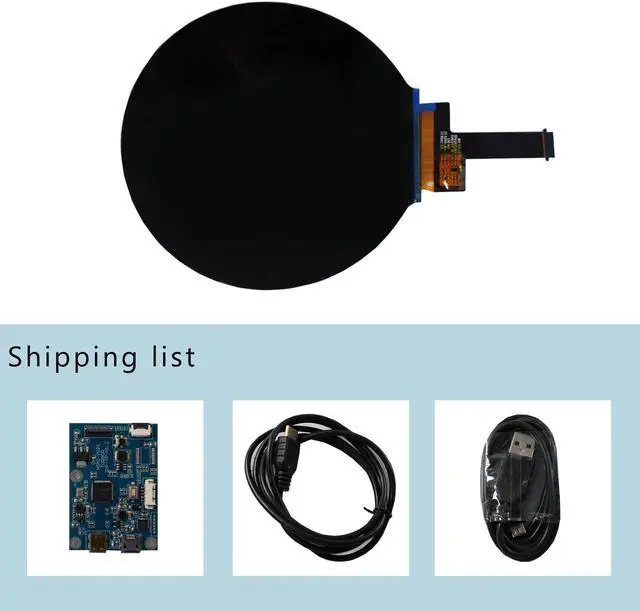

Packing list:
1x Micro HD LCD Board for 31Pin VS-TURBOR-04
1x4inch VS40016C31 720x720 LCD Screen
1x mipi signal Cable
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Photoresistors Input Support Automatic brightness adjustment
Video Input: Micro HD-MI
HD-MI: Support HD-MI 1.4
Board Size: 50mm x 35mm x 5mm
4" VS40016C31 720X720 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 720 (RGB) x720
Outline Size 105.6 x 109.87 x 2.13 (WxHxD) mm
Display Area 101.52 x 101.52 (WxH) mm
Brightness 300 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. )
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi (1ch, 8-bit), 31 pins
Backlight WLED
Input Voltage 2.8V (Typ. )
Packing list:
1x Micro HD LCD Board for 31Pin VS-TURBOR-04
1x4inch VS40016C31 720x720 LCD Screen
1x mipi signal Cable
