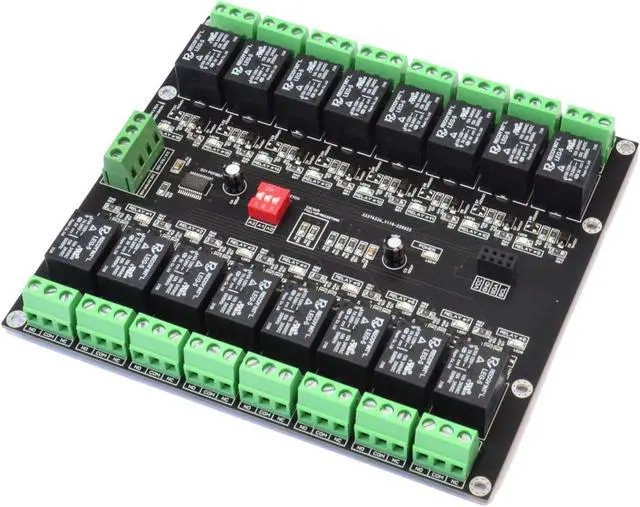

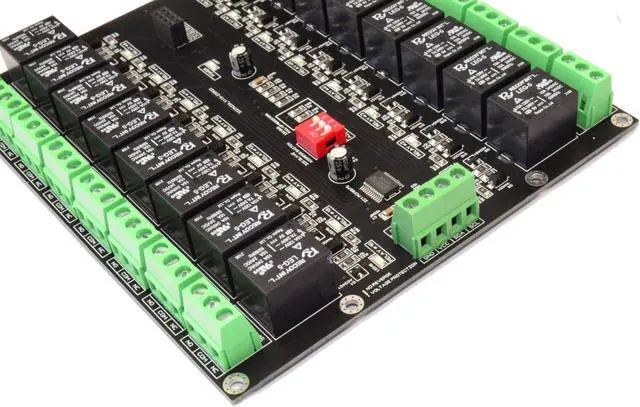

16 Channel I2C Interface Electromagnetic Relay Module for Arduino Raspberry 3.3V 5.0V Maximum Current per Relay - 10A Peak On Board LED Indicator with PCF8575 chip
- The module contains an PCF8575 chip
- Each board can be assigned an I2C address between 0x20...0x27 by the DIP switch
- Relay operation time 8 ms max
- LEDs indicators for each electromagnetic relay channel
- Relay expected life Mechanical - 10,000,000 operations min.and also Relay expected life Electrical - 100,000 operations min. at rated load
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Board comes fully assembled!
PCB board dimension 135mm x 150mm
Operation DC voltage - 3.3V and 5.0V
Maximum current @ 5.0V - 1500mA
Maximum current per relay - 5A... 10A @ different voltages

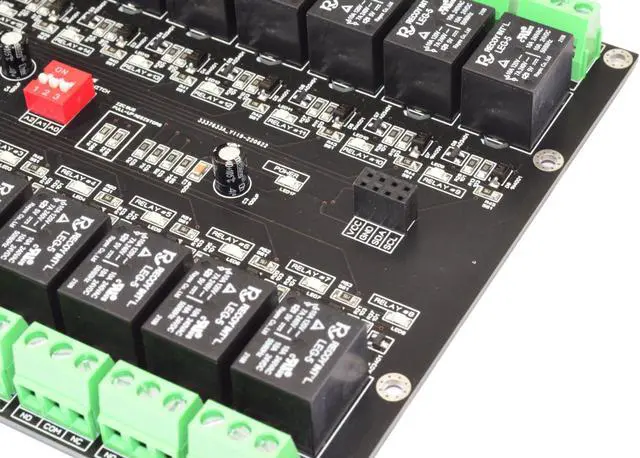

LEDs indicators for each electromagnetic relay channel
Relays with SPDT switch contacts: Normally Open, Common, Normally Closed
Relay contact resistance 100 milliohms max. ( initial value )
Relay insulation resistance 100 MOhm min. (DC 500V)
Relay operation time 8 ms max
Relay release time 5ms max
Relay dielectric strength 750 VAC, 50/60Hz between contact
Relay dielectric strength 1, 500 VAC, 50/60Hz between all elements
Relay expected life Mechanical - 10, 000, 000 operations min.
Relay expected life Electrical - 100, 000 operations min. at rated load
Working temperature range - 25 C ~ + 80 C

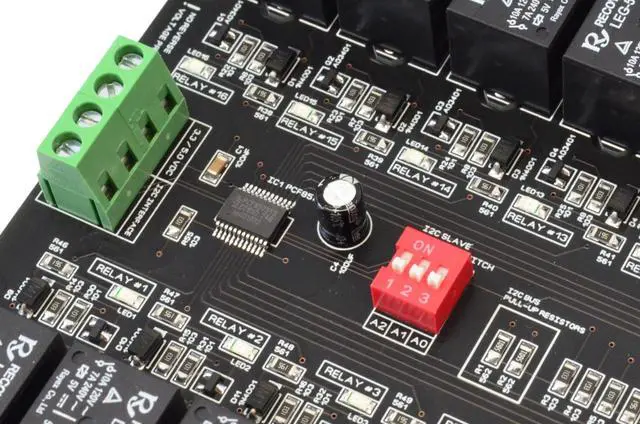

Each board can be assigned an I2C address between 0x20... 0x27 by the DIP switch
The module contains an PCF8575 chip
The logic power supply voltage should match the voltage levels on the I2C bus. The SDA and SCL lines are pulled up to VDD with 5.6 k resistors on the relay module.
Up to 8 boards can be connected to each I2C bus. 8 x 16 = 128 relays can be controlled via 4 wires!
Depending on the relay stock available, the relay manufacturer may differ
For stable operation with 3.3V, an I2C logic level shifter should be used
PCB board dimension 135mm x 150mm
Operation DC voltage - 3.3V and 5.0V
Maximum current @ 5.0V - 1500mA
Maximum current per relay - 5A... 10A @ different voltages
LEDs indicators for each electromagnetic relay channel
Relays with SPDT switch contacts: Normally Open, Common, Normally Closed
Relay contact resistance 100 milliohms max. ( initial value )
Relay insulation resistance 100 MOhm min. (DC 500V)
Relay operation time 8 ms max
Relay release time 5ms max
Relay dielectric strength 750 VAC, 50/60Hz between contact
Relay dielectric strength 1, 500 VAC, 50/60Hz between all elements
Relay expected life Mechanical - 10, 000, 000 operations min.
Relay expected life Electrical - 100, 000 operations min. at rated load
Working temperature range - 25 C ~ + 80 C
Each board can be assigned an I2C address between 0x20... 0x27 by the DIP switch
The module contains an PCF8575 chip
The logic power supply voltage should match the voltage levels on the I2C bus. The SDA and SCL lines are pulled up to VDD with 5.6 k resistors on the relay module.
Up to 8 boards can be connected to each I2C bus. 8 x 16 = 128 relays can be controlled via 4 wires!
Depending on the relay stock available, the relay manufacturer may differ
For stable operation with 3.3V, an I2C logic level shifter should be used
