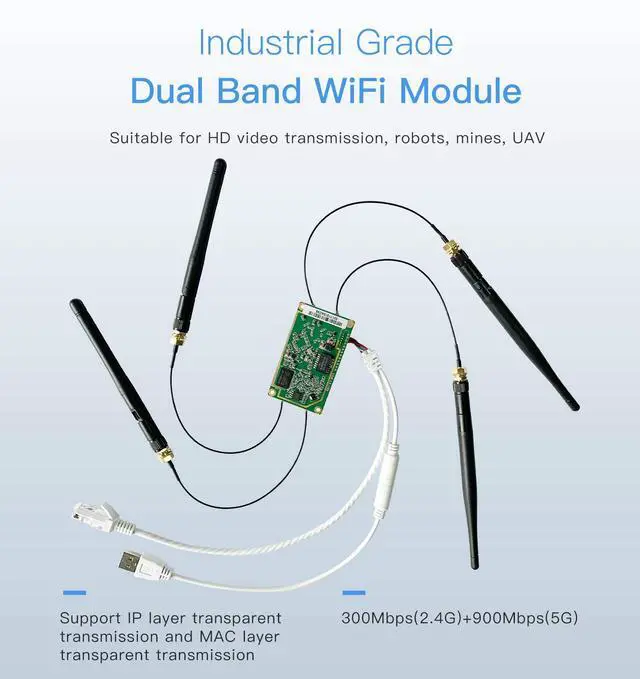

VONETS VM5G WiFi Module Dual Band 2.4G+5G AC1200 Industrial High Power Wireless Bridge Ethernet WiFi Hotspot Extender Repeater RJ45 Adapter DIY Engineering Network Device with 4 Antennas

Function Features:
1. Support router and bridge repeater mode. In router mode, support WiFi WAN access and WAN/LAN exchange; support WAN/LAN switching of wired network ports;
2. The output power of the power supply is not less than 10W (typical power supply 5V/2A, ripple less than 100mV);
3. Support WiFi hotspot automatic reconnection, two
hotspot matching methods: Full match authentication mode, SSID and password authentication mode;
4. WiFi hotspot memory, maximum memory 10 hotspots. Support connecting more than 20pcs WiFi terminal at the same time;
5. Support SSA protocol, built-in hot spot signal strength detection and reporting function to realize WiFi mobile positioning.
6. Support IP layer transparent transmission and MAC layer transparent transmission two bridge modes to meet various bridge applications.
Hardware Features:

1. Support wide voltage DC5-15V power supply.
Module power supply: 1.3W -- 3.75W.

2. The module built-in LNA, the receiving sensitivity is 14dBi

3. Provide a TTL level UART data transparent transmission interface.

4.
Work Environment temperature: -20 to 50.

Application Method:
WiFi Repeater (WiFi signal repeater), can extend WiFi transmission distance;
WiFi Bridge: IP layer transparent transmission, MAC layer transparent transmission;
WiFi access point (AP);

Hardware Specification:
External interface: A USB/DC power cable;
A set of 10/100m adaptive Ethernet cable;
Reset button: Long press 5 seconds then release (During operation, the product can not be powered down, otherwise it may cause damage to the product. )
LED Status instruction:
Ethernet port status light (Yellow);
2.4G WiFi connection status light (Blue);
5G WiFi connection status light (Green);

Package:

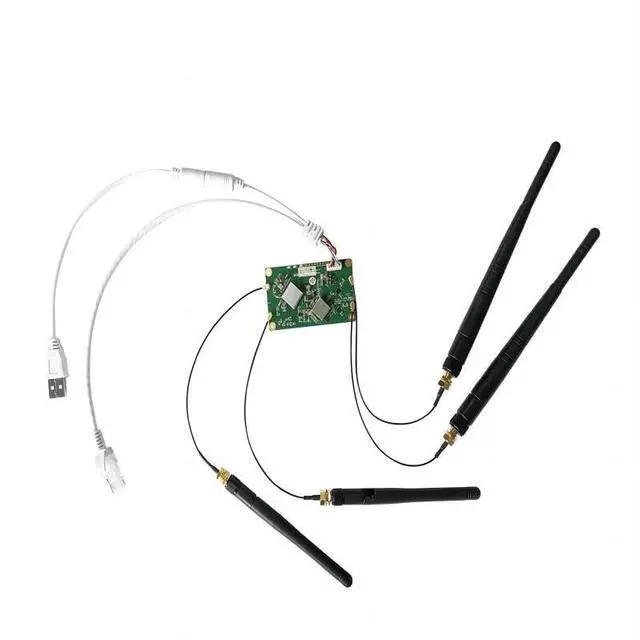

1* VM5G WiFi Module
2* 2.4GH z external antennas
2* 5GHz external antennas
1* User manual

1*Retail box
