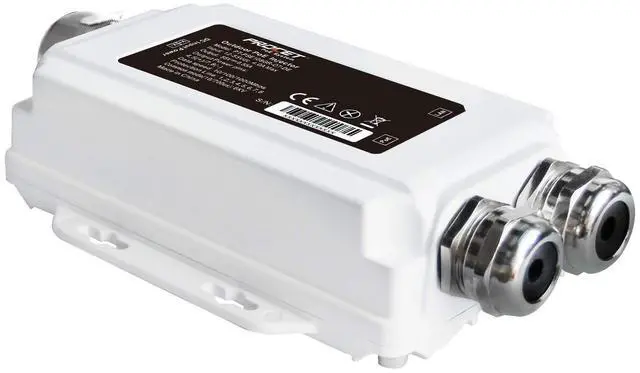

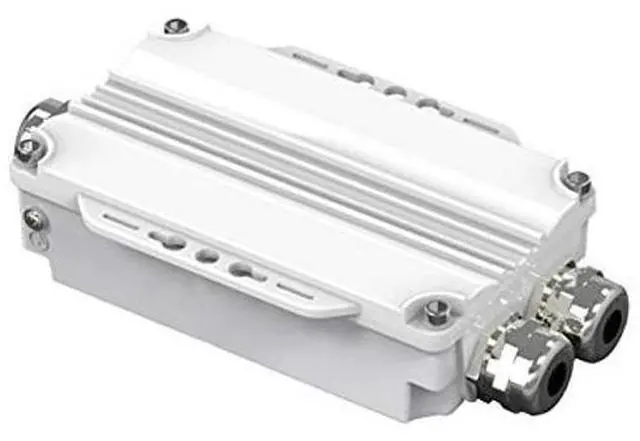

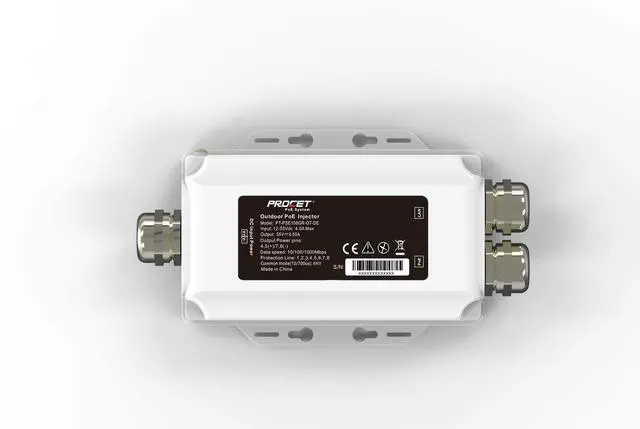

PROCET Gigabit PoE Injector Outdoor PoE Power Injector Adapter 30W IEEE802.3AT, 6KV Surge Protection, Aluminum IP67 Waterproof, Wide Temp -40 to 149 for IP Cameras, Wireless APs, Base Station

More and more people are cutting the cord and going solar, Solar to

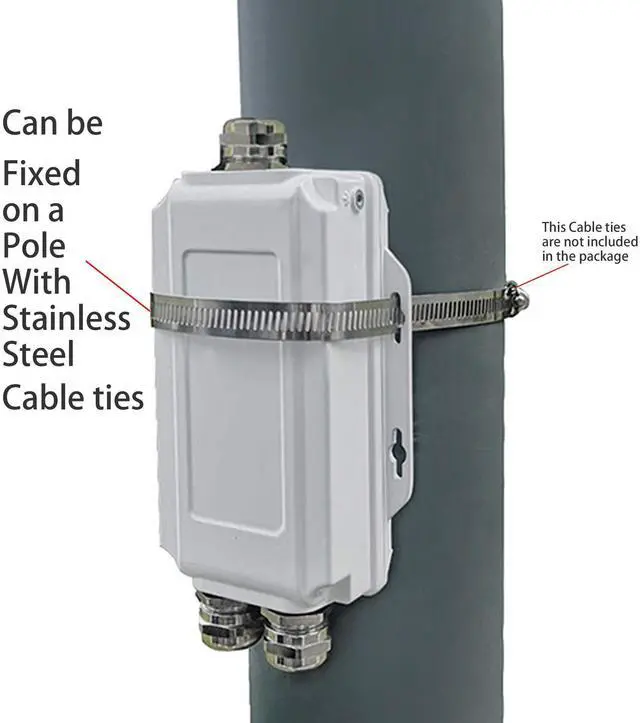

PoE+: Whether you have a remote PTZ Camera or Wifi, this injector can take a wide range of input power and deliver constant PoE+ with surge protection. An outdoor rated PoE injector/midspan specially designed for exterior, complex back haul and networking applications. Enclosed in an IP67 Reflective Aluminum case with a sealing that gasket passes tension, bearing, corrosion, and aging test for IP67 applications. The data rates is at 10/100/1000Mbps. The single output port delivers 55V, 0.55A power via 2 pair for remote PD with 6KV (10/700us) surge protection. It works with input voltage of 12-55Vdc makes it possible for solar application. The output voltage is a fixed one at 55 Volts. Wide temperature extend to -40 to +65. The output port equipped detecting chip which is compliant with IEEE 802.3 af/at can power up wireless APs, IP cameras, Microwave radio, base stations and other power Ethernet backhaul devices. For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with mounting holes, no need to open the equipment. With Stainless Steel Cable ties can be fixed on a Pole.

-
Input: 12-55Vdc 4.0A -
Output: 55Vdc 550mA -
Power Pins: 4/5(+), 7/8(-) Mode B -
Data Speed: 10/100/1000Mbps - Full compliant with IEEE 802.3 af/at - PoE Surge Protection 6KV, Protected
line: 1, 2, 3, 4, 5, 6, 7, 8 -
Operating Temperature: -40 to 65 -
Operating Humidity: 20% to 80%, non-condensation -
Storage Temperature: -40 to 85 -
Storage Humidity: 10% to 95%, non-condensation -
Operating Altitude: up to 5000meters -
Case: Aluminum -
Color: White -
Mounting: Wall-mounted/Pole-mounted -
IP Rated: IP67 -
Size: 187mm X 104.79 mm X 45mm -
Weight: 565g - Packing.: Manual x 1
