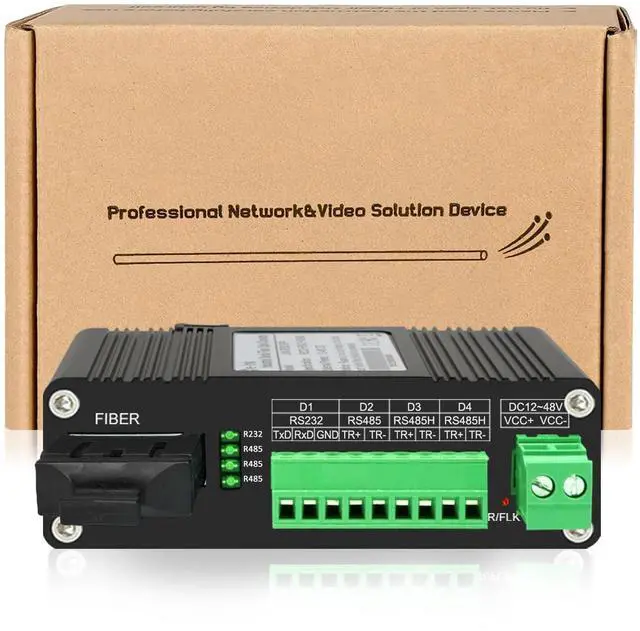

Lcantve Industrial Serial to Fiber Converter RS232 RS485 RS422 Optic Modem, Bidirectional SC Port Serial Fiber Converter 20KM Over 1310nm Single-Mode SC Fiber, DC12~48V Power Input

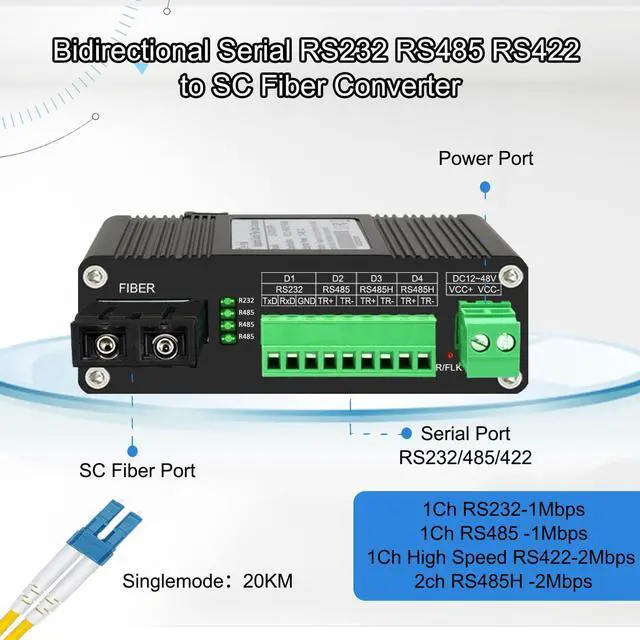

- 3-in-1 Serial Port----The serial optic modem has 1Ch RS232 (Full Duplex), 2Ch RS485 (Half Duplex), 1Ch RS422 (Full Duplex),which all support bi-directional transmission
- SC Port----The Serial to Fiber Converter applies to SC 1310nm single-mode fiber, which can transmit singal up to 20KM

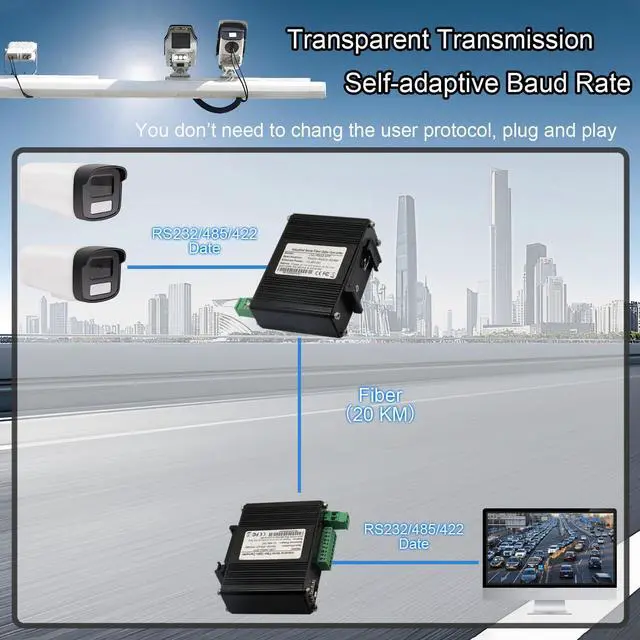

- Easy to Use----It supports transparent transmission, self-adaptive baud rate. You don't need to chang the user protocol, plug and play
- Din-Rail & Wall Mount Support----It has 35mm Din-rail mounting bracket and wall mount accessory

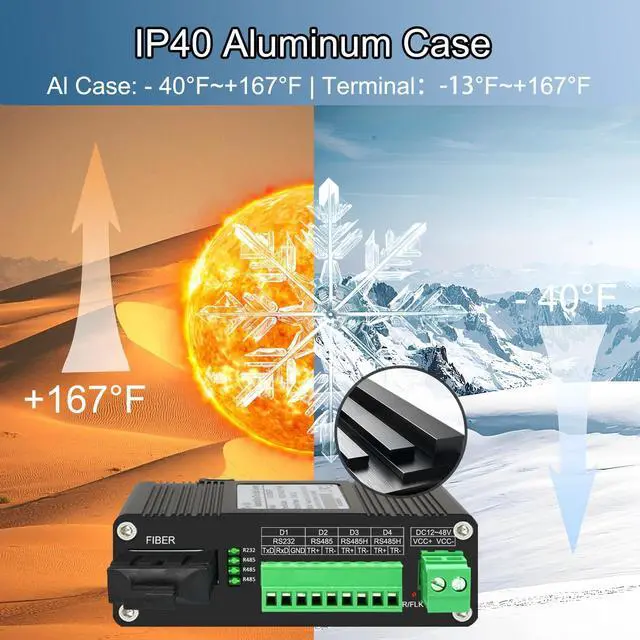

- IP40 Al Case---- It uses industrial grade protection design,having 6KV lighting protection and can work at wide range temperature -25degC to 80degC (-13degF to 176degF)
- Note!!!----The RS-232/RS-485/RS-422 serial fiber media converter must use in pairs, please order in 2pcs unless you only replace one side
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:

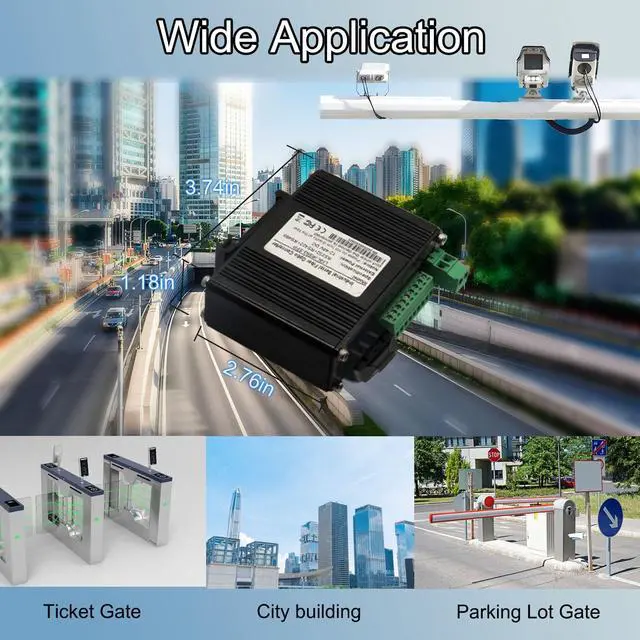

ZP-SC Series is an industrial-grade RS232/RS485/RS422 to fiber optic converter which extends the signal up to 20Km on single-mode SC fiber. It can be widely used in various industrial control, process control, Stage Lighting Control, and traffic control occasions. ZP-SC Series is easy to mount on a DIN rail or in distribution boxes.
Features:
* Plug-and-play, hot pluggable
* Extends Bi-directional RS-232/RS-485/RS-422 up to 20Km on 1310nm single-mode SC fiber
* EIA /TIA standard RS232/485/422, 0-115, 200 Baud rate
* Serial data is fully transparent, baud rate is self-adaptive, no setting is required
* The high-speed serial data can be used for DMX512 communication in Stage Lighting Control
* Support DIN-Rail & Wall-mount installation.
* Built-in surge and static protection
* Diagnostic and unit indicator LEDs
Specifacation:
Model: ZP-SC
Series Fiber Connector: SC
Standard Fiber Distance: 20KM
Serial Interface: Industrial
Terminal Signal Ports: 1Ch RS232 - 1Mbps; 1Ch R485 - 1Mbps; 2Ch RS485H- 2Mbps; 2Ch RS485H can be grouped into 1Ch
High Speed RS422 Standard: EIA /TIA RS232/485/422 Serial Distance RS 232: 15 meters, RS485/ 422: 1000 meters
Rate Max: 2Mbps
RS-232: TXD, RXD, GND -
Bi-directional RS-485: D+, D-, GND -
Bi-directional Power Supply: DC12~48V
Power rate: <5W Operation Temperature: -13degC to +75degC Dimensions: 3.74(L)*2.76(W)*1.14(H) Inch Weight: 0.25kg/pcs
Package:
Industrial SC Serial to Fiber Converter x 1
L-shaped wall mount bracket x 1
ZP-SC Series is an industrial-grade RS232/RS485/RS422 to fiber optic converter which extends the signal up to 20Km on single-mode SC fiber. It can be widely used in various industrial control, process control, Stage Lighting Control, and traffic control occasions. ZP-SC Series is easy to mount on a DIN rail or in distribution boxes.
Features:
* Plug-and-play, hot pluggable
* Extends Bi-directional RS-232/RS-485/RS-422 up to 20Km on 1310nm single-mode SC fiber
* EIA /TIA standard RS232/485/422, 0-115, 200 Baud rate
* Serial data is fully transparent, baud rate is self-adaptive, no setting is required
* The high-speed serial data can be used for DMX512 communication in Stage Lighting Control
* Support DIN-Rail & Wall-mount installation.
* Built-in surge and static protection
* Diagnostic and unit indicator LEDs
Specifacation:
Model: ZP-SC
Series Fiber Connector: SC
Standard Fiber Distance: 20KM
Serial Interface: Industrial
Terminal Signal Ports: 1Ch RS232 - 1Mbps; 1Ch R485 - 1Mbps; 2Ch RS485H- 2Mbps; 2Ch RS485H can be grouped into 1Ch
High Speed RS422 Standard: EIA /TIA RS232/485/422 Serial Distance RS 232: 15 meters, RS485/ 422: 1000 meters
Rate Max: 2Mbps
RS-232: TXD, RXD, GND -
Bi-directional RS-485: D+, D-, GND -
Bi-directional Power Supply: DC12~48V
Power rate: <5W Operation Temperature: -13degC to +75degC Dimensions: 3.74(L)*2.76(W)*1.14(H) Inch Weight: 0.25kg/pcs
Package:
Industrial SC Serial to Fiber Converter x 1
L-shaped wall mount bracket x 1
