CompuPort 5G Multiband LTE Omni Antenna 5dBi Outdoor Weatherproof Frequency: 600-960/1710-6000MHz with N Female Connector
- CompuPort Weatherproof multiband 3G / 4G and 5G LTE omnidirectional antenna, is designed for all 3G, 4G and 5G frequency bands used
- CompuPort antenna can therefore be used universally and increases the range, the signal strength, and the transmission rate of your data connection through the performance gain of up to 5dBi

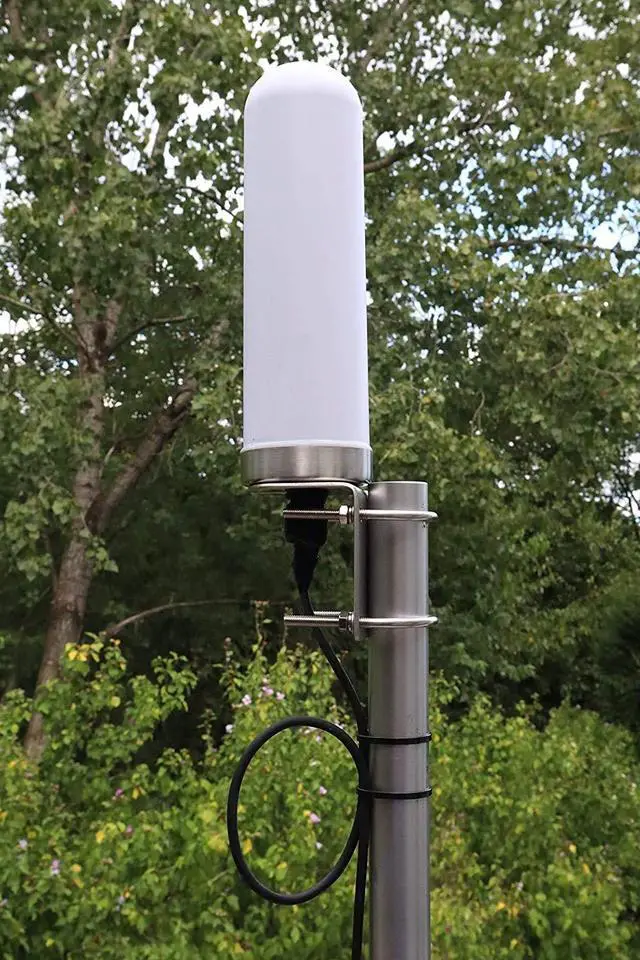

- Due to the omnidirectional characteristics of the LTE / 5G antenna, it does not have to be aligned separately but can be easily installed. The antenna is suitable for outdoor use and can therefore easily be used as a 5G outdoor antenna. A mounting set is included in the scope of delivery.

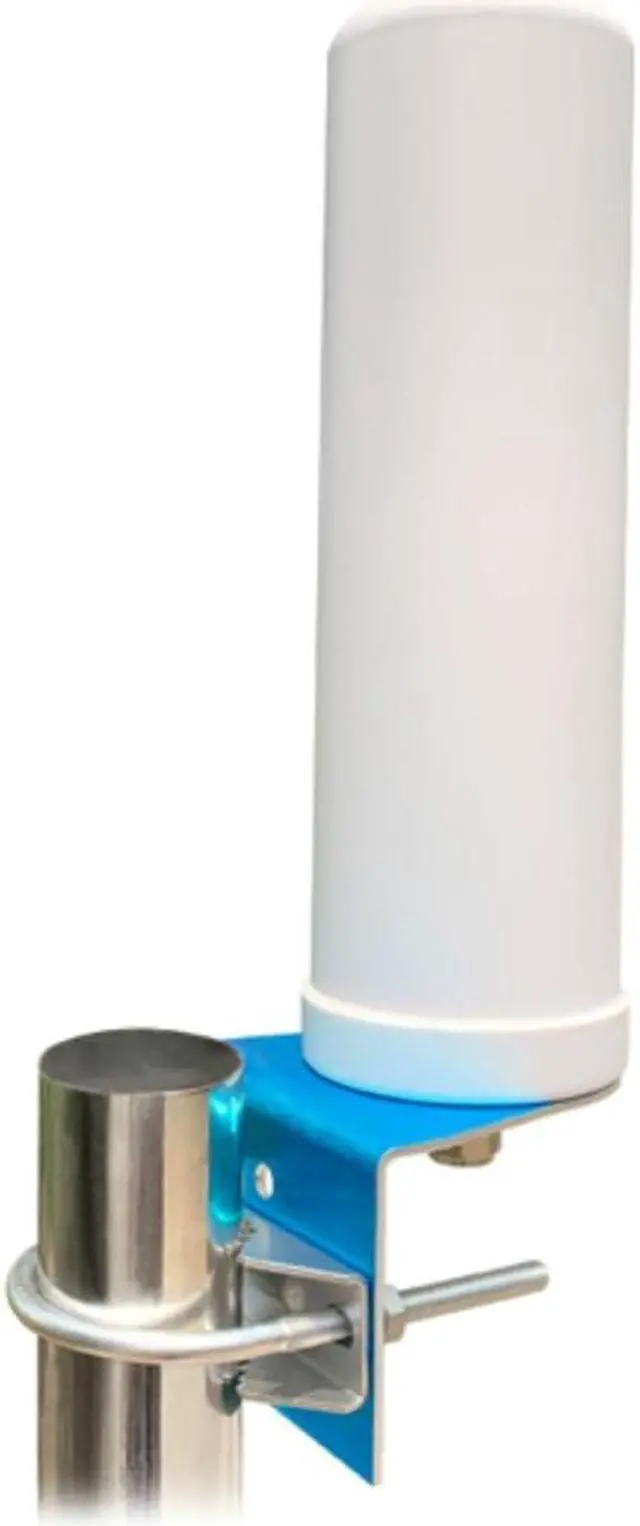

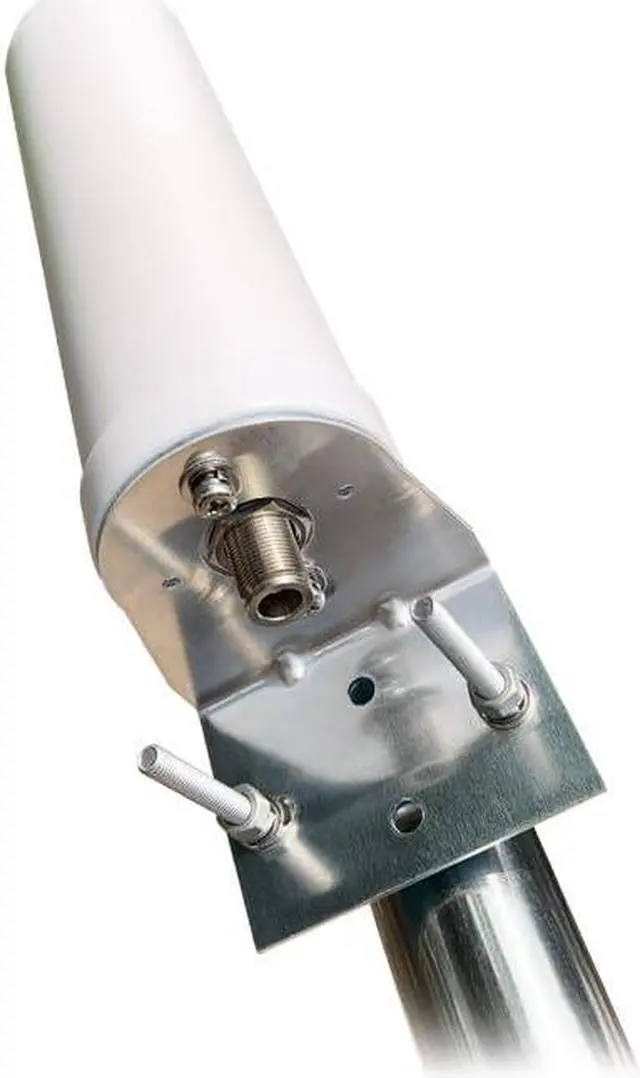

- The antenna can be attached to a mast (diameter: 30mm - 50mm) or a corresponding bracket using two pipe clamps. Optionally, you can order an antenna cable from us to connect to your LTE or 5G router and a window bushing to match the antenna
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Electrical:
Frequency Range: 600-960/1710-6000MHz
Gain: 3/5dBi
V. S. W.
R: <=2.0
Radiation: Omni-Direction
Horizontal Beamwidth: 360deg
Vertical Beamwidth: 18deg
Polarization: Vertical
Lightning Protection: DC Grounded
Maximum Input Power: 100W
Impedance: 50O
Connector: N Female
Antenna Radome Material: ABS
Mount way: Pole
Diameter of Installation Pole: O30~O50mm
Mechanical
Dimensions: Ph63x220mm
Weight: 608g
Operating Temperature: -40 to+70
Rated wind velocity(m/s): 60m/s
RoHS Compliant: YES
Frequency Range: 600-960/1710-6000MHz
Gain: 3/5dBi
V. S. W.
R: <=2.0
Radiation: Omni-Direction
Horizontal Beamwidth: 360deg
Vertical Beamwidth: 18deg
Polarization: Vertical
Lightning Protection: DC Grounded
Maximum Input Power: 100W
Impedance: 50O
Connector: N Female
Antenna Radome Material: ABS
Mount way: Pole
Diameter of Installation Pole: O30~O50mm
Mechanical
Dimensions: Ph63x220mm
Weight: 608g
Operating Temperature: -40 to+70
Rated wind velocity(m/s): 60m/s
RoHS Compliant: YES
