VSDISPLAY 12.3 Inch Touchscreen IPS Stretched Bar LCD 1920x720 Monitor for Secondary Display,with HD-MI VGA AV Controller Board VS-TY2662-V1
- [(12.3 Inch Stretched Bar LCD)] 12.3'' FHD 1920X720 touchscreen monitor;Aspect Ratio:8:3;Brightness 850 cd/m2 (Typ.);Contrast Ratio 1000:1 (Typ.) (TM)
- [(FHD IPS Panel)] Viewing Angle 85/85/85/85 (Typ.)(CR>=10) [Left / Right / Up / Down],178deg widely viewing angle bring better visual experiment
- [(Plug and Play)] Supports HD-MI VGA AV video input
- [(Touch Screen)] 12.3 inch LCD screen comes with capacitive touch panel,makes you convenient to operate on screen
- [(Widely Application)] For DIY extend display,for laptop/computer/pc extra monitoring display
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

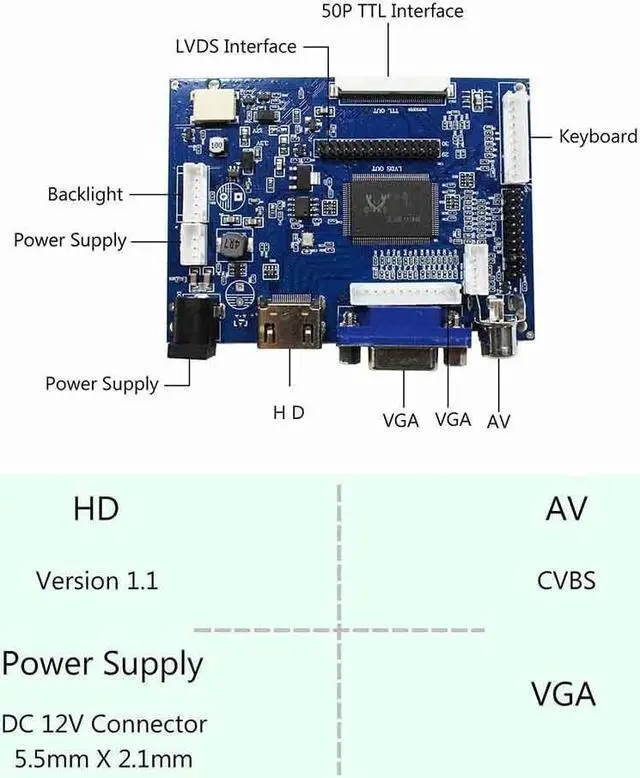

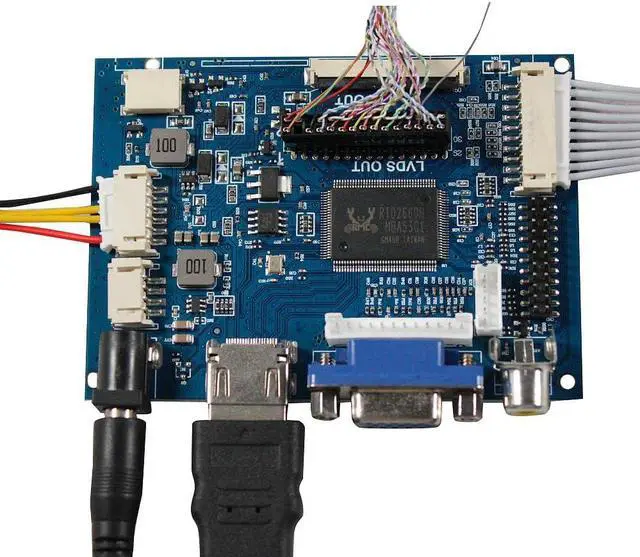

LCD Controller Board:
HD-MI VGA AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~ 10.1 inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI VGA AV
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm
12.3"VS 123IA-01D 1920X720 Touch LCD Screen
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 1920 (RGB) x720
Outline Size 308.1 x 130x 18.6 (HxVxD) mm
Display Area 292.032 x 109.512 (HxV) mm
Brightness 850 cd/m2 (Typ. )
Contrast Ratio 1000:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector, 50 pins
Backlight WLED
Input Voltage 3.3V (Typ. )

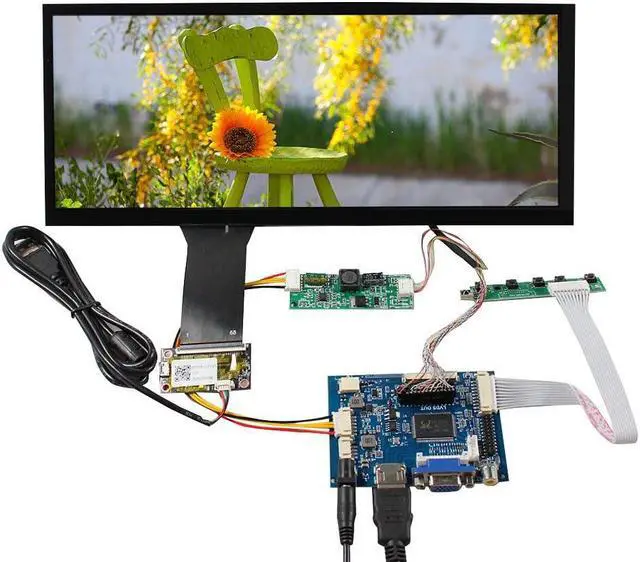

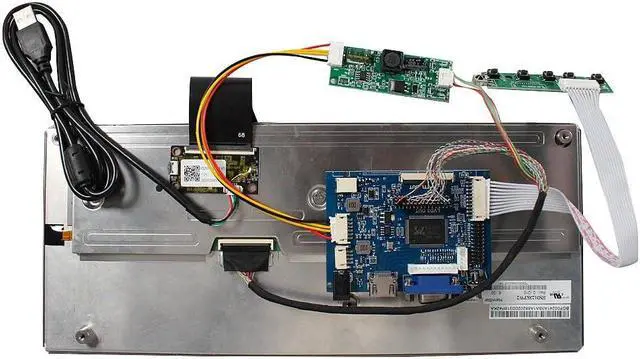

Packing list:
1x HD-MI + VGA + AV LCD Controller Board VS-TY2662-V1
1x 12.3" VS123IA-01D 1920x720 Capacitive Touch LCD Screen
1x LVDS Cable
1x Keyboard With Cable
HD-MI VGA AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~ 10.1 inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI VGA AV
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm
12.3"VS 123IA-01D 1920X720 Touch LCD Screen
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 1920 (RGB) x720
Outline Size 308.1 x 130x 18.6 (HxVxD) mm
Display Area 292.032 x 109.512 (HxV) mm
Brightness 850 cd/m2 (Typ. )
Contrast Ratio 1000:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector, 50 pins
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1x HD-MI + VGA + AV LCD Controller Board VS-TY2662-V1
1x 12.3" VS123IA-01D 1920x720 Capacitive Touch LCD Screen
1x LVDS Cable
1x Keyboard With Cable
