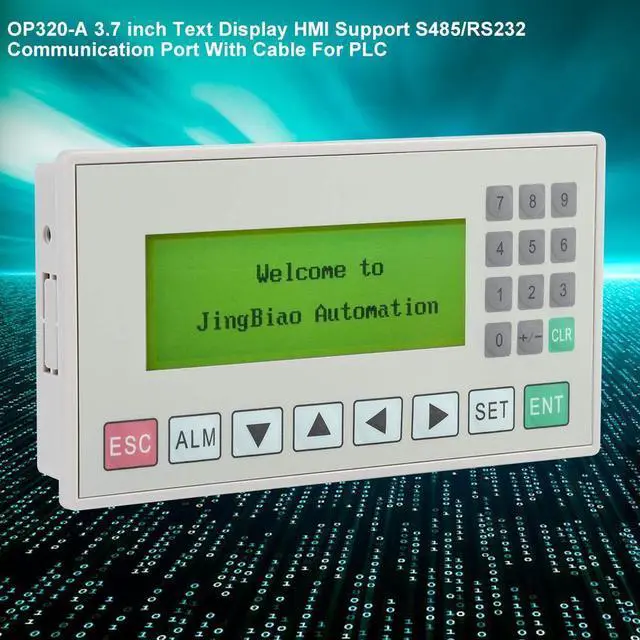

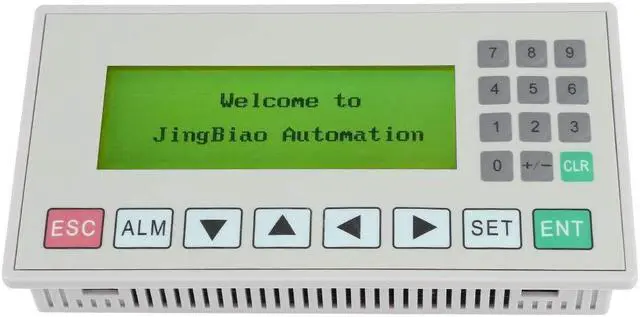

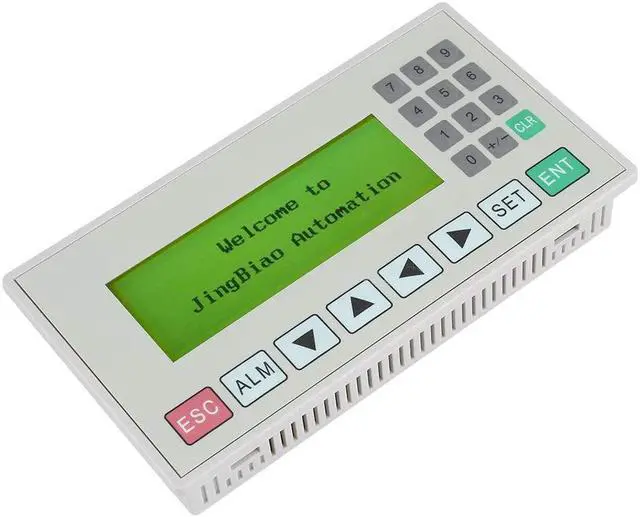

Text Display 3.7 inch, Text Display S485/RS232 Support S485/RS232 Communication Port with Cable PLC Text Display
- [(OP320-A text display)] - OP320-A is a small human-machine interface mainly used with various types of PLC (or intelligent controllers with communication interface).

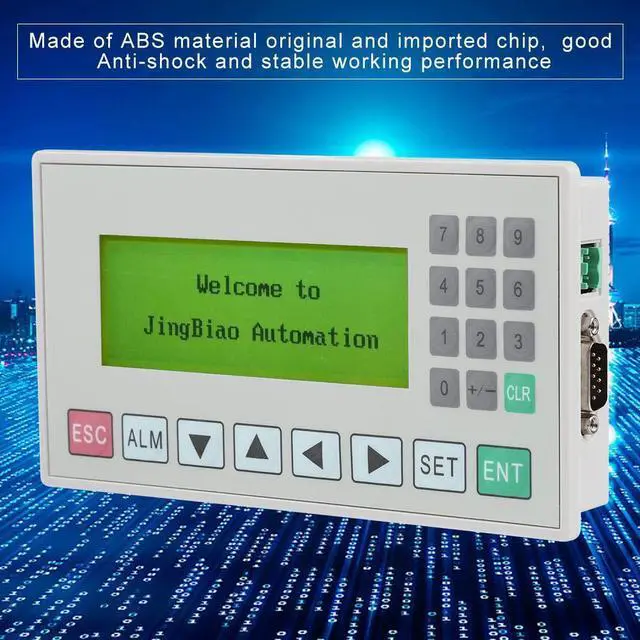

- [(High quality text display)] - Made of ABS material original and imported chip, good anti-shock and stable work performance.
- [(Ease of Use)] - Communication log and screen data are downloaded to the display without a PLC writing a communication program.
- [(Instructions)] - Use the editing software TP200CN to create pictures on the computer, enter Chinese characters freely and set the PLC address. Use serial communication to download the screen.
- [(Application Principle)] - Monitor and change the values and status of the internal registers or relays of the PLC in the form of text or indicator light, so that the operator can control the devices freely.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Model: OP320 - A
Display size: 3.7 inches
Display type: LCD screen
Display color: monochrome
Resolution: 192 x 64 pixels
Brightness: 60cd/m2
Processor: 8-bit processor
Memory: 64 KB Flash ROM
Input method: keyboard input
Communication port: COM1: PC RS232, PLC S485/RS232
Function button: 20 self-defined
Power off allowed: 20ms
Power supply: 12~24V (V) +-10% <150mA
Anti-interference test: voltage 1500v, p-p pulse cycle 1us, continuous 1S
Pressure test: 500vAC 1 min
Insulation: >10MO
Shockproof test: 10~25Hz
grade: IP65
Working temperature: 0 ~ 50
Working environment humidity: 20~90%RH
Storage temperature: d-20 ~70
Shell material: engineering plastics
Display size: 101*36mm/4* 1.4 in
Mounting hole size: 165*86mm/ 6.5 * 3.4 in
Size: 172*94*30mm/ 6.8 * 3.7 * 1.2 in
Weight: Approx. 338g/ 11.9 oz

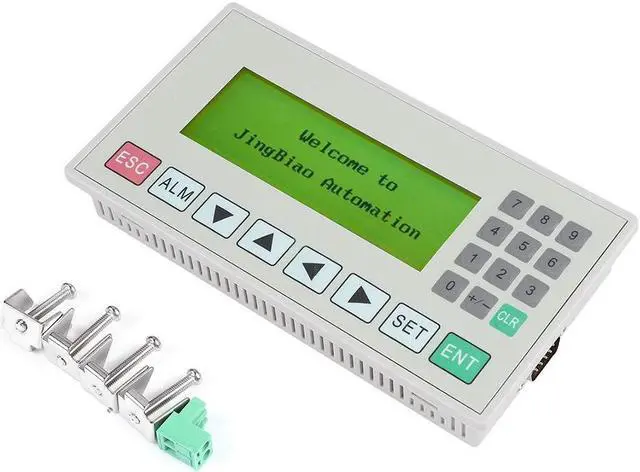

Package list:
1 x Text Display
1 set x installation accessories
Model: OP320 - A
Display size: 3.7 inches
Display type: LCD screen
Display color: monochrome
Resolution: 192 x 64 pixels
Brightness: 60cd/m2
Processor: 8-bit processor
Memory: 64 KB Flash ROM
Input method: keyboard input
Communication port: COM1: PC RS232, PLC S485/RS232
Function button: 20 self-defined
Power off allowed: 20ms
Power supply: 12~24V (V) +-10% <150mA
Anti-interference test: voltage 1500v, p-p pulse cycle 1us, continuous 1S
Pressure test: 500vAC 1 min
Insulation: >10MO
Shockproof test: 10~25Hz
grade: IP65
Working temperature: 0 ~ 50
Working environment humidity: 20~90%RH
Storage temperature: d-20 ~70
Shell material: engineering plastics
Display size: 101*36mm/4* 1.4 in
Mounting hole size: 165*86mm/ 6.5 * 3.4 in
Size: 172*94*30mm/ 6.8 * 3.7 * 1.2 in
Weight: Approx. 338g/ 11.9 oz
Package list:
1 x Text Display
1 set x installation accessories
