What are the connectivity options available on the youyeetoo R1?

The youyeetoo R1 offers a variety of connectivity options including Gigabit Ethernet, HDMI 2.1 supporting 8K@60Hz, Type-C, M.2 PCIe 2.0, and multiple USB ports, along with dual MIPI interfaces.

What processors and graphics capabilities does the youyeetoo R1 feature?

The youyeetoo R1 is powered by the Rockchip RK3588S, an 8-core processor with a clock speed of up to 2.4GHz, and includes a Mali-G610 MP4 GPU for graphics tasks.

Questions & Answers: youyeetoo R1 Single Board Computer - Rockchip RK3588S/6 Tops NPU & 8K Display/Support HDMI 2.1, SATA 3.0, 2280 SSD, USB Host x5, Onboard NFC - AIoT Control/NAS/SBC (4GB RAM+32GB eMMC)

double click image to zoom in

Shop All EZDIY-FAB Products | Visit JMDesign Store

youyeetoo R1 Single Board Computer - Rockchip RK3588S/6 Tops NPU & 8K Display/Support HDMI 2.1, SATA 3.0, 2280 SSD, USB Host x5, Onboard NFC - AIoT Control/NAS/SBC (4GB RAM+32GB eMMC)

The youyeetoo R1 is a Single Board Computer (SBC) designed by youyeetoo for the AIOT (AI of Things) market,supporting Debian 11 and Android systems, with features such as 5 USB interfaces, SATA 3.0, PCIe 2.0 interfaces, and support for 8K@60Hz video output.Feel free to ask a questions by click "youyeetoo" or mail am2#youyeetoo.com(# >>>@)

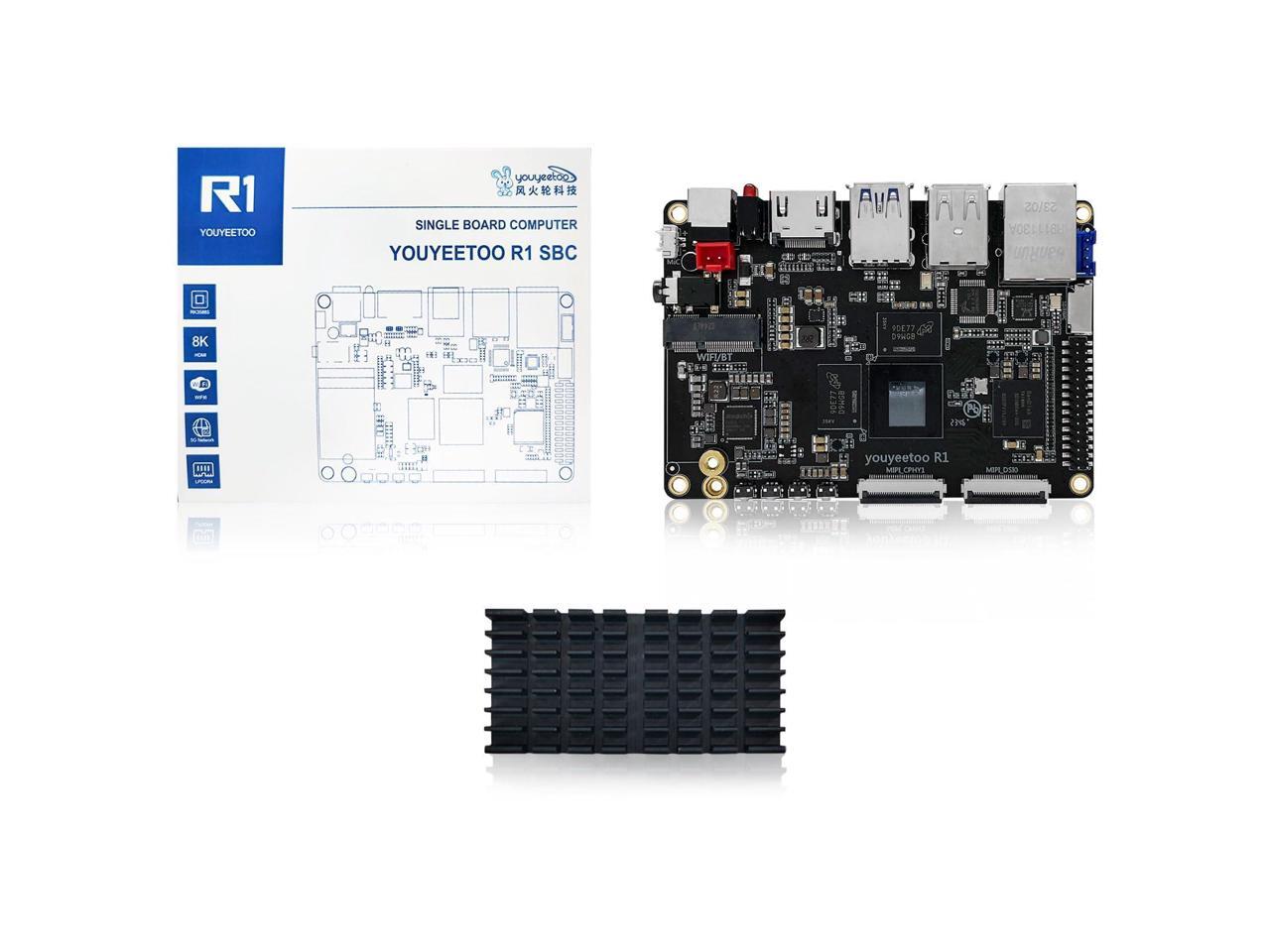

[Shipping List] youyeetoo R1 x1, Heat sink x1 , 12V3A DC Power Supply, Debug Module x1. The default system of the product is Android, you can change the system by USB-OTG or use SD card to start the system. Therefore, you need to prepare extra USB-A to A cable or SD card reader.

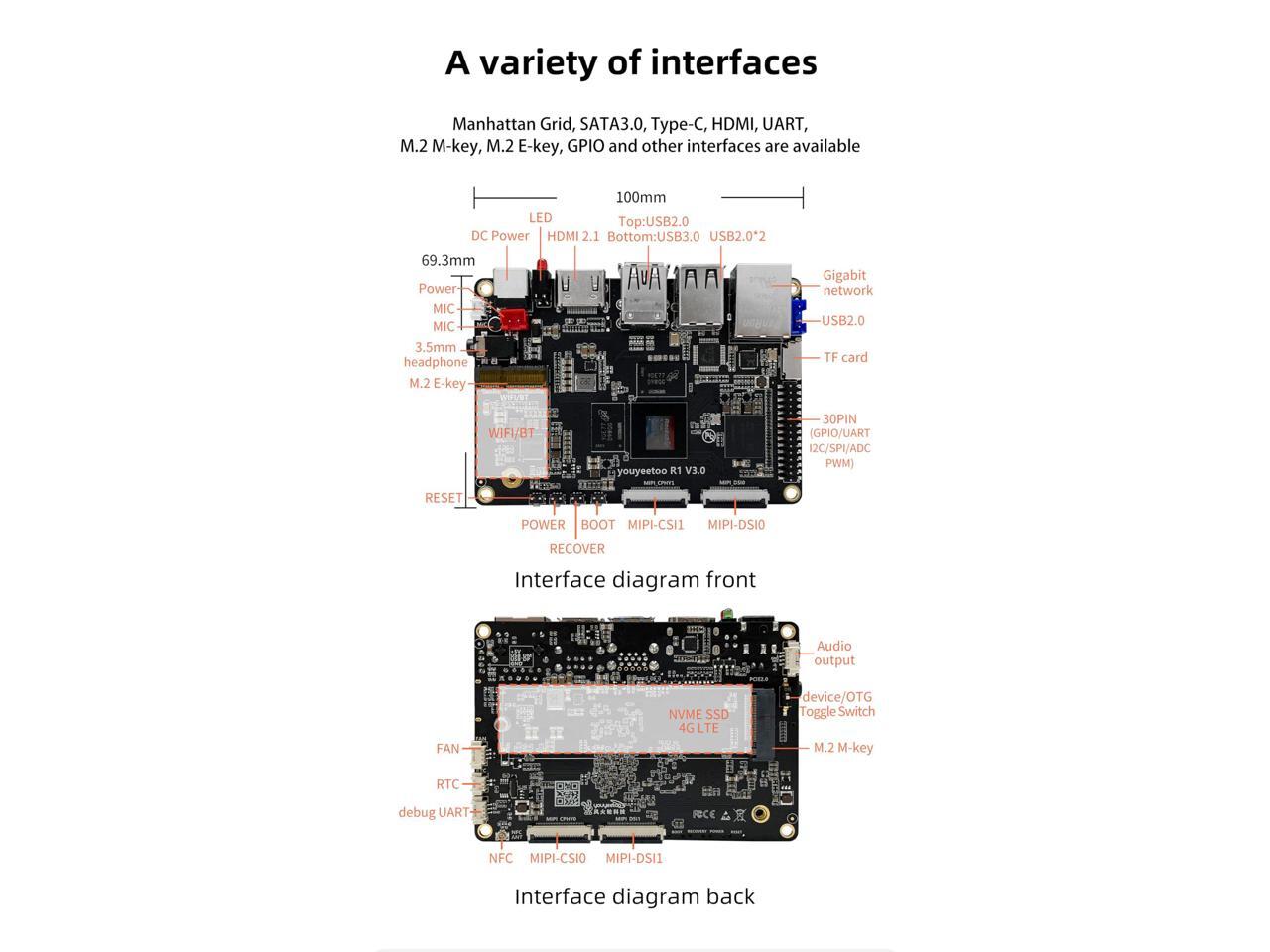

[Interface] Including Gigabit Ethernet, HDMI output (supports 8K), Type-C, M.2 PCIe2.0, dual MIPI cameras and screens, 3 * USB2.0, 1 * USB3.0, 4 * UART serial port, 2 * I2C, GPIO * 7, SPI * 1, ADC * 2, CAN * 1 and other common interfaces for the AIOT
[Online Wiki and Forum] We provide direct and effective support to our customers through the creation of a wi
