waveshare 5 inch Touchscreen Monitor for Raspberry Pi DSI LCD Screen 800x480 Display for Raspberry Pi 4B 3B+ 3A+ 3B 2B B+ A+ CM3/3+ Compatible with Raspbian Ubuntu Kali WIN10 IoT RetroPie

Overview
5 inch Capacitive Touch Display for Raspberry Pi, 800x480, TFT Wide Angle, MIPI DSI Interface

Features
5 inch TFT screen. 800x480 hardware resolution
Capacitive touch panel, support 5-point touch
Supports Pi 4B/3B+/3A+/3B/2B/B+/A+. Another adapter board is required for CM3/3+
DSI interface, refresh rate up to 60Hz.
Supports Raspbian/Ubuntu/Kali and WIN 10 IoT, driver-free.

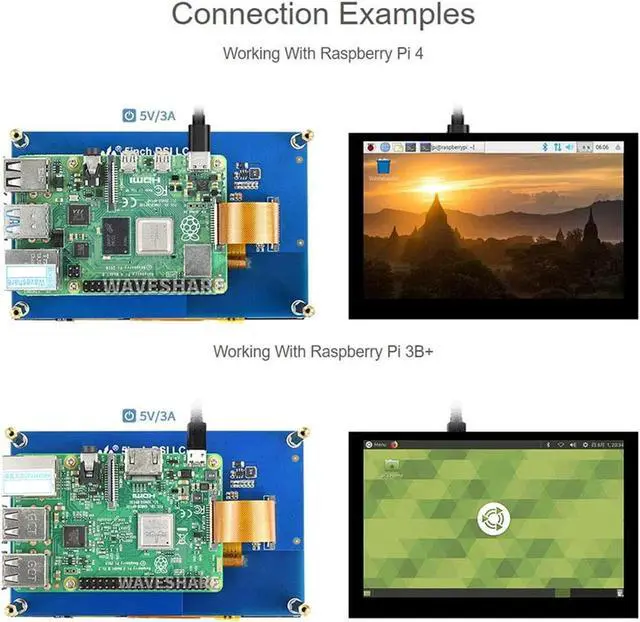

Working With Raspberry Pi
Hardware connection
Connect the DSI interface of 5inch DSI LCD to the DSI interface of Raspberry Pi. For easy use, you can fix the Raspberry Pi on the backside of the 5inch DSI LCD by screws.
Software setting
1) Download image (Raspbian, Ubuntu, Kali, or WIN10 IOT) from the Raspberry Pi website.
2) Download the compressed file to the PC, and unzip it to get the. img file.
3) Connect the TF card to the PC, use SDFormatter. exe software to format the TF card.
4) Open the Win32DiskImager. exe software, select the system image downloaded in step 2, and click'Write' to write the system image.
5) After the image has finished writing, save, and quit the TF card safely.
6) Power on the Raspberry Pi and wait for a few seconds until the LCD displays normally. And the touch function can also work after the system starts.
Note: When adjustable brightness via software, if the command reports the 'Permission denied' error, please switch to the 'root' user mode and execute it again.

Package Content
1x 5inch DSI LCD
1x FPC 15PIN 1.0 pitch 50mm (opposite sides)
1x Screws pack
