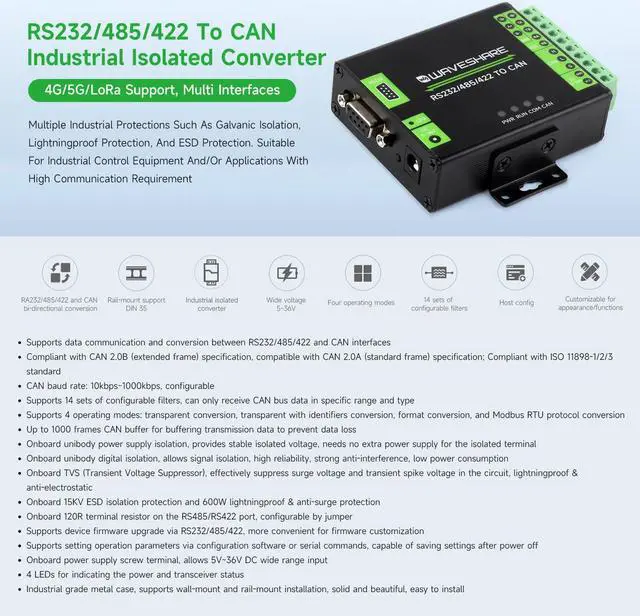

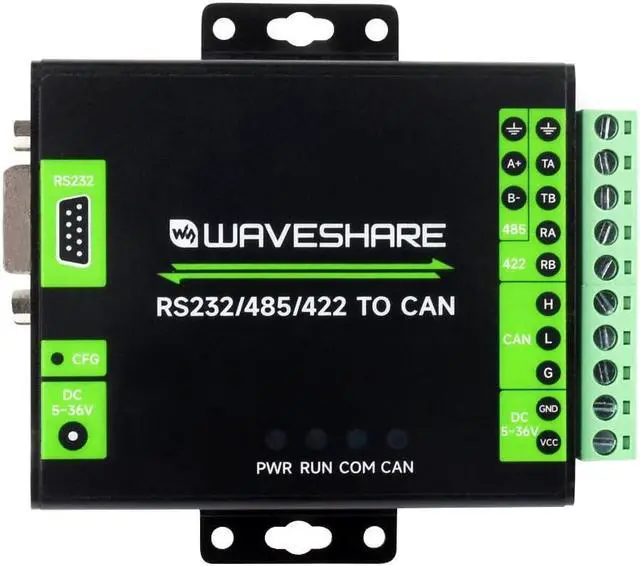

waveshare RS232/485/422 to CAN Industrial Isolated Converter, Supports Modbus RTU Conversion, Multiple Protection Circuits
- Supports data communication and conversion between RS232/485/422 and CAN interfaces
- Compliant with CAN 2.0B (extended frame) specification, compatible with CAN 2.0A (standard frame) specification; Compliant with ISO 11898-1/2/3 standard CAN baud rate: 10kbps~1000kbps, configurable
- Supports 14 sets of configurable filters, can only receive CAN bus data in specific range and type
- Supports 4 operating modes: transparent conversion, transparent with identifiers conversion, format conversion, and Modbus RTU protocol conversion
- Up to 1000 frames CAN buffer for buffering transmission data to prevent data loss Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in t
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
waveshare RS232/485/422 to CAN Industrial Isolated Converter, Supports Modbus RTU Conversion, Multiple Protection Circuits
