USB to RS485/422 Converter Onboard FT232RL and SP485EEN Chip, Galvanic Isolated Converter with Multiple Protection, Support Win11/10/8.1/8/7/XP, Mac, Linux, Android, WinCE, etc

Overview

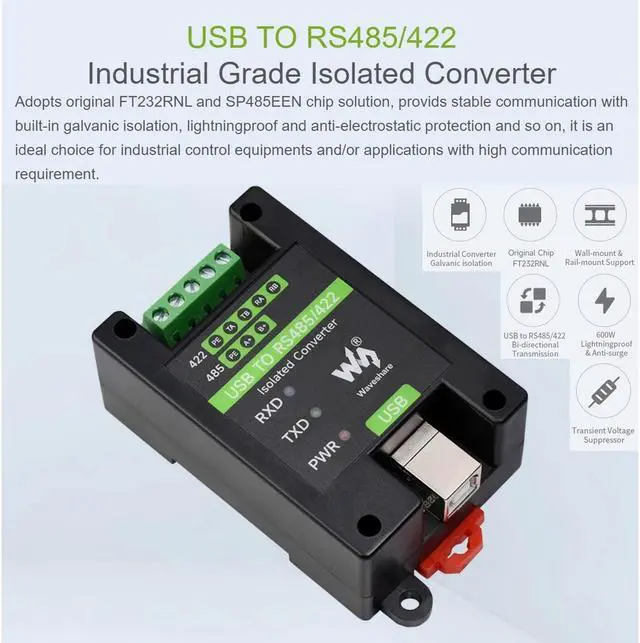

USB TO RS485/422 Industrial Grade Isolated Converter
Adopts original FT232RNL and SP485EEN chip solution, provids stable communication with built-in galvanic isolation, lightningproof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

Features

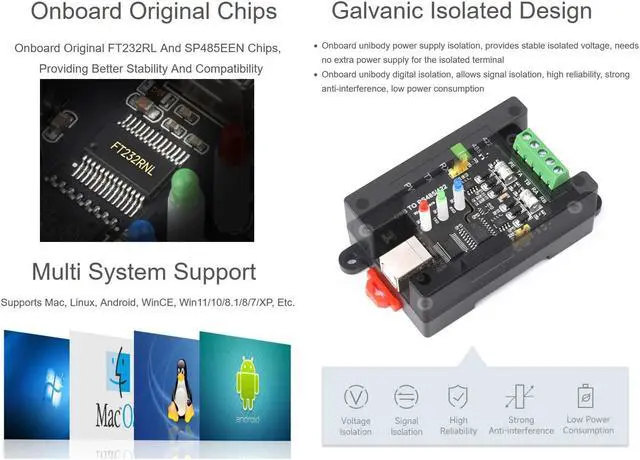

1. Onboard Original FT232RL and SP485EEN chip. Fast communication, stable and reliable, better compatibility
2. Onboard unibody power supply isolation, provides stable isolated voltage, needs no 3. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

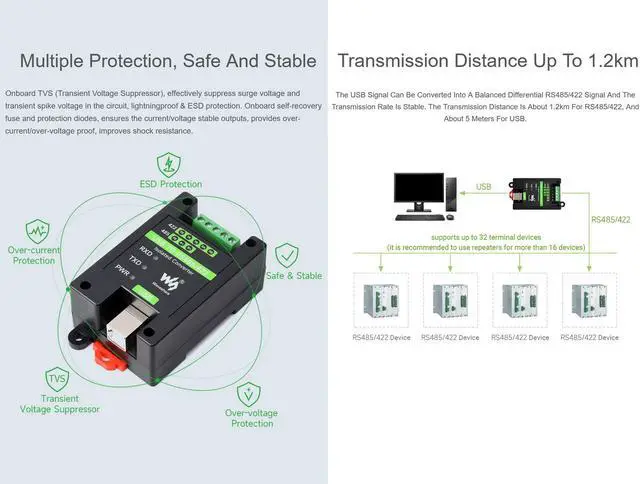

4. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
5. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
6. Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection
7. Onboard 120R terminal resistor on the RS485/RS422 ports, enable by default, configurable by jumper

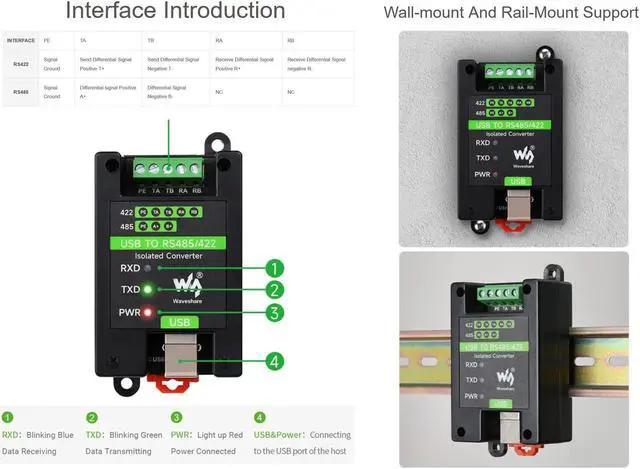

8. 3 LEDs for indicating the power and transceiver status
9. Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

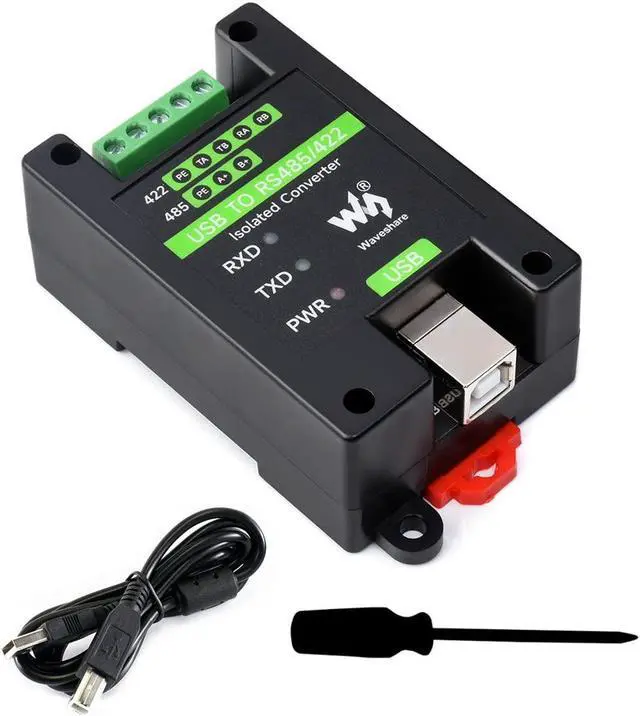

Package Content
1. USB TO RS485/422 x1
2. USB-A male to USB-B male cable ~ 1.2 m x1
3. Screwdriver x1

NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
