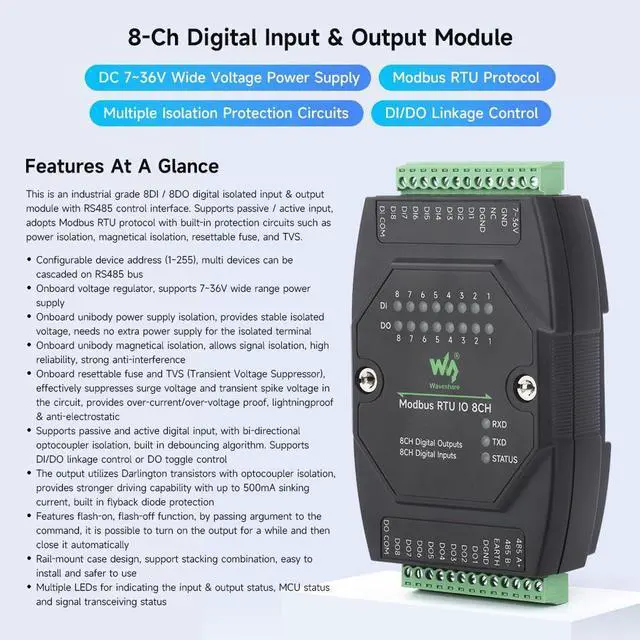

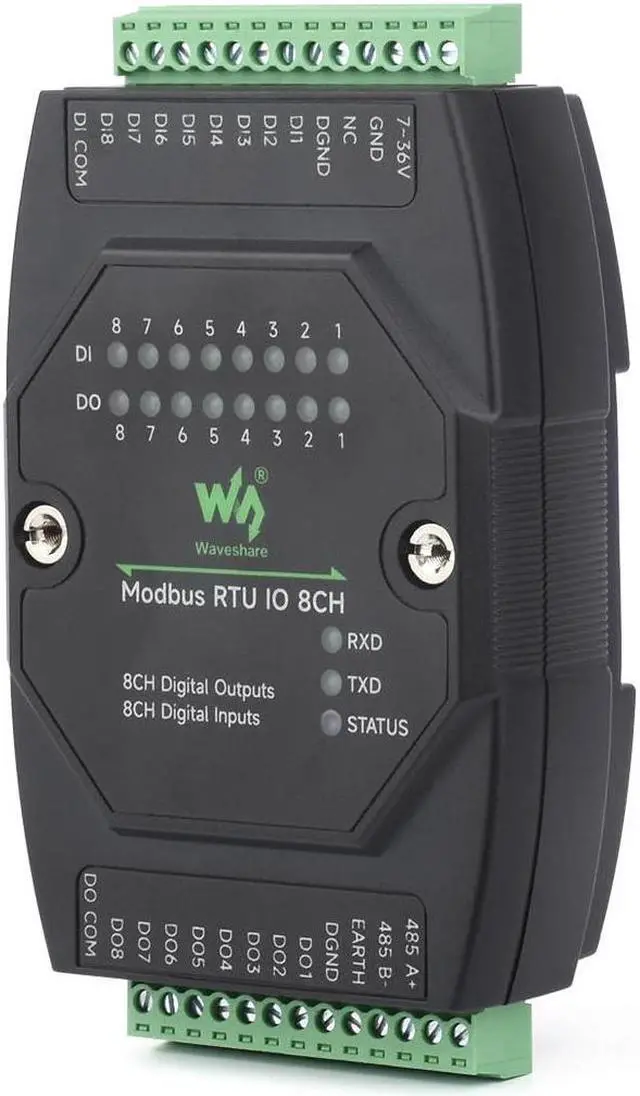

Waveshare Industrial 8-Ch Digital Input & Output Module, DC 7~36V Wide Voltage Power Supply, Modbus RTU Protocol, Multiple Isolation Protection Circuits, Rail-Mount Support
- Configurable device address (1~255), multi devices can be cascaded on RS485 bus

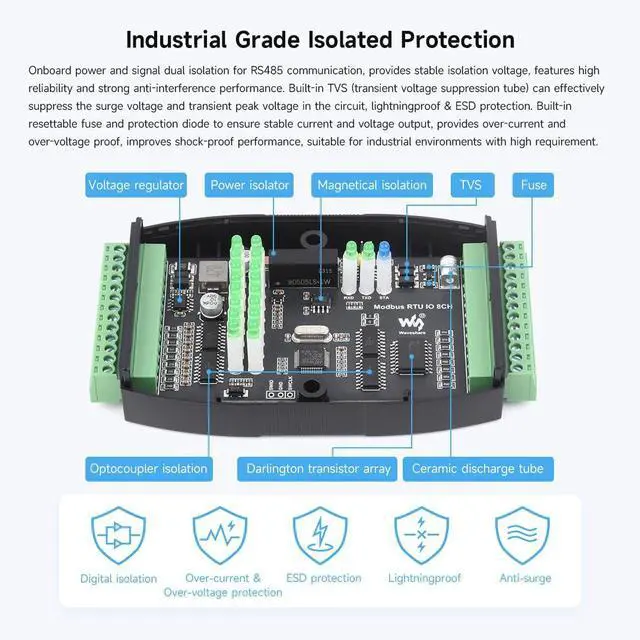

- Onboard voltage regulator, supports 7~36V wide range power supply. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
- Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
- Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. Supports DI/DO linkage control or DO toggle control
- The output utilizes Darlington transistors with optocoupler isolation, provides stronger driving capability with up to 500mA sinking current, built in flyback diode protection
- Features flash-on, flas
+
+
