Power Over Ethernet (C) for Raspberry Pi 4B/3B+, POE HAT Board with Cooling Fan,Support IEEE 802.3af/at-Compliant Network,5V USB-A & 12V Header Outputs to Use More Peripherals
- The PoE HAT (Power Over Ethernet HAT) (Type C) for Raspberry Pi 3B+/4B,Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs
- PoE (Power Over Ethernet) capability,IEEE 802.3af/at-compliant

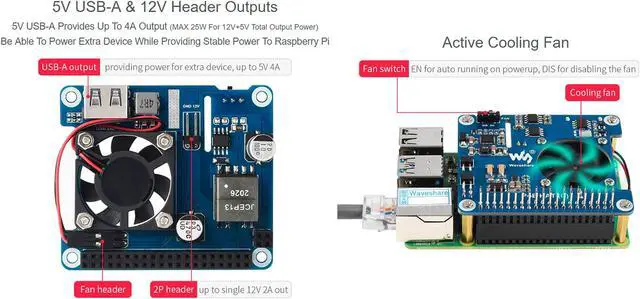

- 5V USB-A & 12V header outputs. 5V USB-A provides up to 4A output (MAX 25W for 12V+5V total output power). be able to power extra device while providing stable power to Raspberry Pi.
- Onboard MP8676 buck chip. Incorporates original voltage buck chip. providing up to 4.5A output for Raspberry Pi and USB-A port.
- Onboard high speed active cooling fan, better heat dissipation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

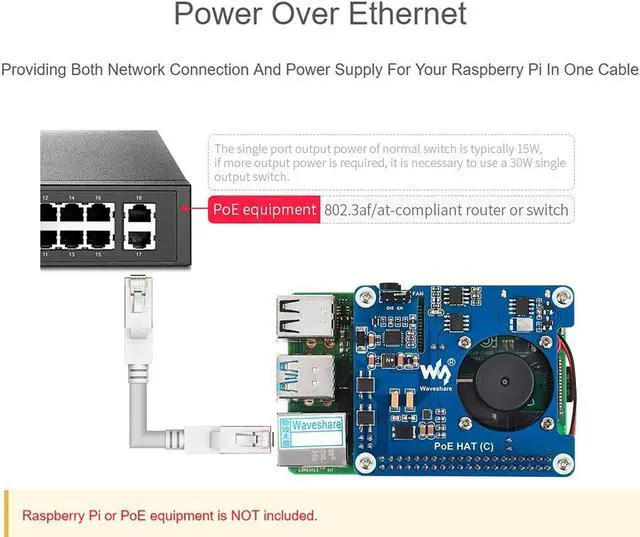

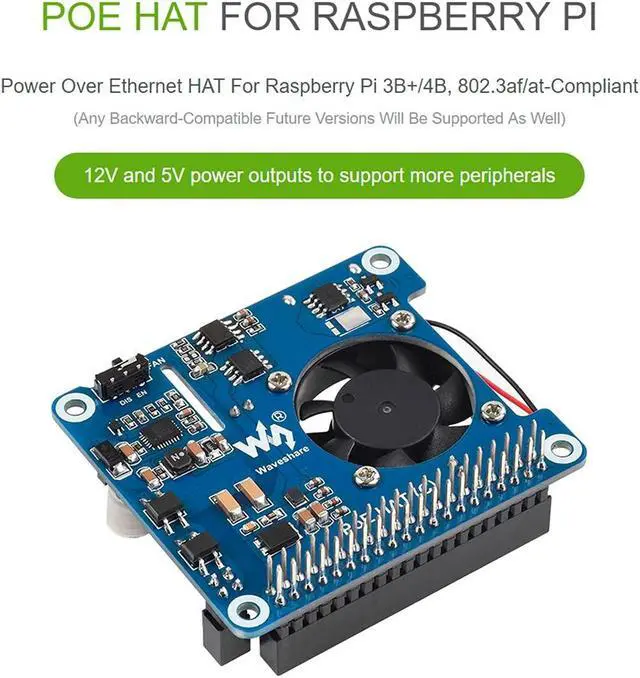

The PoE HAT (C) is a 802.3 af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3 af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
Features

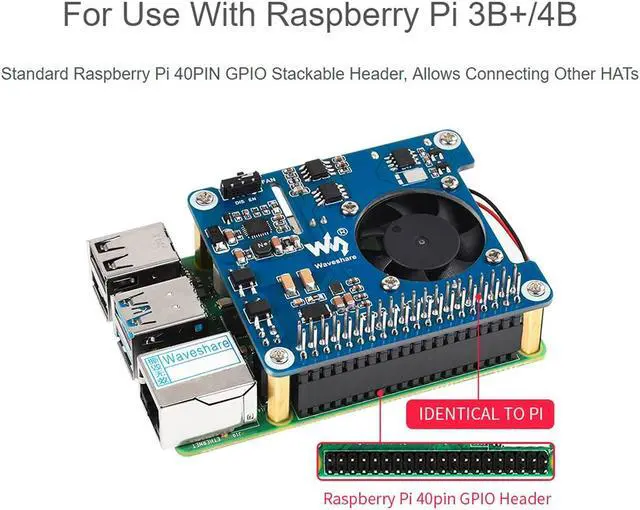

Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
PoE (Power Over Ethernet) capability, IEEE 802.3 af/at-compliant
Fully isolated switched-mode power supply (SMPS)
While providing stable power for the Raspberry Pi, there's also a USB-A port for powering extra external device
Onboard high speed active cooling fan, better heat dissipation
POE input voltage: 37V ~ 57V DC input
POE-USB Type A output voltage: 5V 4A (MAX)
POE-Pin header output voltage: 12V 2A (MAX)
Network standard: Support IEEE 802.3 af/at PoE
Product size: 56.5 x 65mm
User Manual/Resources: n9. cl/jmm4d
Package Content

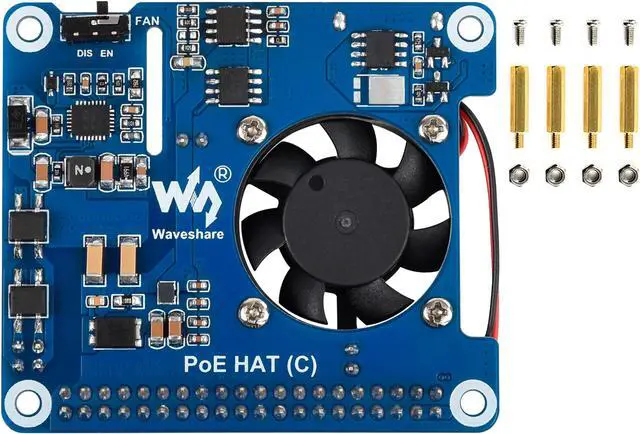

PoE HAT (C) x1
Heatsink x1
Standoffs pack x1
The PoE HAT (C) is a 802.3 af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3 af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
Features
Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
PoE (Power Over Ethernet) capability, IEEE 802.3 af/at-compliant
Fully isolated switched-mode power supply (SMPS)
While providing stable power for the Raspberry Pi, there's also a USB-A port for powering extra external device
Onboard high speed active cooling fan, better heat dissipation
Specifications
POE input voltage: 37V ~ 57V DC input
POE-USB Type A output voltage: 5V 4A (MAX)
POE-Pin header output voltage: 12V 2A (MAX)
Network standard: Support IEEE 802.3 af/at PoE
Product size: 56.5 x 65mm
User Manual/Resources: n9. cl/jmm4d
Package Content
PoE HAT (C) x1
Heatsink x1
Standoffs pack x1
