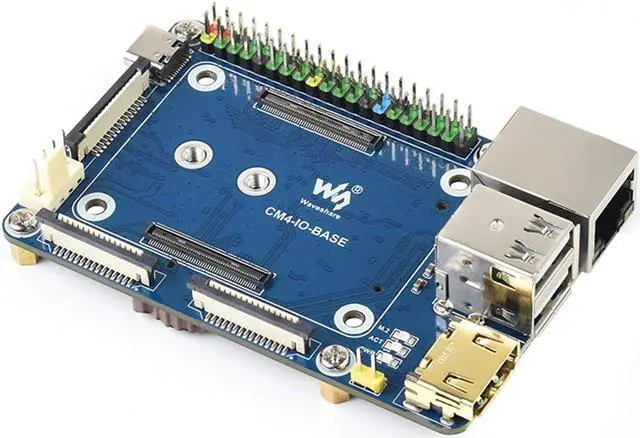

Mini Base Board for Raspberry Pi Compute Module 4, with Standard CM4 Socket and Raspberry Pi 40 PIN GPIO Header, Onboard Multiple Connectors, Suitable for Compute Module 4 Lite/EMMC Series Module

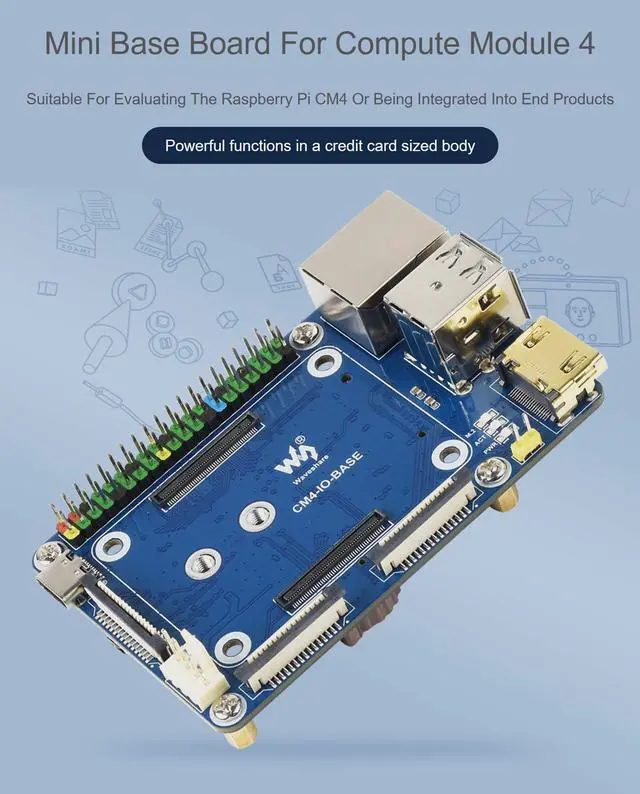

- Mini base board designed for Raspberry Pi Compute Module 4, suitable for evaluating the Raspberry Pi CM4 or being integrated into end products.

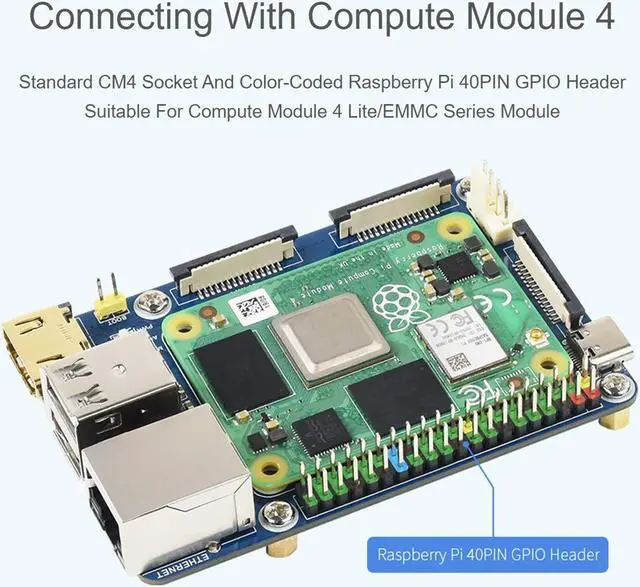

- Standard Raspberry Pi CM4 socket and color-codedRaspberry Pi 40 pin gpio header, suitable for Compute Module 4 Lite/EMMC series module.

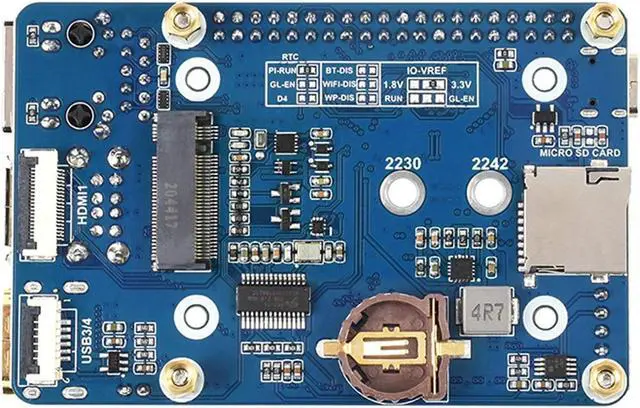

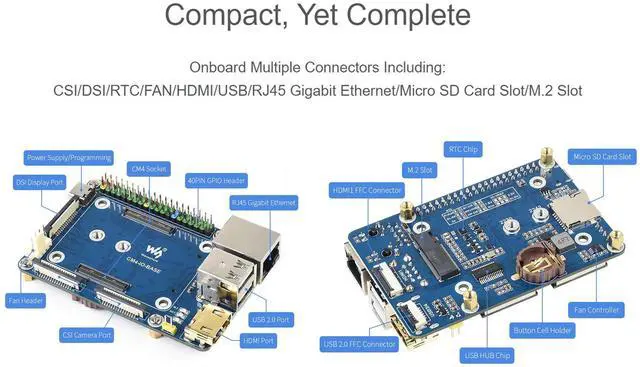

- Onboard multiple connectors including: CSI/DSI/RTC/FAN/HDMI/USB/RJ45 Gigabit Ethernet/Micro SD Card Slot/M.2 Slot. The DSI display interface is the DSI0 interface, and the DSI1 display interface is not connected.
- FAN fans only support 5V fans, 12V is not supported, confirm the fan voltage before connecting.Outline Dimensions: 85x56mm.
- Comes with mounting screw, easy to install. When using the M.2 interface, please use the matching screws.
+
+
