Waveshare POE M.2 HAT+ (B) for Raspberry Pi 5, PCIe to M.2, Power Over Ethernet, NVMe SSD Support, IEEE 802.3af/at

Overview
PCIe to M. 2 Adapter with PoE Function (B) for Raspberry Pi 5, Supports NVMe Protocol M. 2 Solid State Drive, IEEE 802.3 af/at PoE Network Standard, High-speed Reading/Writing

Features
Standard Raspberry Pi 40pin GPIO extension header, compatible with Raspberry Pi 5 (not applicable to PI4B and PI3B)
Supports Power over Ethernet (PoE), supports IEEE 802.3 af/at PoE network standard
Adopts fully isolated Switch Mode Power Supply (SMPS) mode power
Supports NVMe protocol M. 2 interface hard drives, featuring high-speed read and write, and high work efficiency

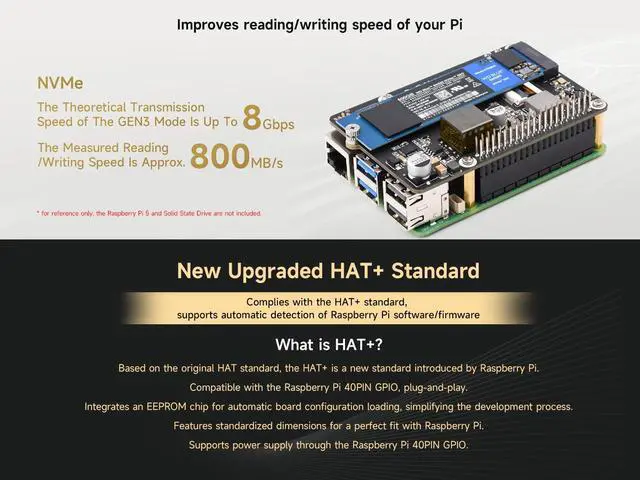

PCI-Ex1 Gen2 or Gen3 mode
Only supports PI5B

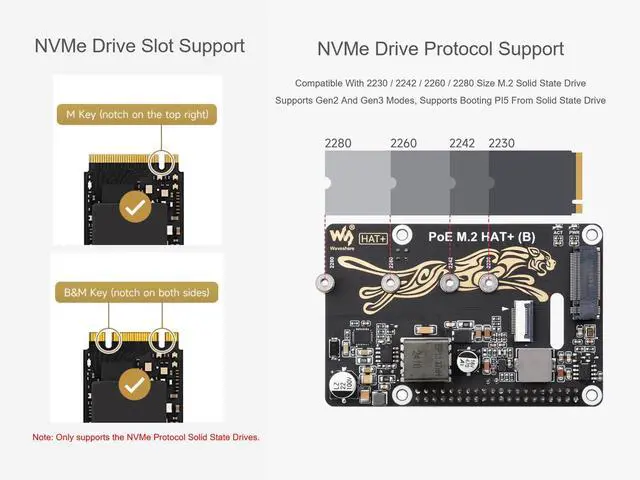

Compatible with M. 2 hard drives of 2230 / 2242 / 2260 / 2280 sizes
Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible

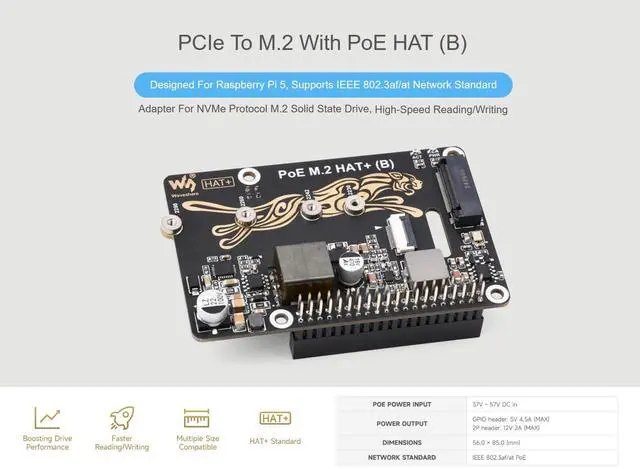

Specifications

PoE power input: 37V ~ 57V DC in
Power output:
--GPIO header: 5V 4.5A (MAX)
--2P header: 12V 2A (MAX)
Dimensions: 56.0 x 85.0 (mm)
Network standard: IEEE 802.3 af/at PoE

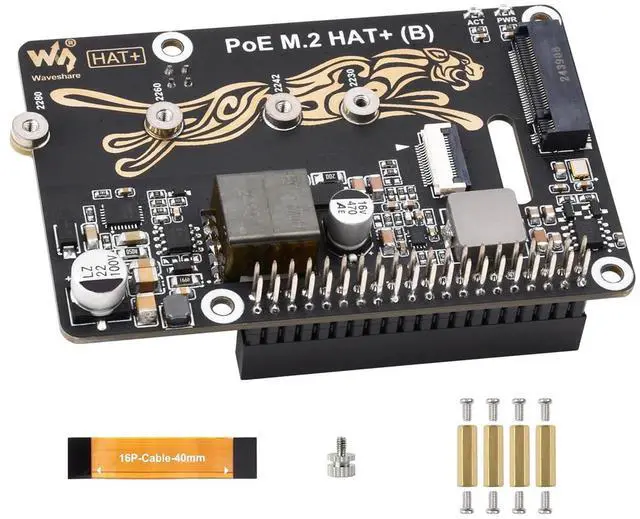

Package Content
PoE M. 2 HAT+ (B) x1

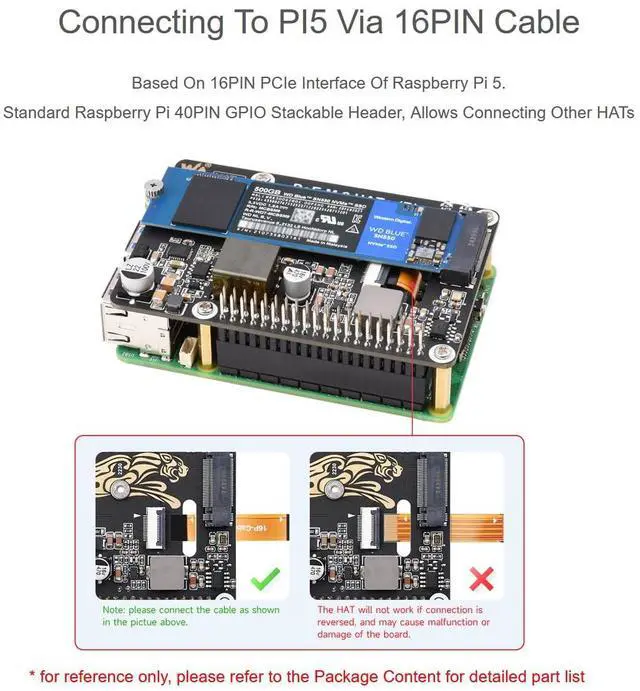

16PIN PCIe cable x1
Solid State Drive mounting screw x1
Screws pack x1

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
