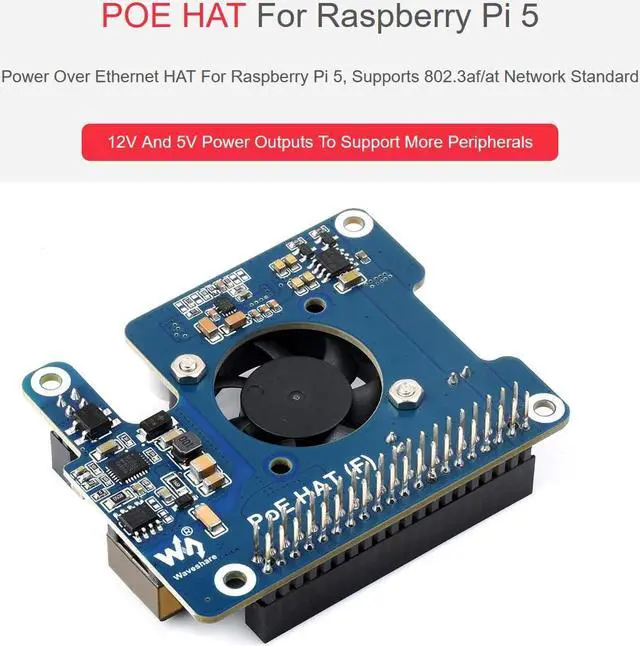

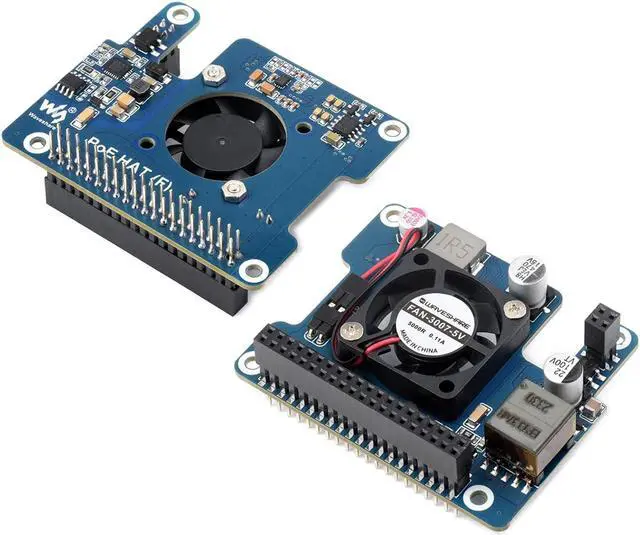

waveshare POE Power Over Ethernet HAT for Raspberry Pi 5, IEEE 802.3af/at PoE Network Standard, Onboard 5V & 12V Header Outputs, with Cooling Fan and Metal Heatsink

Be the first to review this product...

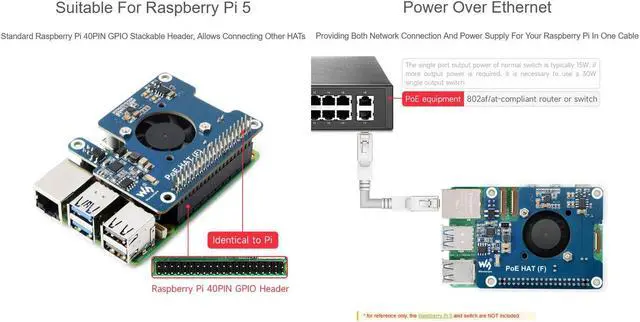

  • Power Over Ethernet HAT for Raspberry Pi 5, supports 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable
  • POE HAT with tandard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs, suitable for Raspberry Pi 5

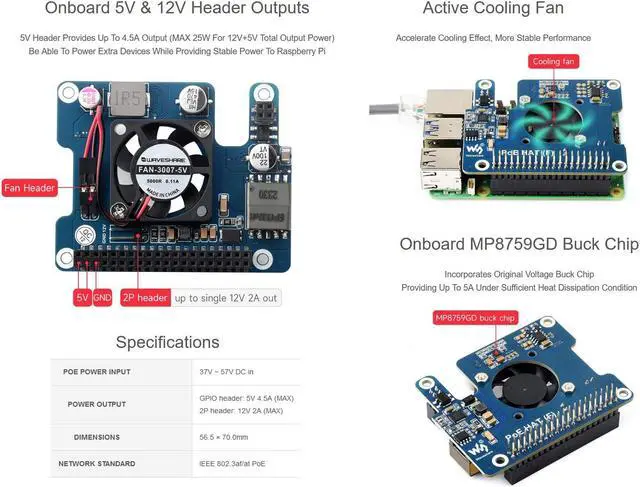

  • Onboard 5V & 12V header outputs, 5V header provides up to 4.5A output (MAX 25W for 12V + 5V total output power) be able to power extra devices while providing stable power to Raspberry Pi
  • Onboard high speed active cooling fan, with metal heatsink, better heat dissipation
  • Fully isolated switched-mode power supply (SMPS)
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
Overview The PoE HAT (F) is a 802.3 af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3 af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable. Features --Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5 --PoE (Power Over Ethernet) capabilityIEEE 802.3 af/at-compliant --Fully isolated switched-mode power supply (SMPS) --Onboard high speed active cooling fan, with metal heatsink, better heat dissipation

Specifications

PoE power input-- 37V 57V DC in
Power output: --GPIO
header: 5V

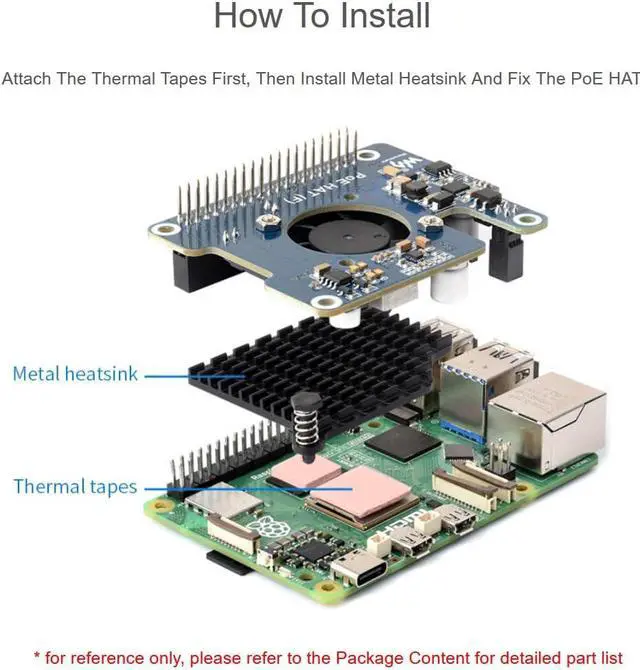

4.5A (MAX) --2P header: 12V 2A (MAX) Dimensions-- 56.5 × 70.0 mm Network standar--IEEE 802.3 af/at PoE Package Content PoE HAT (F) x1 Metal heatsink x1 Thermal tape (3PCS) x1
