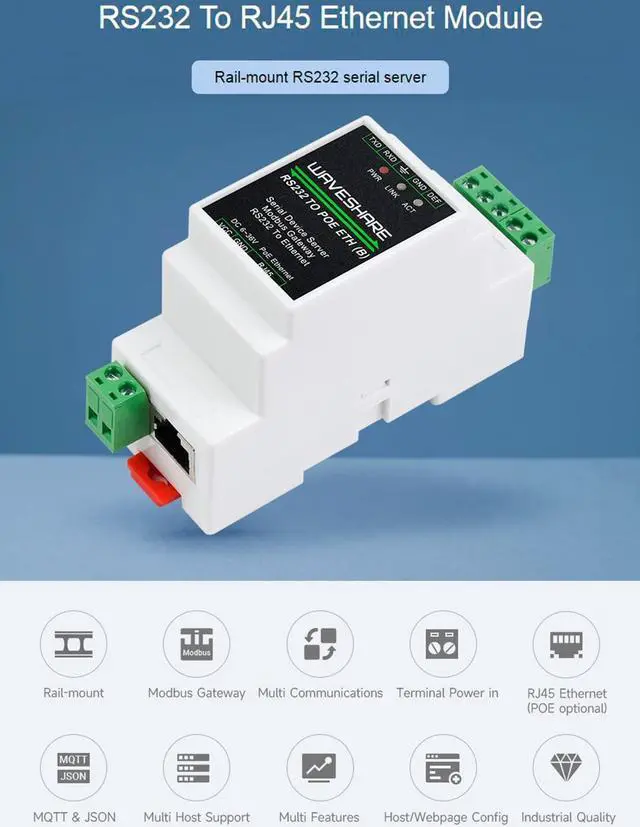

waveshare RS232 to POE RJ45 Ethernet Module, Industrial Rail-Mount RS232 Serial Server with POE Funtion, TCP/IP to Serial, Support Modbus Gateway, Bi-Directional Between RS232 and Ethernet

Introduction

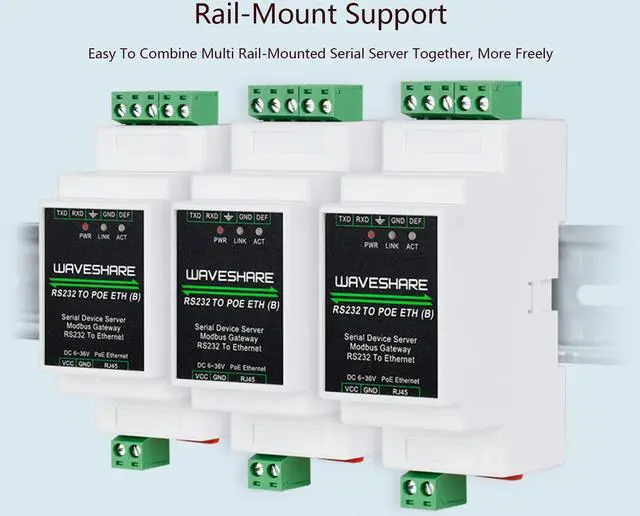

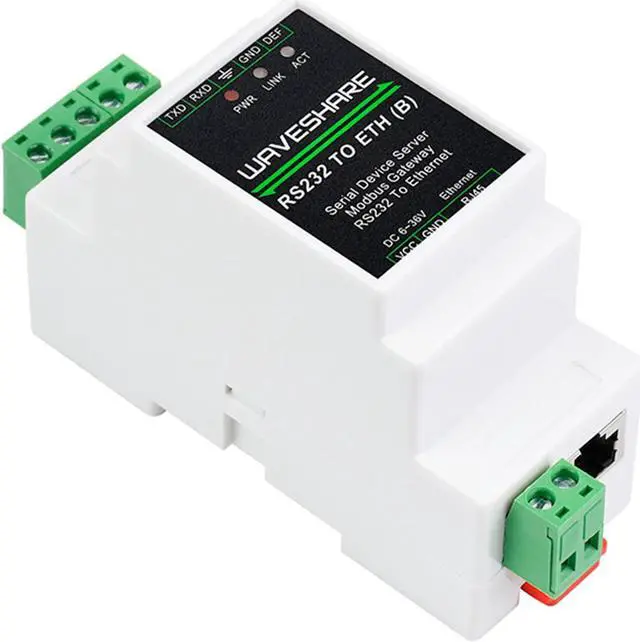

This is a RS232 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 to JSON, etc. The module features RS232 and Ethernet port with POE, uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, etc.

Specifications

Product Type--Serial server, Modbus Gateway, MQTT Gateway
Basic Function--Bi-directional transparent data transmission between RS232 and Ethernet
Communication interface--RS232 port x 1, Ethernet port x 1
Power supply-- 6 ~ 36V DC screw terminal, or PoE port
Isolation Protection--Power isolation, Signal isolation

COMMUNICATION

Ethernet-- PoE network port, support IEEE 802.3 af standard; 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection.
Serial port--Isolated RS232

SERIAL SPECIFICATION

Baudrate--300 ~ 115200 bps
Parity bit--none, odd, even, mark, space
Data bit--5 ~ 9 bits

SOFTWARE

Protocol--ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration--host, web browser, device management functions library
Communication method--TCP/IP direct communication, VCOM

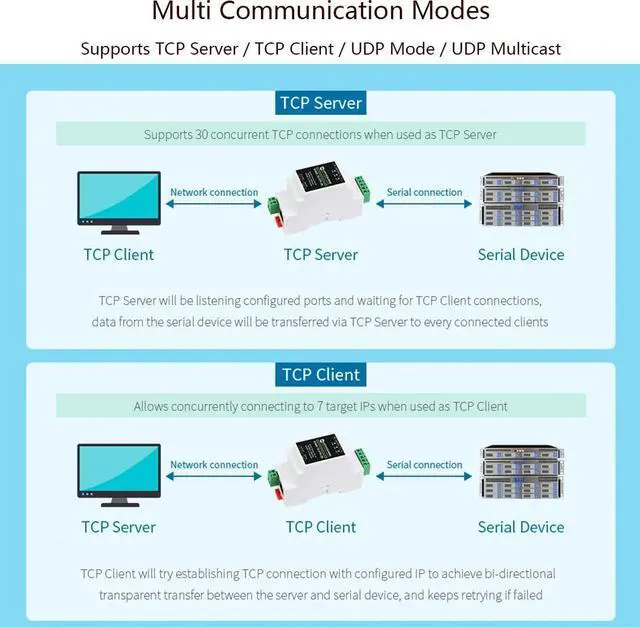

Operating mode--TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast

OTHERS

Operating temperature: -40 ~ 85
Humidity range--5% ~ 95% relative humidity
Dimensions--L × W × H: 87 × 36 × 59 mm

How-to-use document/User Manual
: // bit. ly/3RJtNfJ

PACKAGE CONTENT
RS232 TO ETH with POE Module x1
Note: The power supply of this product is not included, it is recommended to used with a 12V Industrial DIN-Rail Power Supply (B0BN8G45R9)
