waveshare Compatible with Atmel at AVRISP mkII mk2 AVR ISP in-System Programmer USB AVRISP XPII Support All AVR Devices with ISP or PDI Interface, XMEGA Support AVR Studio 4/5/6
- Supports all AVR devices with ISP or PDI interface, and certain 51 Devices
- Programs both Flash and EEPROM,Supports Fuses and Lock Bit Programming
- Based on AT AVRISP mkII firmware,Upgradable to Support Future Devices
- Adjustable ISP programming speed up to 8M frequency,USB 2.0 compliant (full speed, 12Mbps)
- 3 optional cables to target board,Powered from USB bus, does not require external power supply
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AVR ISP Programmer compatible with AT AVRISP mkII from ATMEL
A professional In-System Programmer. Supports all AVR devices with ISP or PDI interface, including XMEGA
Supports AVR Studio 4/5/6 or higher version (delivered with firmware for AVR Studio 5, can be updated to support other AVR Studio versions)
AT AVRISP mkII compliant
- Compatible with AT AVR ISP, easy to use, stable and reliable
Based on AT AVRISP mkII firmware
- Identified as AVRISP mkII in AVRStudio, high speed programming
Upgradable firmware
- Firmware is upgradable to Support Future Devices
- Automatic Upgrade
Supported software
- AVR Studio 4/5/6 or WINAVR (GCC) is used as front-end software
- Supports the program files generated by IAR, ICCAVR, CVAVR
Device Support
- USB AVRISP XPII supports all AVR devices with ISP and PDI Interface. Support for new devices will be added with new versions of AVR Studio.
- Supports AT86RF401/AT89S51/AT89S52
Supports all the different voltages and speed grade versions of the devices listed in the table above.
Check more supported devices: UC3, Mega, SAM, Tiny, Xmega

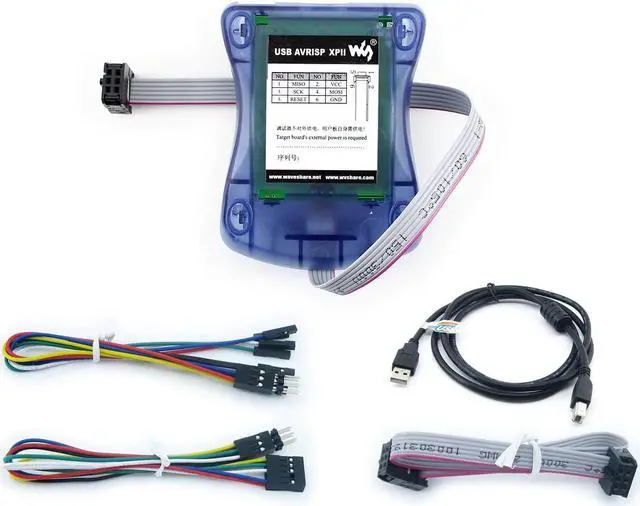

Package Content
USB AVRISP XPII x1
USB Cable x1
6-pin cable (spare) x1
6-pin to 10-pin ISP cable x1
6-wire multicolour custom connector cable x1
Please contact with us if you have any problem.
A professional In-System Programmer. Supports all AVR devices with ISP or PDI interface, including XMEGA
Supports AVR Studio 4/5/6 or higher version (delivered with firmware for AVR Studio 5, can be updated to support other AVR Studio versions)
AT AVRISP mkII compliant
- Compatible with AT AVR ISP, easy to use, stable and reliable
Based on AT AVRISP mkII firmware
- Identified as AVRISP mkII in AVRStudio, high speed programming
Upgradable firmware
- Firmware is upgradable to Support Future Devices
- Automatic Upgrade
Supported software
- AVR Studio 4/5/6 or WINAVR (GCC) is used as front-end software
- Supports the program files generated by IAR, ICCAVR, CVAVR
Device Support
- USB AVRISP XPII supports all AVR devices with ISP and PDI Interface. Support for new devices will be added with new versions of AVR Studio.
- Supports AT86RF401/AT89S51/AT89S52
Supports all the different voltages and speed grade versions of the devices listed in the table above.
Check more supported devices: UC3, Mega, SAM, Tiny, Xmega
Package Content
USB AVRISP XPII x1
USB Cable x1
6-pin cable (spare) x1
6-pin to 10-pin ISP cable x1
6-wire multicolour custom connector cable x1
Please contact with us if you have any problem.
