waveshare Industrial IoT 5G/4G/LoRa Wireless Expansion Board with UPS Module for Raspberry Pi Compute Module 4 Lite/eMMC Series, with CSI/HDMI/USB/Gigabit Ethernet/CAN / RS485 / M.2 B Key Interfaces

Overview
This is an industrial expansion module Raspberry Pi Compute Module 4 Lite/eMMC series module, with UPS module.
It features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allowing additional 4G / 5G wireless communication modules to be connected via the M. 2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.
Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in the industrial automatic control system, and more.
Uninterruptible Power: It is able to charge the batteries and provide power output at the same time from external power supply. Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

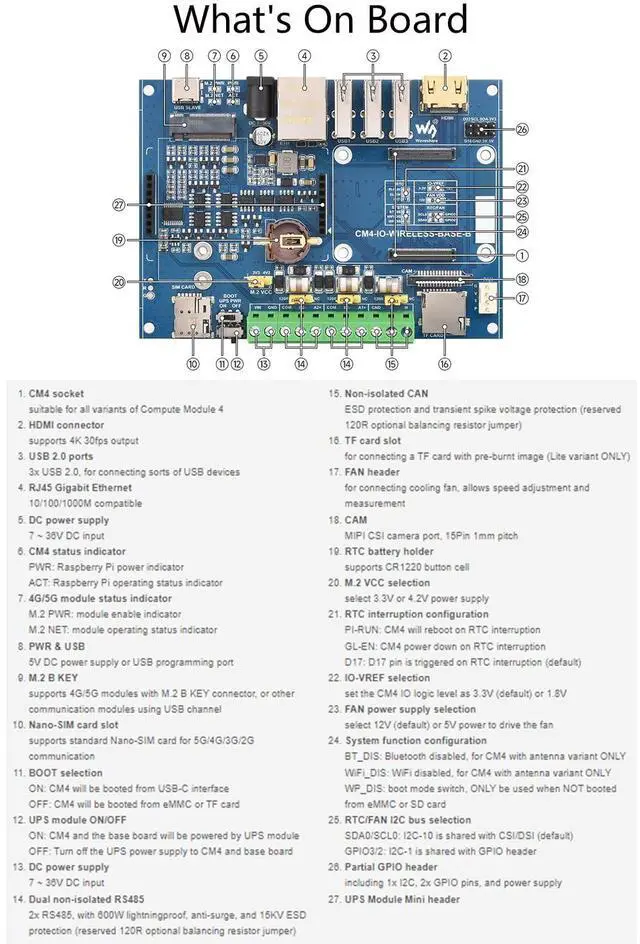

Specifications

CM4 socket: suitable for all variants of Compute Module 4
UPS Power: UPS Module, 5V/ 2.5A (Max) output, supports 3 × 10440 lithium batteries (NOT included)
Networking:
Gigabit Ethernet RJ45

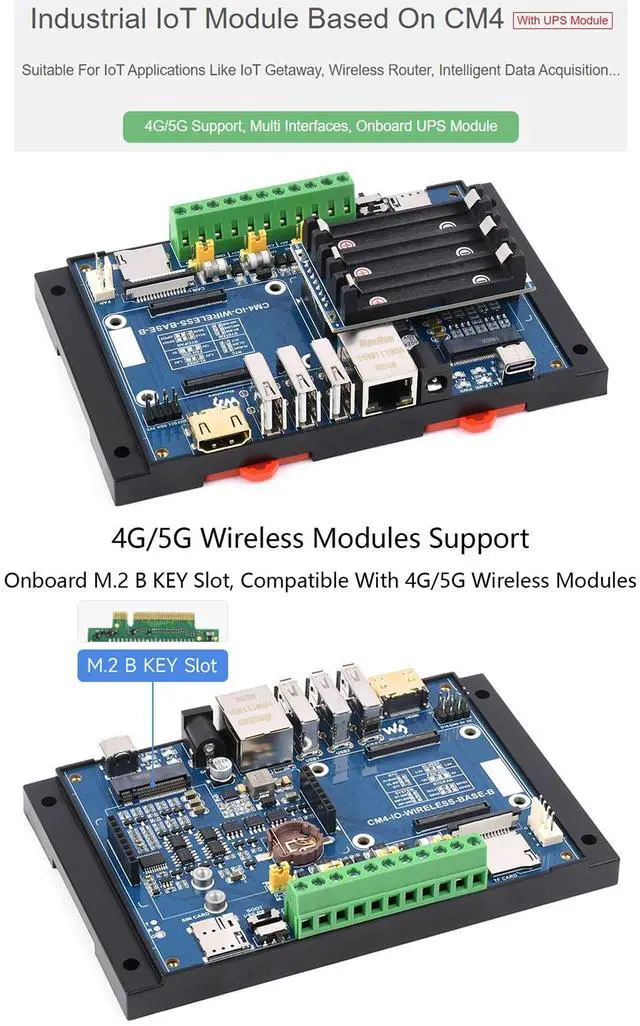

M. 2 B KEY, for connecting 5G / 4G wireless module
Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
USB: USB 2.0 × 3
Pin header: Non-isolated RS485 × 2, Non-isolated CAN × 1, Partial GPIO pins
Camera: MIPI CSI-2 × 1 (15pin 1.0 mm FPC connector)
Video: HDMI × 1, supports 4K 30fps output
RTC: Real-time clock with battery socket and ability to wake Compute Module 4
Storage: TF card socket for Compute Module 4 Lite (without eMMC) variants
Fan header: 5V/12V, allows speed adjustment and measurement
Power input: 5V or 7~36V
Dimensions: 145 × 90 × 40mm

Package Content

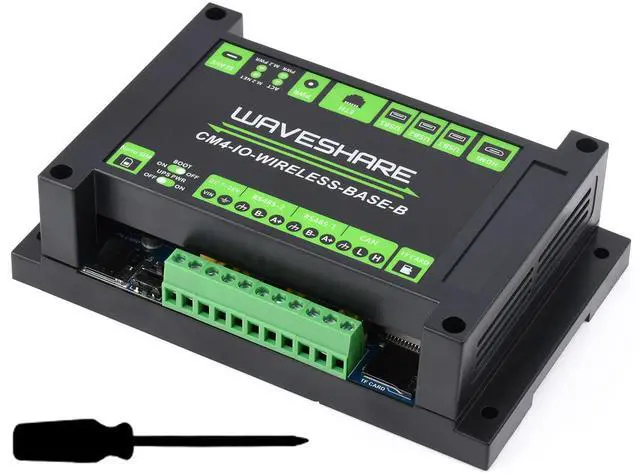

CM4-IO-WIRELESS-BASE-B x1
Screwdriver x1

Online Development Resources /User Manual: //bit. ly/3QyKnjC
