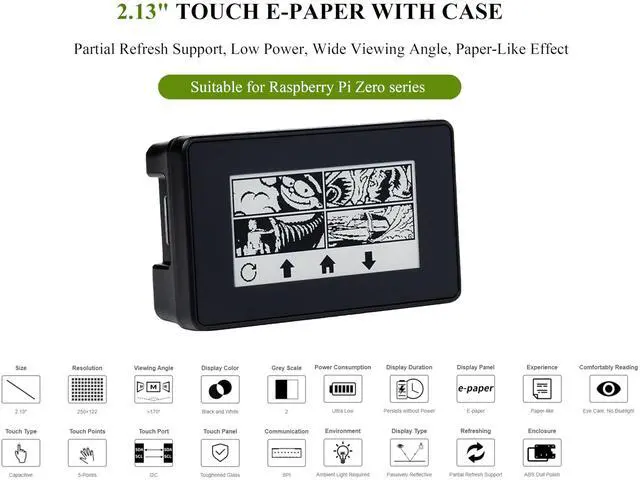

2.13inch Touch e-Paper Display with ABS Case for Raspberry Pi Zero 2 W/Raspberry Pi Zero/Pi Zero W/Pi Zero WH, 250x122 Pixels E-Ink, Paper-Like Effect Support Partial Refresh
- 2.13" capacitive touch e-Paper display, 5-point touch, 250×122 pixels.Display color: black, white. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W. Supports waken up by user-defined gesture.
- No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back,combined with thermal tape, effective heat dissipation.
- Outline dimensions(Module): 69.15 × 38.90mm. Outline dimensions(Driver Board): 59.51mm × 34.00mm. Display area: 48.55mm × 23.71mm. Operating Voltage: 3.3V (V1.1 support 5V). Communication interface: SPI. Dot pitch: 0.194 × 0.194mm.
- Greyscale: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW(typ.). Touchpoints: 5 (MAX). Touch type: Capacitive touch. Touch interfaced: I2C. Touch panel: Toughened Glass .
- Comes with development resources and manual (examples for Raspber
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
2.13" capacitive touch e-Paper display, 5-point touch, 250×122 pixels.
Display color: black, white

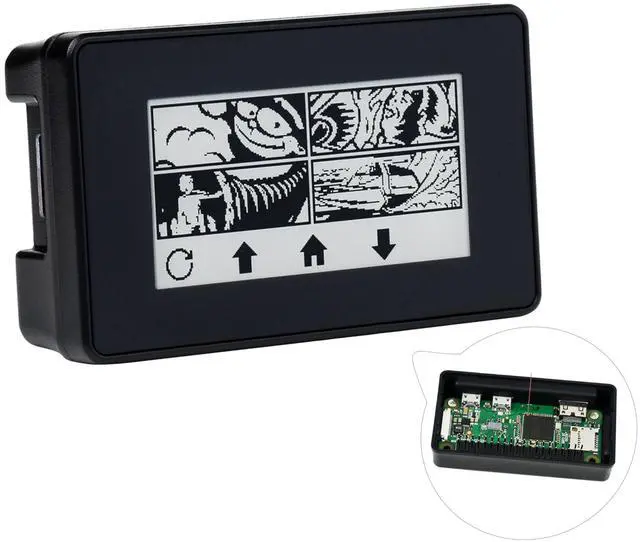

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W.
Supports waken up by user-defined gesture.
No backlight, keeps displaying last content for a long time even when power down.
Ultra low power consumption, basically power is only required for refreshing.

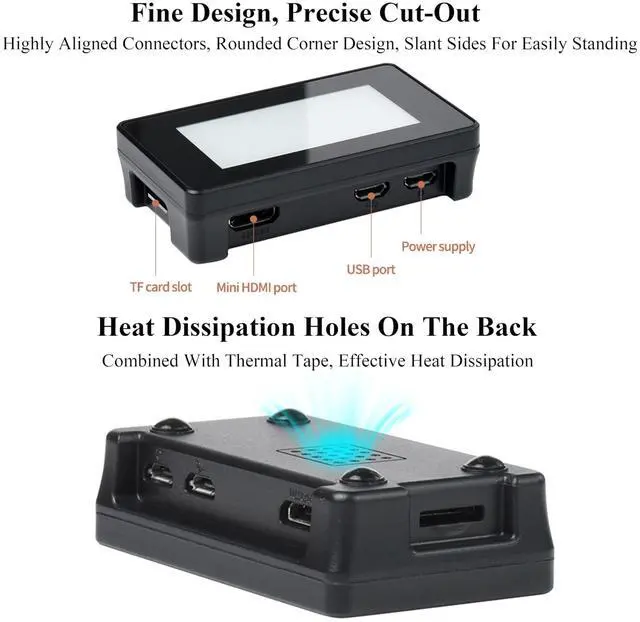

Heat dissipation holes on the back, combined with thermal tape, effective heat dissipation.
operating voltage-- 3.3V
grey scale --2
interface--3-wire SPI, 4-wire SPI
partial refresh time-- 0.3 s
full refresh time --2s
display size -- 48.55 × 23.70 mm
refresh power -- 26.4 mW(typ. )
resolution --250×122 pixels
viewing angle 170°
display color --black, white
Touch point --5 (max)
outline dimensions-- 69.15 × 38.90 mm
dot pitch -- 0.194 × 0.194 mm
standby current -- <0.01uA (almost none)
Online Tutorial/Online Document: n9. cl/wq54w
Package Content
2.13 inch Touch e-Paper HAT x1
ABS case x1
Screwdriver x1
Thermal tape x1
rubber feet 4PCS x1
Screws x2
2.13" capacitive touch e-Paper display, 5-point touch, 250×122 pixels.
Display color: black, white
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W.
Supports waken up by user-defined gesture.
No backlight, keeps displaying last content for a long time even when power down.
Ultra low power consumption, basically power is only required for refreshing.
Heat dissipation holes on the back, combined with thermal tape, effective heat dissipation.

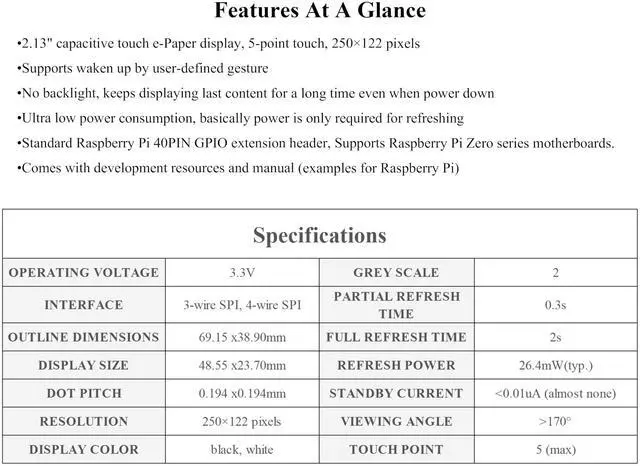

Specifications
operating voltage-- 3.3V
grey scale --2
interface--3-wire SPI, 4-wire SPI
partial refresh time-- 0.3 s
full refresh time --2s
display size -- 48.55 × 23.70 mm
refresh power -- 26.4 mW(typ. )
resolution --250×122 pixels
viewing angle 170°
display color --black, white
Touch point --5 (max)
outline dimensions-- 69.15 × 38.90 mm
dot pitch -- 0.194 × 0.194 mm
standby current -- <0.01uA (almost none)
Online Tutorial/Online Document: n9. cl/wq54w
Package Content
2.13 inch Touch e-Paper HAT x1
ABS case x1
Screwdriver x1
Thermal tape x1
rubber feet 4PCS x1
Screws x2
