$70.99
Meet Your Seller

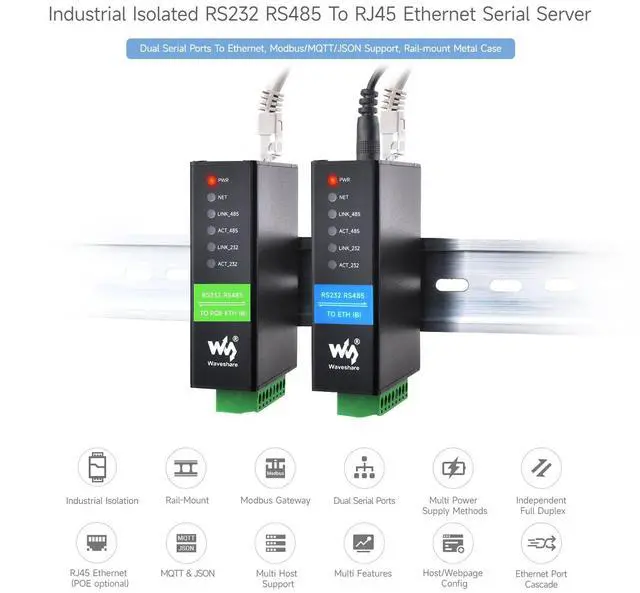

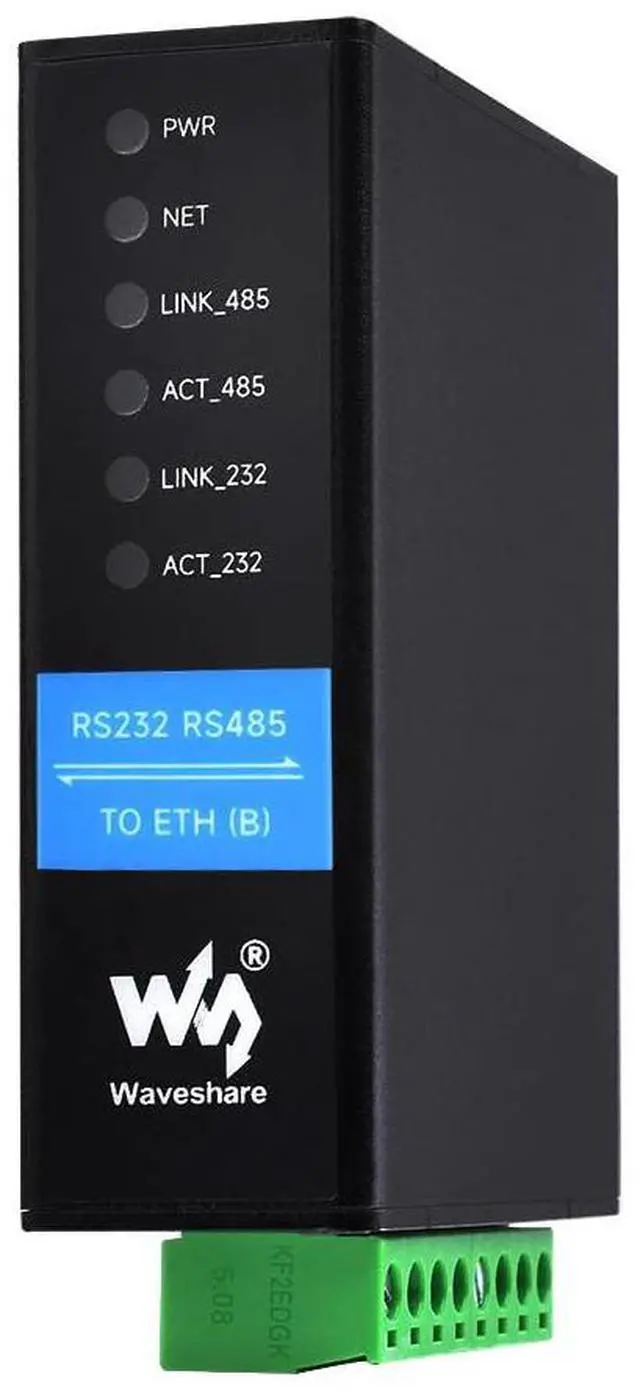

Waveshare RS232 RS485 to RJ45 Ethernet Serial Server, RS232 and RS485 Dual Channels Independent Operation, Dual Ethernet Ports, Common Network Port
- RS232 RS485 To RJ45 Ethernet Serial Server, RS232 And RS485 Dual Channels Independent Operation, Dual Ethernet Ports, Rail-Mount Industrial Isolated Serial Module, Bi-Directional Transparent Transmission-Dual serial ports + Common network port + Electrical isolation

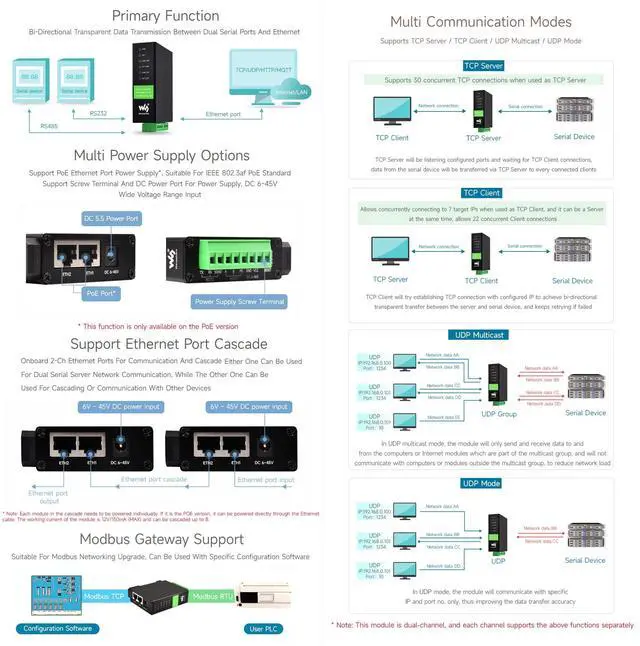

- This is a dual serial ports device data acquisitor / IoT gateway designed for the industrial environment, 1-ch RS232 and 1-ch RS485 can work simultaneously without interfering with each other using one Ethernet cable.
- It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 and RS485 to JSON, etc. The other one Ethernet port can be used as a network switch or for cascading, and the PoE* function is optional for dual Ethernet ports.
- Provides two power supply methods: DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal. The case with rail-mount support, is small in size, easy to install, and cost-effective.
- It is suitable for applications like
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Waveshare RS232 RS485 to RJ45 Ethernet Serial Server, RS232 and RS485 Dual Channels Independent Operation, Dual Ethernet Ports, Common Network Port
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by To the Internet media Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
