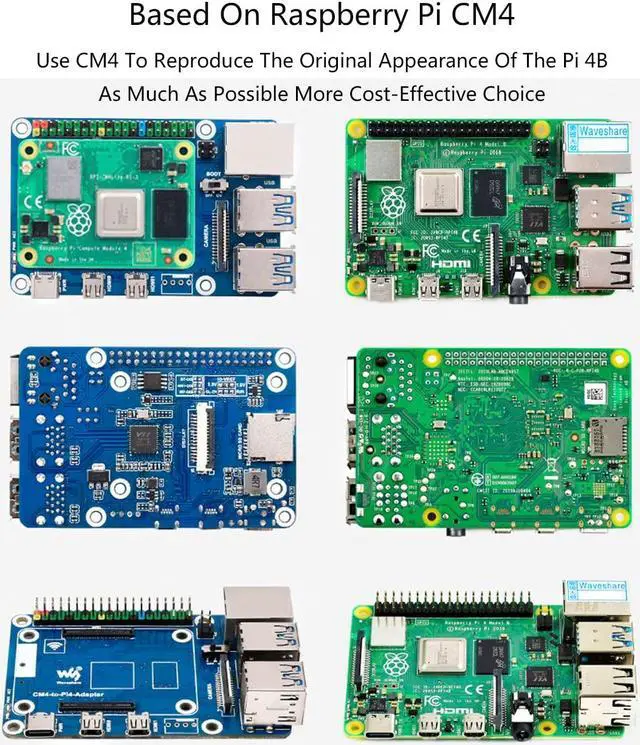

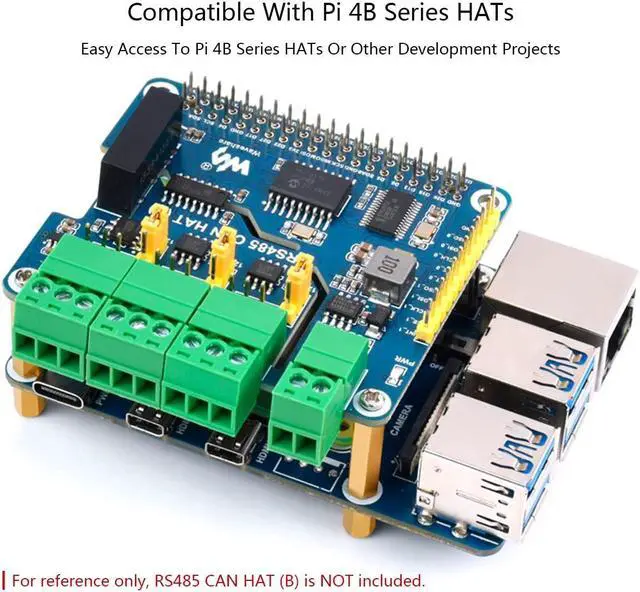

Compute Module 4 to Raspberry Pi 4B Adapter, Based on Compute Module 4 to Reproduce Original Appearance of Pi 4, Alternative for Raspberry Pi 4B,Compatible with Pi 4B Series Hats

Overview

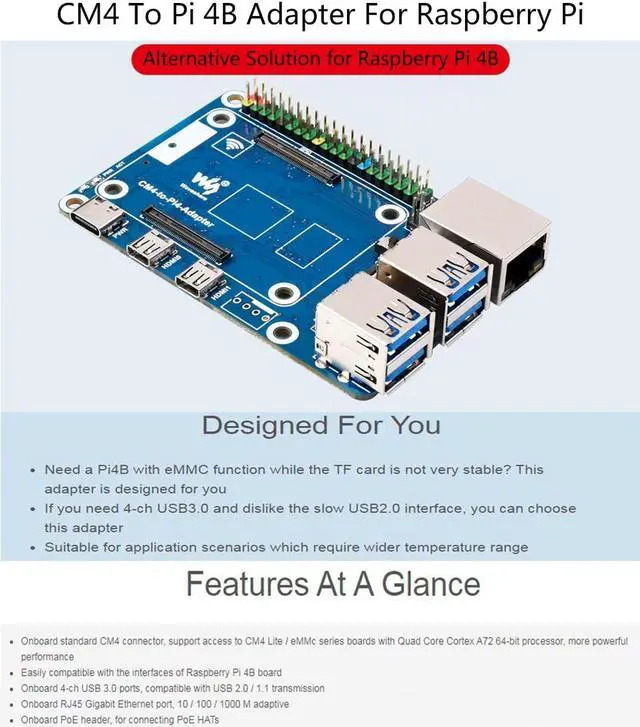

This is a CM4 To Pi 4B Adapte, Based on connect with Compute Module 4, is an alternative solution for Raspberry Pi 4B. Onboard 4 x USB 3.0 port, Gigabit Ethernet port, PoE header, and so on.

Features

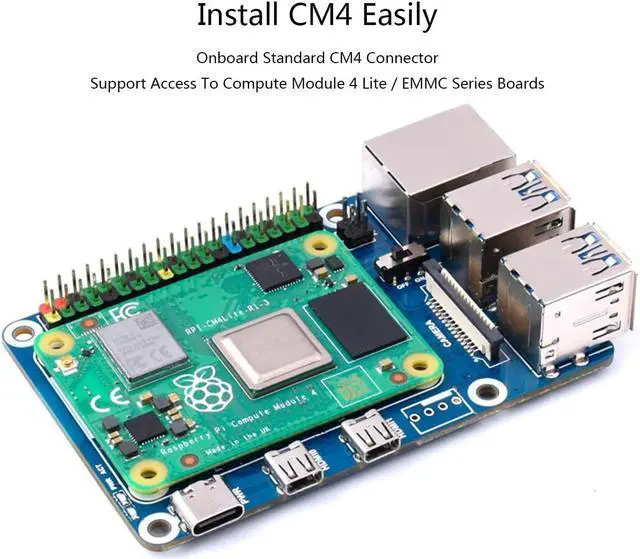

1. Onboard standard CM4 connector, support access to CM4 Lite / eMMc series boards with Quad Core Cortex A72 64-bit processor, more powerful performance
2. Easily compatible with the interfaces of Raspberry Pi 4B board
3. Onboard 4-ch USB 3.0 ports, compatible with USB 2.0 / 1.1 transmission
4. Onboard RJ45 Gigabit Ethernet port, 10 / 100 / 1000 M adaptive
5. Onboard PoE header, for connecting PoE HATs
6. DSI interface is DSI1
7. Micro USB port is for the power supply or can be used as the USB SLAVE interface for programming images
8. Do not connect to other devices when using the micro USB port to program the image for ensuring the power supply of CM4
9. CM4 must be provided by 5V 2A, or it will shut down, lower frequency, etc.
10. USB 2.0 is closed by default, and you need to add "dtoverlay=dwc2, dr_mode=host" in "config. txt" when using
11. FAN only supports 5V. Does not support 12V, confirm the fan voltage before connecting, this version of the fan does not have a controller, and the speed cannot be adjusted

Note: Do not plug and unplug any devices when powering on.

Development Resource/ User Manual: //bit. ly/3fpUYgT

Package Content

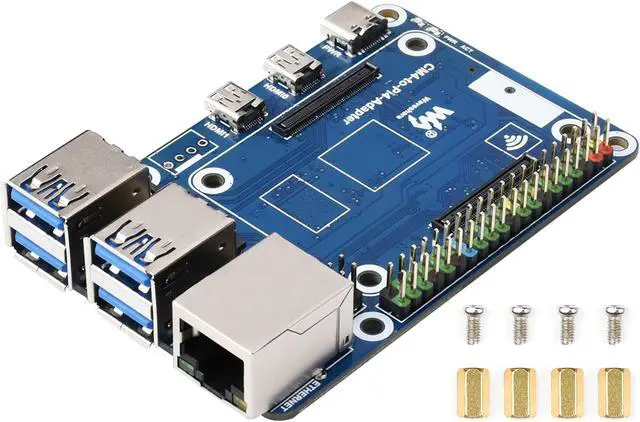

CM4-to-Pi4-Adapter x1
Screws pack x1
