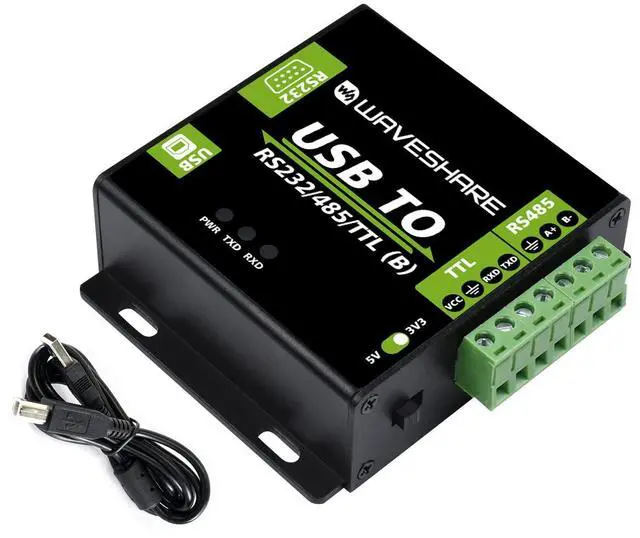

USB to RS485/RS232/TTL Converter Industrial Digital Isolated Converter with CH343G Inside, Multi-Protocol & Multi-Type Conversion, Support Windows 11/10/8.1/8/7 Linux Android Mac etc.
- USB to RS232/485/TTL ConverterUSB TO RS232, USB TO RS485, USB TO TTL (UART), adopt original CH343G, Embedded protection circuits such as unibody power supply isolation, TVS, self-recovery fuse and protection diodes, etc. fast communicating, stable and reliable, better compatibility
- USBOperating voltage: 5V, Connector: USB-B, Protection: 200mA self-recovery fuse, isolated output
- RS485Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads), Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more), Baud rate: up to 2 Mbps (not full band)

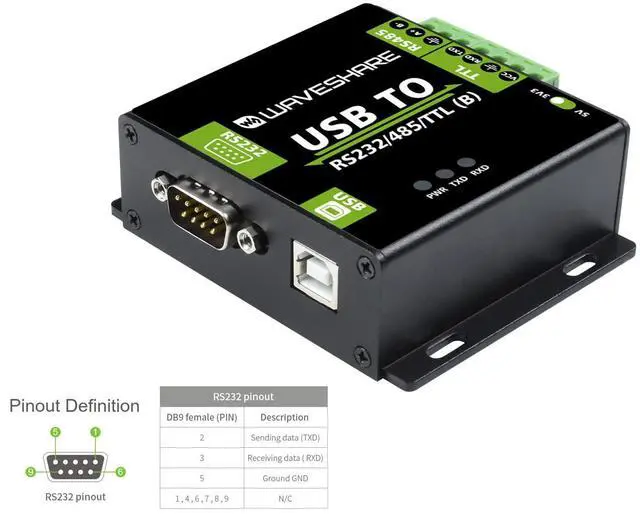

- RS232Connector: DR9 male, Protection: TVS diode, surge protection, ESD protection, Transmission mode: point-to-point, Baud rate: up to 600000 bps (not full band)
- TTL (UART)Operating voltage: 3.3V/5V, Protection: clamp protection diode, over-voltage/negative-voltage proof, shock resistance, Transmission mod
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

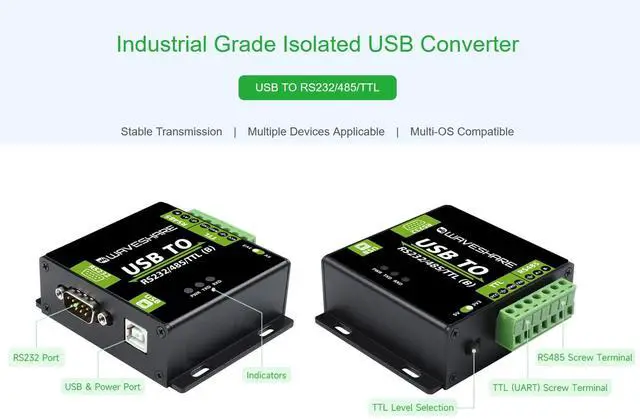

Industrial grade isolated USB TO RS232/485/TTL Converter, onboard original CH343 chip, stable transmission, multiple devices applicable, multi-OS compatible
Features
1. Adopt original CH343G inside, fast communicating, stable and reliable, better compatibility

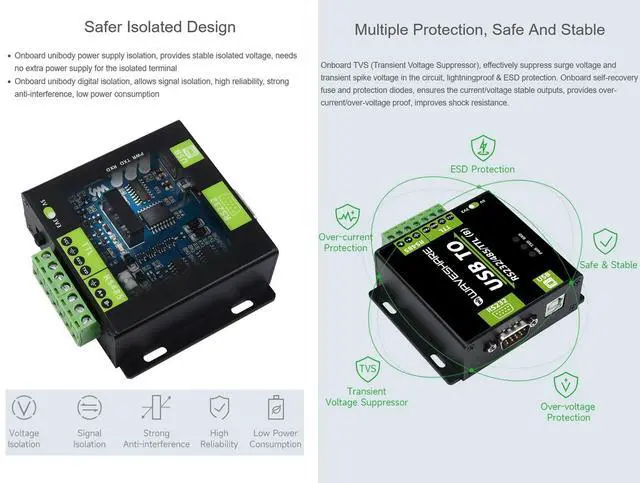

2. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
3. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
4. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
5. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
6. Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other
7. Onboard TTL serial 3.3V /5V voltage translator, config the TTL level via switch
8. Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable
9. 3 LEDs for indicating the power and transceiver status
10. High quality USB-B and RS232 connectors, smoothly plug/pull

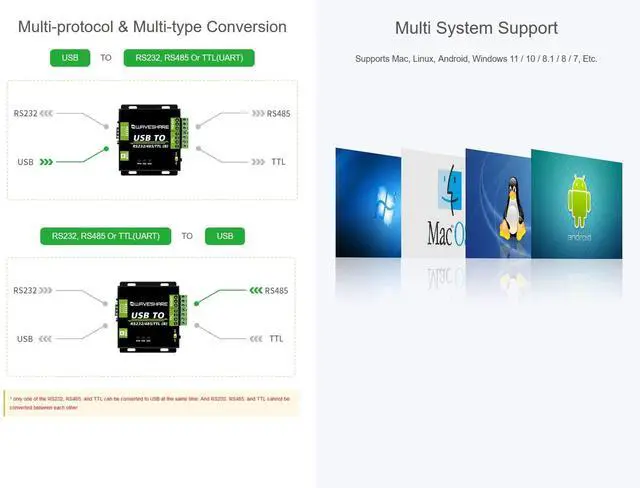

11. Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, etc.
Package Contains
1. USB TO RS232/485/TTL Converter (B) x1
2. USB Cable ~ 1.2 m x1
NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
Industrial grade isolated USB TO RS232/485/TTL Converter, onboard original CH343 chip, stable transmission, multiple devices applicable, multi-OS compatible
Features
1. Adopt original CH343G inside, fast communicating, stable and reliable, better compatibility
2. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
3. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
4. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
5. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
6. Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other
7. Onboard TTL serial 3.3V /5V voltage translator, config the TTL level via switch
8. Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable
9. 3 LEDs for indicating the power and transceiver status
10. High quality USB-B and RS232 connectors, smoothly plug/pull
11. Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, etc.
Package Contains
1. USB TO RS232/485/TTL Converter (B) x1
2. USB Cable ~ 1.2 m x1
NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
