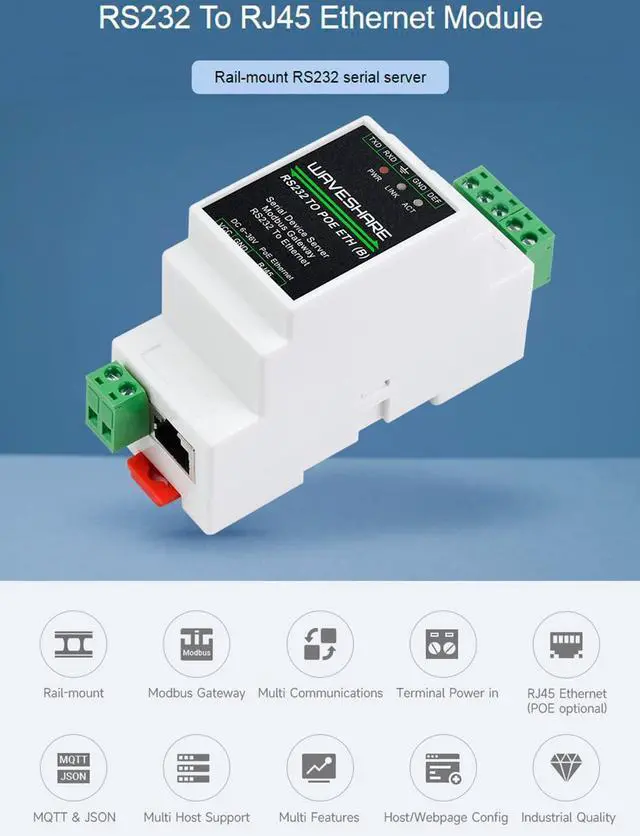

RS232 to RJ45 Ethernet Converter Adapter with POE Function,Rail-Mount RS232 Serial Server, Bi-Birectional Transparent Data Transmission Between RS232 and Ethernet, Support Modbus MQTT TCP/IP
- RS232 To RJ45 Ethernet Module with POE Function ,Rail-mount RS232 serial server. Bi-Directional Transparent Data Transmission Between RS232 And Ethernet. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 to JSON, etc.

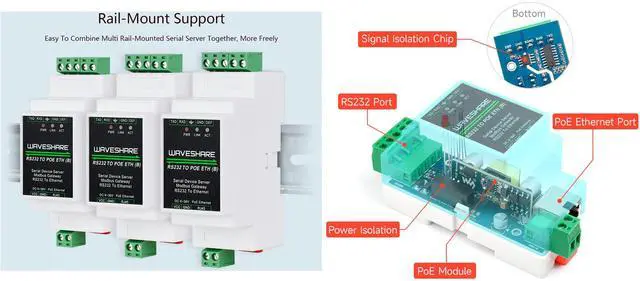

- Support Rail-Mount Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely. Support Modbus Gateway Suitable For Modbus Gridding Upgrade, Can Be Used With Specific Configuration Software.

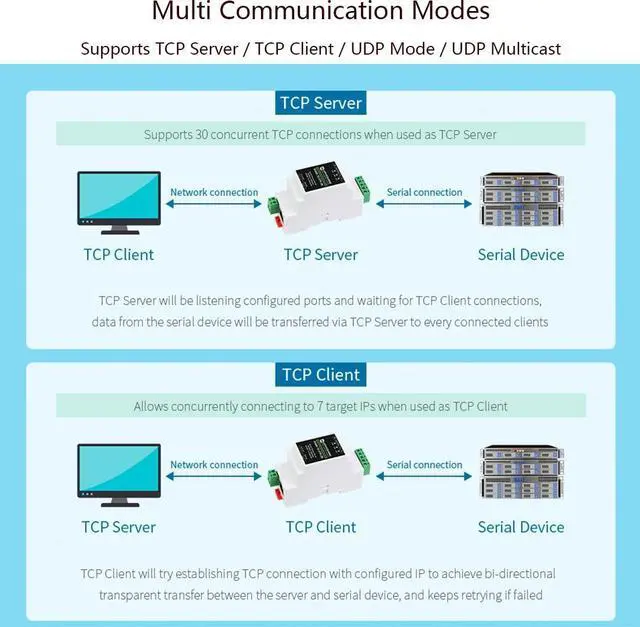

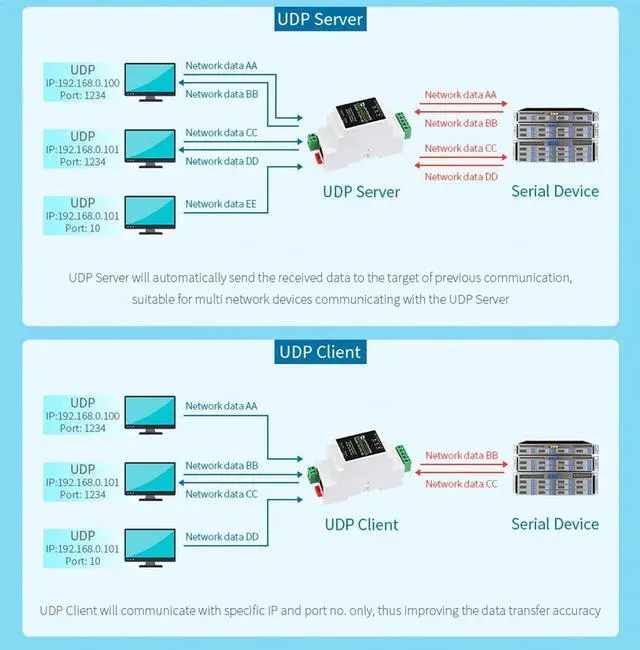

- Multi Communication Modes Supports TCP Server / TCP Client / UDP Mode / UDP Multicast. MQTT/JSON To Modbus More Flexible Conversion Between Different Protocols.
- Multi Hosts Roll-Polling Support Different Network Devices Will Be Identified And Responsed Respectively, No More Crosstalk Issue While Communicating With Multi Network Devices. User-Defined Heartbeat/Registration Packet Easy For Cloud Communication And Device Identification.
- NTP Protocol Support Getting Network Time Info For Serial
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
This is a RS232 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 to JSON, etc. The module features RS232 and Ethernet port, with POE function, uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
Product Type--Serial server, Modbus Gateway, MQTT Gateway
Basic Function--Bi-directional transparent data transmission between RS232 and Ethernet
Communication interface--RS232 port x 1, Ethernet port x 1
Power supply--6 ~ 36V DC screw terminal, or PoE port
Isolation Protection--Power isolation, Signal isolation
1. COMMUNICATION
Ethernet-- PoE network port, support IEEE 802.3 af standard, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port--Isolated RS232
2. SERIAL SPECIFICATION
Baudrate--300 ~ 115200 bps
Parity bit--none, odd, even, mark, space
Data bit--5 ~ 9 bits
3. SOFTWARE
Protocol--ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration--host, web browser, device management functions library
Communication method--TCP/IP direct communication, VCOM
Operating mode--TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
4. OTHERS
Operating temperature---40 ~ 85
Humidity range--5% ~ 95% relative humidity
Dimensions--L × W × H: 87 × 36 × 59 mm
PACKAGE CONTENT
RS232 TO ETH with POE Module x1
This is a RS232 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 to JSON, etc. The module features RS232 and Ethernet port, with POE function, uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
Specifications
Product Type--Serial server, Modbus Gateway, MQTT Gateway
Basic Function--Bi-directional transparent data transmission between RS232 and Ethernet
Communication interface--RS232 port x 1, Ethernet port x 1
Power supply--6 ~ 36V DC screw terminal, or PoE port
Isolation Protection--Power isolation, Signal isolation
1. COMMUNICATION
Ethernet-- PoE network port, support IEEE 802.3 af standard, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port--Isolated RS232
2. SERIAL SPECIFICATION
Baudrate--300 ~ 115200 bps
Parity bit--none, odd, even, mark, space
Data bit--5 ~ 9 bits
3. SOFTWARE
Protocol--ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration--host, web browser, device management functions library
Communication method--TCP/IP direct communication, VCOM
Operating mode--TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
4. OTHERS
Operating temperature---40 ~ 85
Humidity range--5% ~ 95% relative humidity
Dimensions--L × W × H: 87 × 36 × 59 mm
PACKAGE CONTENT
RS232 TO ETH with POE Module x1
