waveshare for Raspberry Pi/Jetson Nano/Windows/PC, 7inch IPS Capacitive Touch Display 1024x600, Integrated Thin and Light LCD, Support Windows/Linux/Android
- 7inch IPS Capacitive Integrated Touch Display, 1024 x 600 hardware resolution.Support backlight control, more power saving. Support Device & System Support All versions of Raspberry Pi,Jetson Nano,Windows PC. Support Windows / Linux / Android main board which has HDMI signal and USB touch signal.
- Integrated Structure Design Provide secondary development resources to facilitate integrated design. Boost simple development for embedding engineering applications quickly.

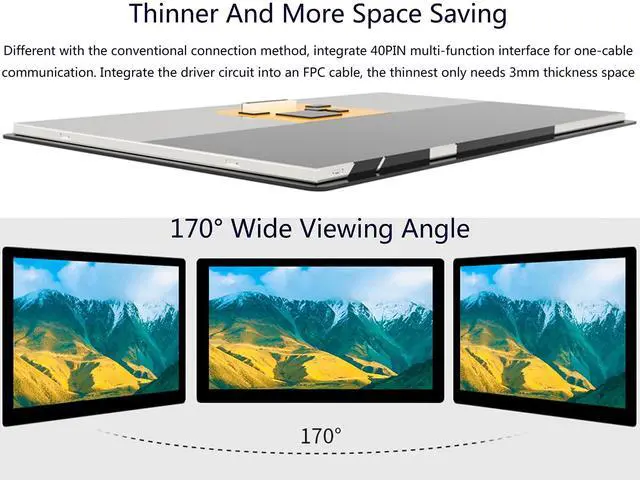

- Thinner and more space saving Different with the conventional connection method, integrate 40PIN multi-function interface for one-cable communication. Integrate the driver circuit into an FPC cable, the thinnest only needs 3mm thickness space

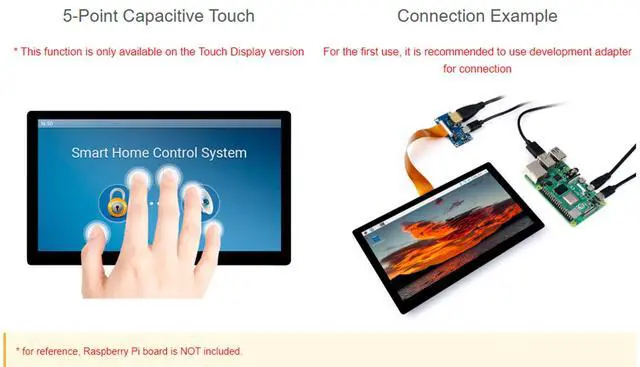

- 5-Point Capacitive Touch Gently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation. Adapting touch function with USB signal, support 5-point touch.
- Application Scenarios New energy, electronic sentinel, human-machine in
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
This 7inch IPS Integrated Touch Display is for customers who need a lightweight HDMI display. As it is thinner and lighter than any traditional HDMI display, users can do the second development by themselves easily.
For simplifying the display, we integrate the power supply, display, touch, and control signal as the 40PIN multi-functional header. Just need an FPC cable, you can lower the project cost with the thinnest display, and apply it in any embedded projects.
Feature
7inch IPSscreen, 1024 x 600 hardware resolution.
Capacitive touch, support five-point touch.
COF thin and light structure, providing 40PIN interface one-line communication, integrated development is more convenient.
High compatibility, when used with development accessories, it supports main control boards such as Raspberry Pi, PC, and Jetson nano.
Support backlight control, more power saving.

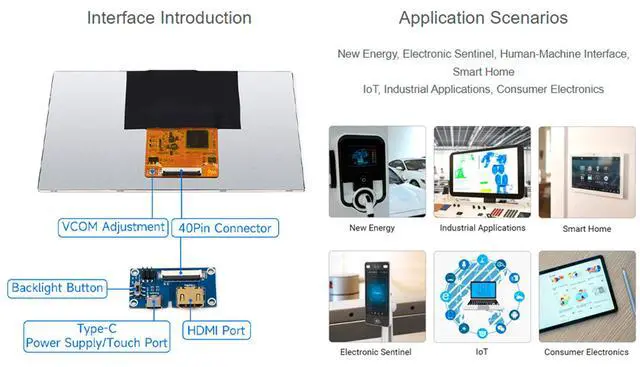

Adapter Board pin header definition & Function introduction
5V---DC 5V power input
3V3---DC 3.3V power output
GND---Ground (0V)
EN---Backlight enable
PWM---Backlight adjustment
IO---NC
Online Tutorial/Working with Raspberry Pi/ PC guide: n9. cl/9ddwz
Package Content

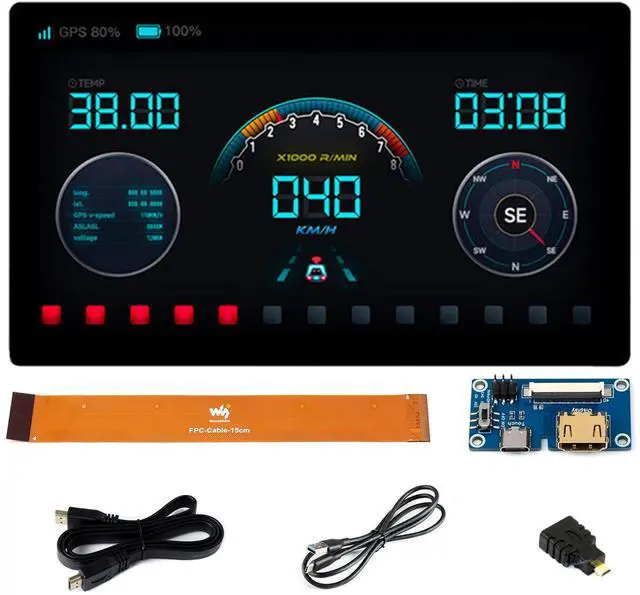

7inch IPS Touch Display x1
FPC cable (~ 15cm) x1
Adapter Development Board Accessories
Note:
Some PCs do not support plug-and-play with HDMI devices. Generally, they can be used normally after restarting the system.
Insufficient power supply of the USB interface of some PCs will cause the LCD screen to flicker, which can be restored to normal use after connecting to an external 5V/1A power supply.
QA:
What is the power consumption of the 70H-1024600 series?
Answer:
Under the power supply of 5V, the working current is about 450mA when the backlight is on, and when the backlight is off it is about 100mA.
This 7inch IPS Integrated Touch Display is for customers who need a lightweight HDMI display. As it is thinner and lighter than any traditional HDMI display, users can do the second development by themselves easily.
For simplifying the display, we integrate the power supply, display, touch, and control signal as the 40PIN multi-functional header. Just need an FPC cable, you can lower the project cost with the thinnest display, and apply it in any embedded projects.
Feature
7inch IPSscreen, 1024 x 600 hardware resolution.
Capacitive touch, support five-point touch.
COF thin and light structure, providing 40PIN interface one-line communication, integrated development is more convenient.
High compatibility, when used with development accessories, it supports main control boards such as Raspberry Pi, PC, and Jetson nano.
Support backlight control, more power saving.
Adapter Board pin header definition & Function introduction
5V---DC 5V power input
3V3---DC 3.3V power output
GND---Ground (0V)
EN---Backlight enable
PWM---Backlight adjustment
IO---NC
Online Tutorial/Working with Raspberry Pi/ PC guide: n9. cl/9ddwz
Package Content
7inch IPS Touch Display x1
FPC cable (~ 15cm) x1
Adapter Development Board Accessories
Note:
Some PCs do not support plug-and-play with HDMI devices. Generally, they can be used normally after restarting the system.
Insufficient power supply of the USB interface of some PCs will cause the LCD screen to flicker, which can be restored to normal use after connecting to an external 5V/1A power supply.
QA:
What is the power consumption of the 70H-1024600 series?
Answer:
Under the power supply of 5V, the working current is about 450mA when the backlight is on, and when the backlight is off it is about 100mA.
