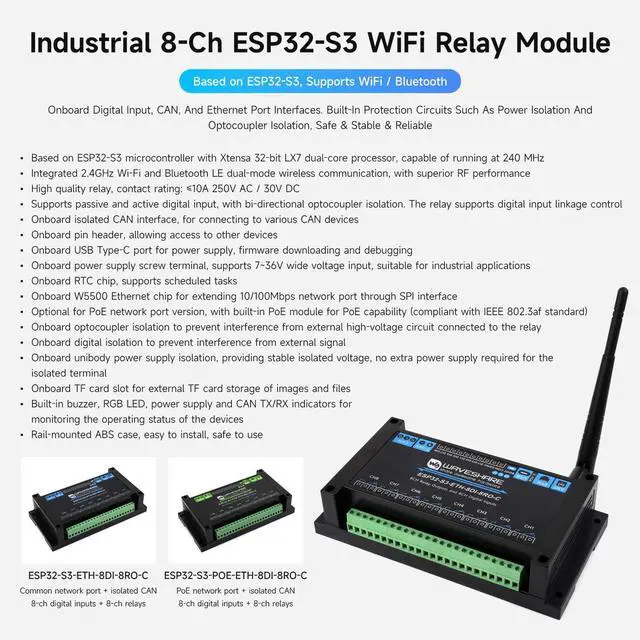

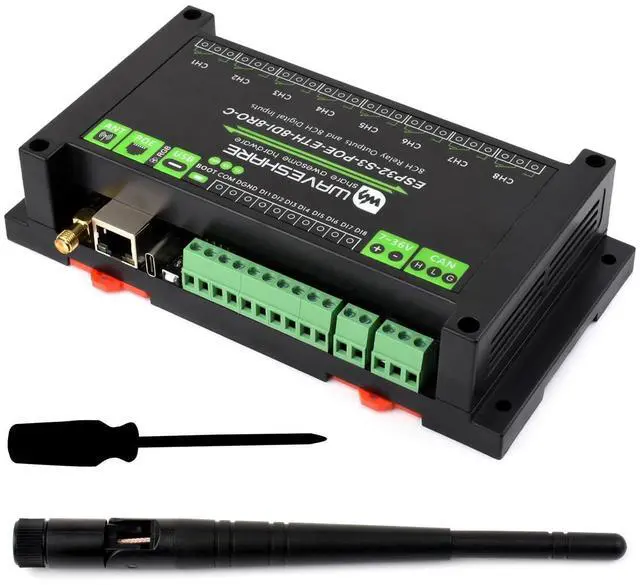

Waveshare Industrial 8-Channel ESP32-S3 WiFi Relay Module, Isolated CAN Interface, Xtensa 32-bit LX7 Dual-core Processor, 240MHz, Multiple Isolation Protection Circuits, PoE Ethernet Port

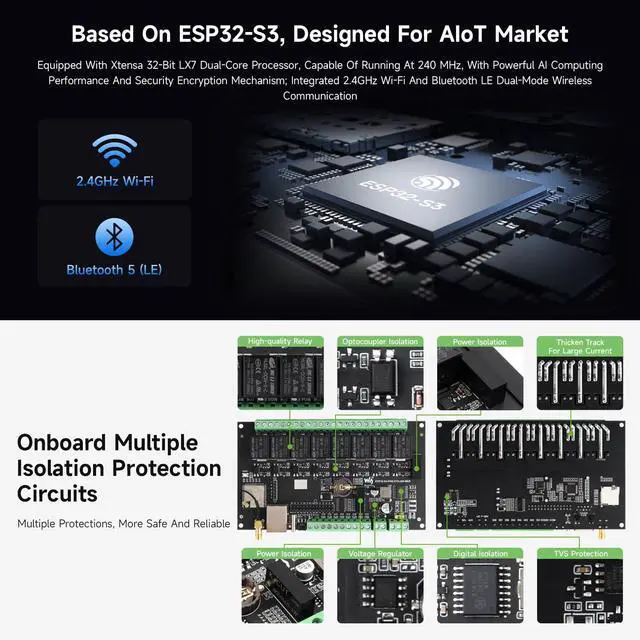

- ESP32-S3 Microcontroller: Powered by the ESP32-S3 microcontroller with a dual-core Xtensa 32-bit LX7 processor, running at up to 240 MHz for optimal performance.
- Wireless Communication: Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode support, ensuring excellent RF performance for seamless connectivity.
- Relay and Digital Input: High-quality relay with a contact rating of 10A 250V AC / 30V DC, supporting both passive and active digital inputs with bi-directional optocoupler isolation and digital input linkage control.
- CAN Interface & Connectivity: Equipped with an isolated CAN interface for communication with CAN devices, plus a pin header for connecting to other external devices. It also includes an optional PoE version with built-in PoE capability for power over Ethernet.
- Power, Monitoring, and Installation: Onboard USB Type-C for power, debugging, and firmware downloading, with a wide voltage input (7~36V). Additional features include an RTC chip, W5500 Ether
+
+
