Industrial Isolated USB to RS485/422 Converter Adapter, Onboard Original FT232RL and SP485EEN Chip, Transmission Distance up to 1.2km,Support Linux, Android, Wince, Win11/10/8.1/8/7/XP, etc.
- USB to RS485/422 Industrial Grade Isolated Converter, Onboard Original FT232RL and SP485EEN Chip, provids stable communication with built-in galvanic isolation, lightningproof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement. Support Wall-mount And Rail-Mount.

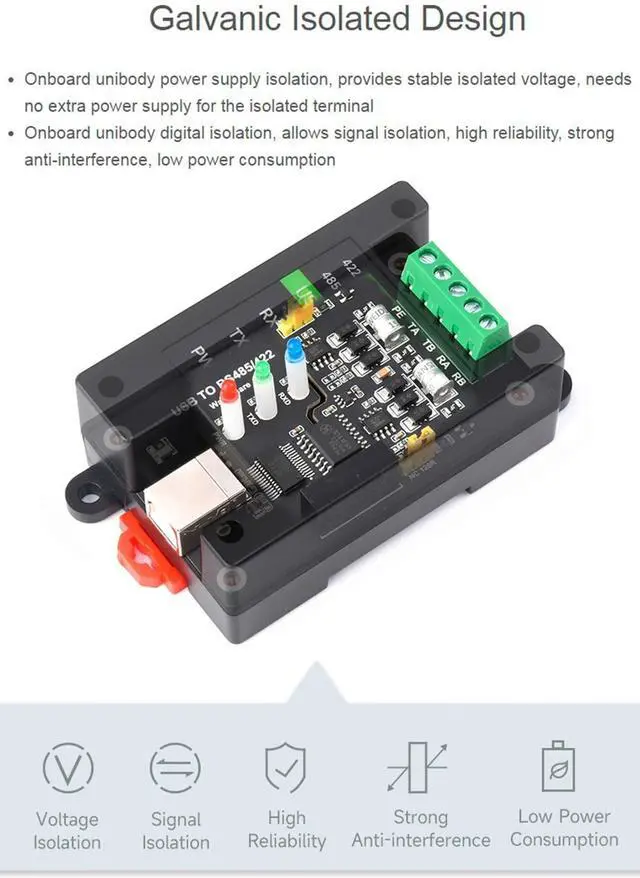

- Galvanic isolated Design Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.

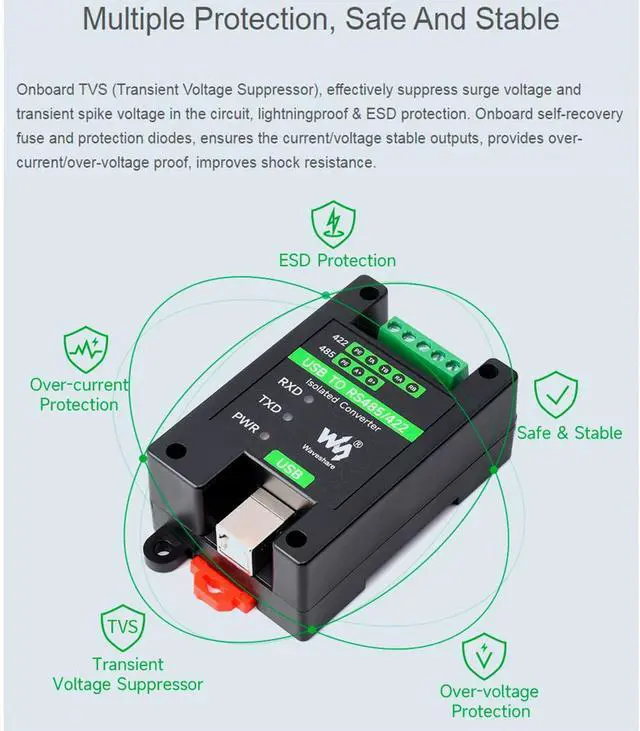

- Multiple Protection, Safe And Stable Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes,ensures the current/voltage stable outputs, provides over-current/over-voltage proof, imp
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description

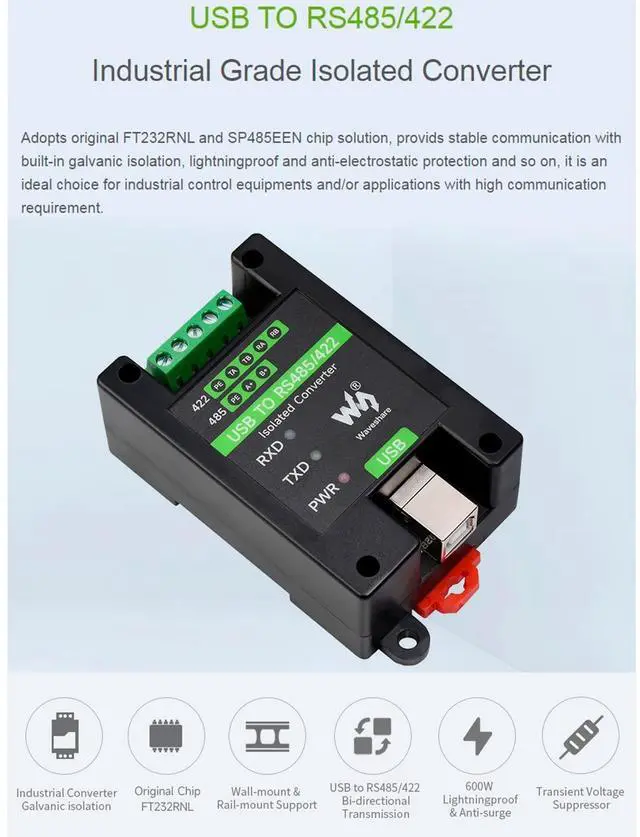

USB TO RS485/422, Adopts original FT232RNL and SP485EEN chip solution, provids stable communication with built-in galvanic isolation, lightningproof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
Specification Model: Industrial grade isolated USB to RS485/422 converter
Baud Rate:
FT232RNL: 300bps ~ 3Mbps
Host Port: USB Device Port: RS485/422
1. USB
Operating voltage: 5V
Connector: USB-B
Protection: 200mA self-recovery fuse, ESD protection
Transmission distance: About 5m
2. RS485/422
Connector: Screw terminal
Pins: A+, B-, PE
Direction control: Hardware automatic control
Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance: About 1.2 km (low rate)
Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
3. LED indicators
PWR: Red power indicator, light up when there is USB connection and voltage is detected
TXD: Green TX indicator, light up when the USB port sends data
RXD: Blue RX indicator, light up when the device ports send data back
4. Operating environment
Temperature: -15 ~ 70
Humidity: 5%RH ~ 95%RH
5. Appearance
Enclosure: Rail-mount ABS case, suitable for 35mm DIN rail
Dimensions: 81.9 × 54.0 × 32.0 mm
Operating system: Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP, etc.
Online Document: n9. cl/86gup

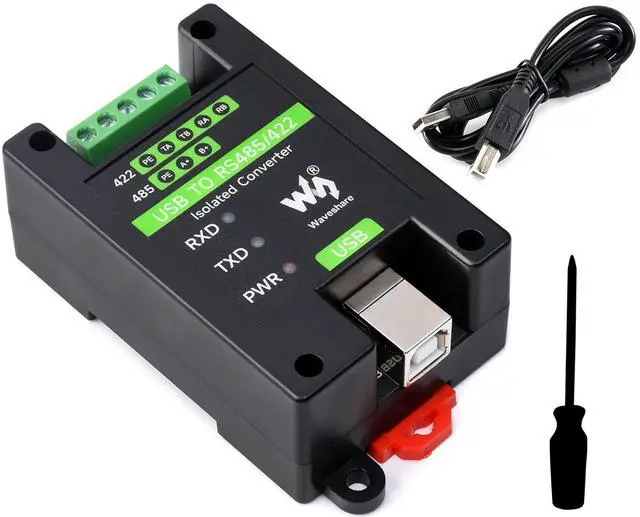

PACKAGE CONTENT
USB TO RS485/422 x1
USB-A male to USB-B male cable ~ 1.2 m x1
Screwdriver x1
USB TO RS485/422, Adopts original FT232RNL and SP485EEN chip solution, provids stable communication with built-in galvanic isolation, lightningproof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
Specification Model: Industrial grade isolated USB to RS485/422 converter
Baud Rate:
FT232RNL: 300bps ~ 3Mbps
Host Port: USB Device Port: RS485/422
1. USB
Operating voltage: 5V
Connector: USB-B
Protection: 200mA self-recovery fuse, ESD protection
Transmission distance: About 5m
2. RS485/422
Connector: Screw terminal
Pins: A+, B-, PE
Direction control: Hardware automatic control
Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance: About 1.2 km (low rate)
Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
3. LED indicators
PWR: Red power indicator, light up when there is USB connection and voltage is detected
TXD: Green TX indicator, light up when the USB port sends data
RXD: Blue RX indicator, light up when the device ports send data back
4. Operating environment
Temperature: -15 ~ 70
Humidity: 5%RH ~ 95%RH
5. Appearance
Enclosure: Rail-mount ABS case, suitable for 35mm DIN rail
Dimensions: 81.9 × 54.0 × 32.0 mm
Operating system: Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP, etc.
Online Document: n9. cl/86gup
PACKAGE CONTENT
USB TO RS485/422 x1
USB-A male to USB-B male cable ~ 1.2 m x1
Screwdriver x1
