RS232/485 to WiFi Ethernet Serial Server Converter, Modbus Gateway, MQTT Gateway, Support Serial to WIFI, Serial to Ethernet, Ethernet to WIFI, Serial to HTTPD Client etc. DC 6~36V Power Supply

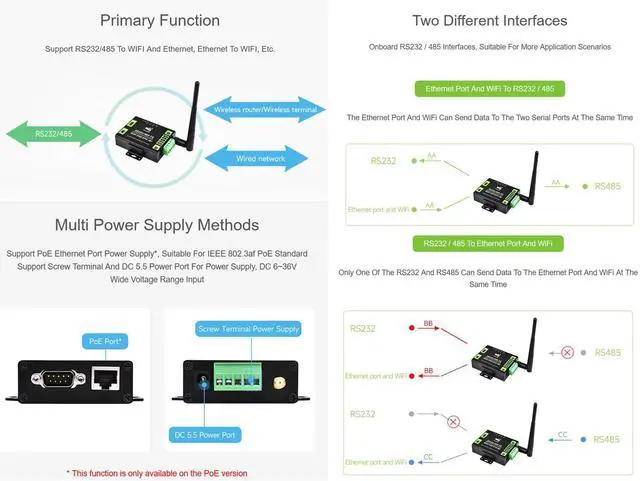

- RS232/485 Serial to WiFi Ethernet Converter combines serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. multi functions in one, with RS232, RS485, WIFI and Ethernet interfaces, support serial port to WIFI, serial port to Ethernet, Ethernet to WIFI, etc.

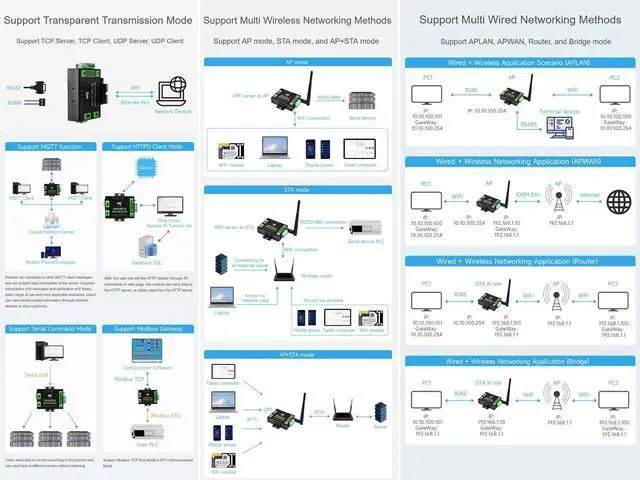

- Industrial grade serial server RS232/485 to WiFi and Ethernet support TCP server, TCP client, UDP server, UDP client transparent transmission mode
- RS232/485 to WiFi Eth serial device server support AP mode, STA mode, and AP+STA mode multi wireless networking methods, support APLAN, APWAN, Router, and Bridge mode multi wired networking methods
- Featrues multi configuration methods, AT command mode, socket distribution protocol, hardware protection, customized registration packets, heartbeat packets
- Support screw terminal and DC 5.5 power port for power supply, DC 6~36V wide voltage range input. Industrial aluminum alloy case, wall-mount and rail-mount support
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

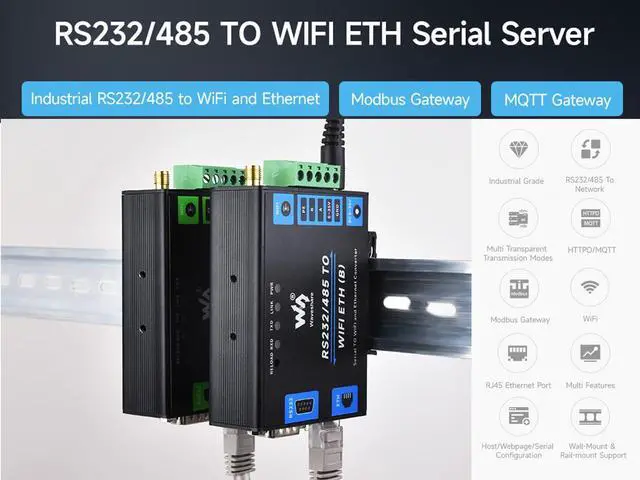

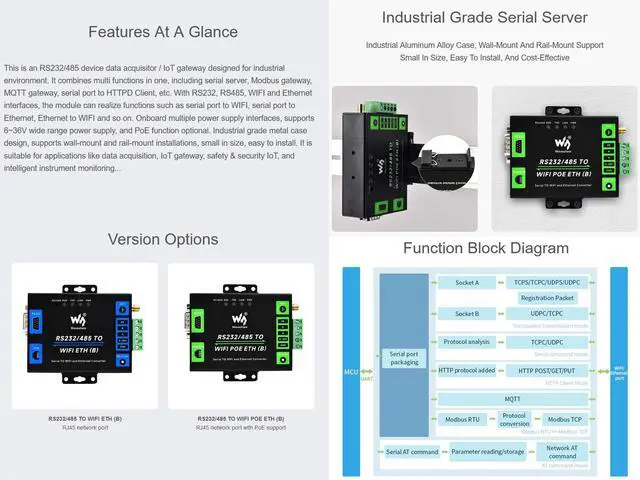

This is an RS232/485 device data acquisitor / IoT gateway designed for industrial environment. Industrial grade serial server RS232/485 to WiFi and Ethernet, Modbus Gateway, MQTT Gateway, metal case, wail-mount and rail-mount support
Product Description--Industrial rail-mount/wall-mount module with metal case
Power supply--DC 6~36V
Power supply method--DC 5.5 power port, screw terminal
Dimensions(L × W × H)-- 84.00 × 64.00 × 24.00 mm
Communication
Ethernet--10 / 100M auto-negotiation RJ45 connector
WIFI-- 802.11 b/g/n compliant
Serial port
--RS232 (ESD/EFT)
--RS485 (ESD/EFT/surge protection)
Wireless Specification
Frequency Band-- 2.412 ~ 2.484 GHz
Wireless network--Station / AP / AP+Station Mode
Security mechanism--WPA-PSK / WPA2-PSK
Encryption type--TKIP / AES
Transmitting power
-- 802.11 b: +19dBm (Max. @11Mbps)
-- 802.11 g: +18dBm (Max. @54Mbps)
-- 802.11 n: +17dBm (Max. @HT20, MCS7); +17dBm (Max. @HT40, MCS7)
Receiving sensitivity
-- 802.11 b: -89dBm (@11Mbps)
-- 802.11 g: -81dBm (@54Mbps)
-- 802.11 n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
Serial Specification
Baudrate--300 ~ 460800 bps
Parity bit--none, odd, even, mark, space
Data bit--5 ~ 9 bits
Software
Protocol--TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration--host, web browser, serial AT command
Communication method--TCP/IP direct communication, VCOM
Operating mode--Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
Environment Requirement
Operating temperature-- -40 ~ 85
Humidity range-- 5% ~ 95% relative humidity

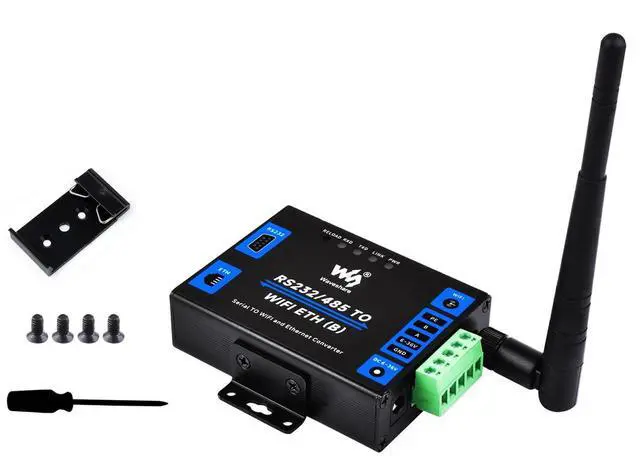

Package Content
RS232/485 TO WIFI ETH (B) x1
2.4G WiFi antenna x1
Rail-mount buckle x1
Screwdriver x1
Screws pack x1
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
This is an RS232/485 device data acquisitor / IoT gateway designed for industrial environment. Industrial grade serial server RS232/485 to WiFi and Ethernet, Modbus Gateway, MQTT Gateway, metal case, wail-mount and rail-mount support
Specifications
Product Description--Industrial rail-mount/wall-mount module with metal case
Power supply--DC 6~36V
Power supply method--DC 5.5 power port, screw terminal
Dimensions(L × W × H)-- 84.00 × 64.00 × 24.00 mm
Communication
Ethernet--10 / 100M auto-negotiation RJ45 connector
WIFI-- 802.11 b/g/n compliant
Serial port
--RS232 (ESD/EFT)
--RS485 (ESD/EFT/surge protection)
Wireless Specification
Frequency Band-- 2.412 ~ 2.484 GHz
Wireless network--Station / AP / AP+Station Mode
Security mechanism--WPA-PSK / WPA2-PSK
Encryption type--TKIP / AES
Transmitting power
-- 802.11 b: +19dBm (Max. @11Mbps)
-- 802.11 g: +18dBm (Max. @54Mbps)
-- 802.11 n: +17dBm (Max. @HT20, MCS7); +17dBm (Max. @HT40, MCS7)
Receiving sensitivity
-- 802.11 b: -89dBm (@11Mbps)
-- 802.11 g: -81dBm (@54Mbps)
-- 802.11 n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
Serial Specification
Baudrate--300 ~ 460800 bps
Parity bit--none, odd, even, mark, space
Data bit--5 ~ 9 bits
Software
Protocol--TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration--host, web browser, serial AT command
Communication method--TCP/IP direct communication, VCOM
Operating mode--Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
Environment Requirement
Operating temperature-- -40 ~ 85
Humidity range-- 5% ~ 95% relative humidity
Package Content
RS232/485 TO WIFI ETH (B) x1
2.4G WiFi antenna x1
Rail-mount buckle x1
Screwdriver x1
Screws pack x1
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
