waveshare 8-CH Modbus RTU Relay Module with RS485 Interface, Modbus RTU Protocol, 7~36V Power Supply, Multi Isolation Protection Circuits Such as Power Isolation, Magnetical Isolation, TVS Diode etc.

Be the first to review this product...

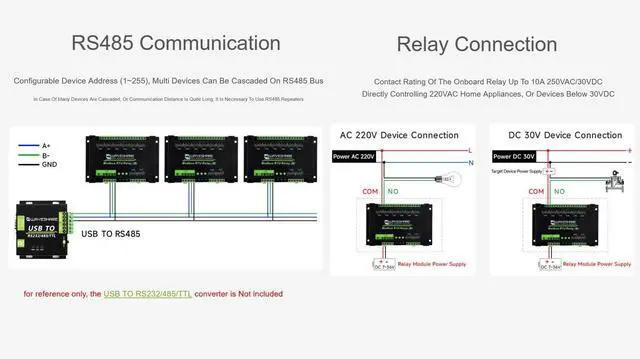

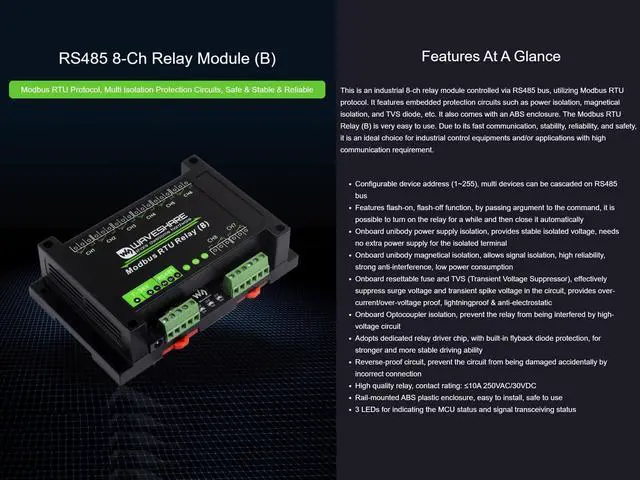

Industrial Modbus RTU 8-ch Relay Module with RS485 interface, configurable device address (1~255), multi devices can be cascaded on RS485 bus; features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically

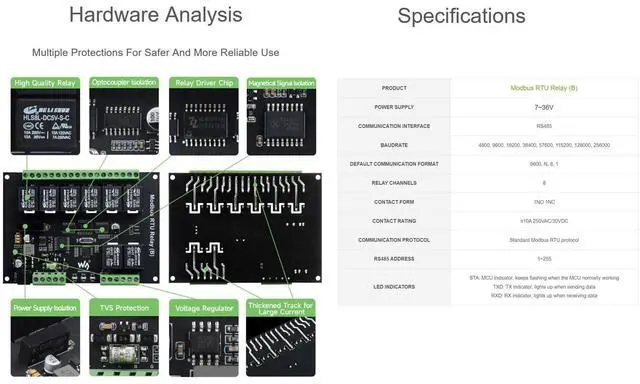

RS485 8-ch Relay Module onboard unibody power supply isolation, unibody magnetical isolation, resettable fuse and TVS, Optocoupler isolation, Reverse-proof circuit etc. multi isolation protection circuits
Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
High quality relay, contact rating: 10A 250VAC/30VDC

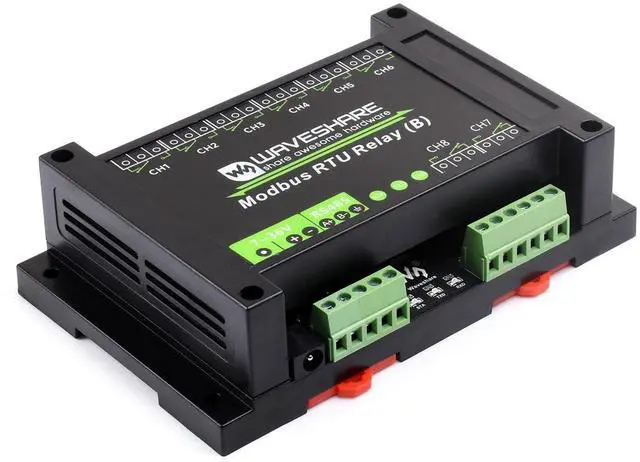

3 LEDs for indicating the MCU status and signal transceiving status, rail-mounted ABS plastic enclosure, easy to install, safe to use

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Overview
Industrial Modbus RTU 8-ch Relay Module (B) with RS485 Interface, Modbus RTU Protocol, Multi Isolation Protection Circuits, 7~36V Power Supply, Safe & Stable & Reliable

Specifications

Power Supply: 7~36V
Communication Interface: RS485
Baudrate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default Communication Format: 9600, N, 8, 1
Relay Channels: 8
Contact Form: 1NO 1NC
contact Rating: 10A 250VAC/30VDC
Communication Protocol: Standard Modbus RTU protocol
RS485 Address: 1~255
LED Indicators:
STA: MCU indicator, keeps flashing when the MCU normally working
TXD: TX indicator, lights up when sending data
RXD: RX indicator, lights up when receiving data

Package Content
Modbus RTU Relay (B) x1

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
