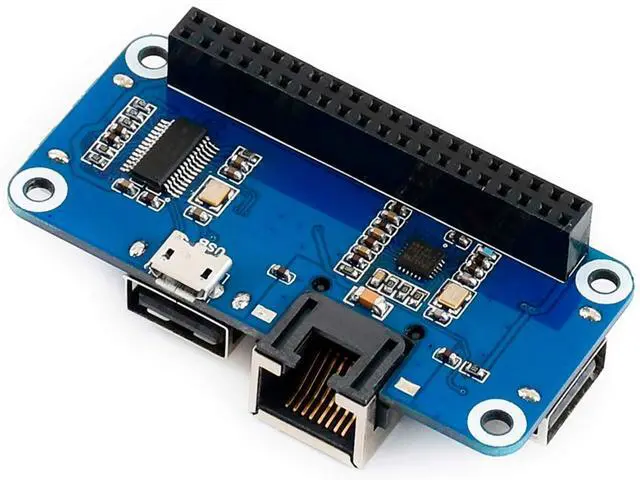

Ethernet/USB HUB HAT Expansion Board for Raspberry Pi 5/4B/3B+/3B/2B/Zero/Pi Zero W/Pi Zero 2W,with RJ45 10/100M Ethernet Port (Based on RTL8152B Chip) and Three USB Ports,Compatible with USB2.0/1.1
- This Raspberry Pi Hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.(Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45 Ethernet Port, 3x USB Ports)
- It can work with various versions of the Pi( Raspberry Pi B+ / 2B / 3B / 3B+ /4B/ Zero / Zero W / Zero WH),and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.
- 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip.;3x USB ports, compatible with USB2.0/1.1;
- Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port
- Operating voltage: 5V. Dimension: 65mm 30mm. Mounting hole size: 3.0mm.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

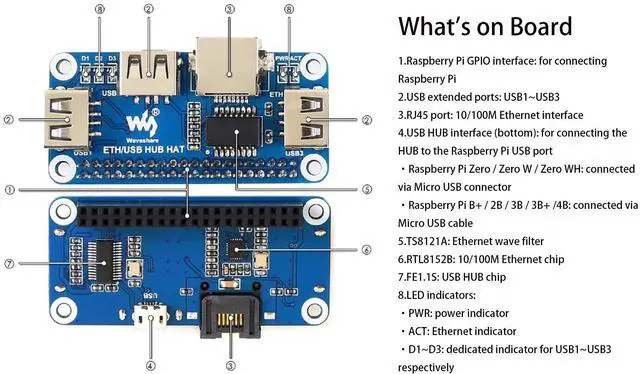

Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45 Ethernet Port, 3x USB Ports. OverviewThis Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection. It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH/Pi Zero 2 W/ Zero 2 WH. Features3x USB ports, compatible with USB 2.0 / 1.1, 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip, Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB portWhat's on Board1.
Raspberry Pi GPIO interface: for connecting Raspberry Pi2.
USB extended ports: USB1~USB33.
RJ45 port: 10/100M Ethernet interface4.
USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB portRaspberry Pi Zero / Zero W /
Zero WH: connected via Micro USB connector (check packing list) Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable (check packing list) 5.
TS8121A: Ethernet wave filter6.
RTL8152B: 10/100M Ethernet chip7.
FE 1.1S: USB HUB chip8.
LED indicators:
PWR: power
indicatorACT: Ethernet
indicatorD1~D3: dedicated indicator for
USB1~USB3 respectivelySpecificationsOperating voltage:
5VDimension: 65mm x 30mm
Mounting hole size: 3.0 mmOnline Development Resources /User

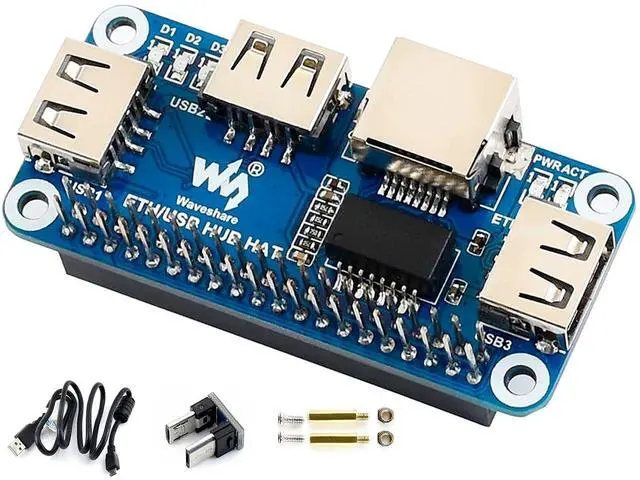

Manuall: //bit. ly/3UANKH5Package Conten1. ETH/USB HUB HAT x12. Micro USB connector x13. Micro USB cable x14. RPi screws pack (2pcs) x1
Raspberry Pi GPIO interface: for connecting Raspberry Pi2.
USB extended ports: USB1~USB33.
RJ45 port: 10/100M Ethernet interface4.
USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB portRaspberry Pi Zero / Zero W /
Zero WH: connected via Micro USB connector (check packing list) Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable (check packing list) 5.
TS8121A: Ethernet wave filter6.
RTL8152B: 10/100M Ethernet chip7.
FE 1.1S: USB HUB chip8.
LED indicators:
PWR: power
indicatorACT: Ethernet
indicatorD1~D3: dedicated indicator for
USB1~USB3 respectivelySpecificationsOperating voltage:
5VDimension: 65mm x 30mm
Mounting hole size: 3.0 mmOnline Development Resources /User
Manuall: //bit. ly/3UANKH5Package Conten1. ETH/USB HUB HAT x12. Micro USB connector x13. Micro USB cable x14. RPi screws pack (2pcs) x1
