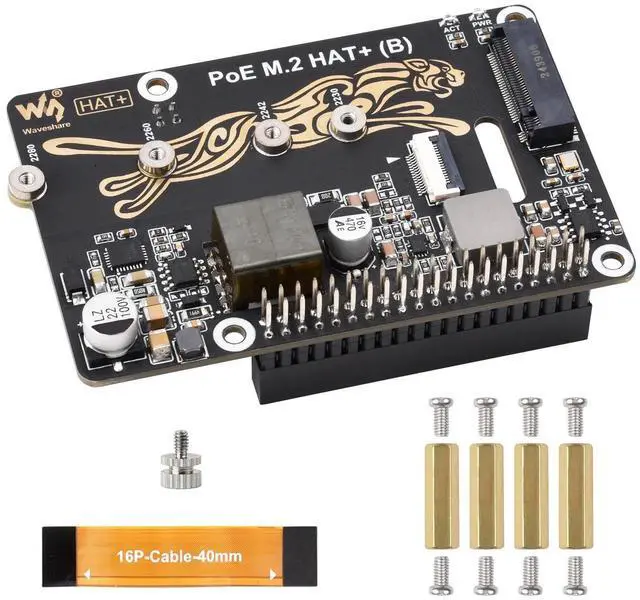

Waveshare PCIe to M.2 Adapter with PoE Function HAT+ (B), Compatible with Raspberry Pi 5, Supports POE NVMe Drive Protocol 2230/2242 / 2260/2280 M.2 Solid State Drive, High-Speed Reading/Writing

Be the first to review this product...

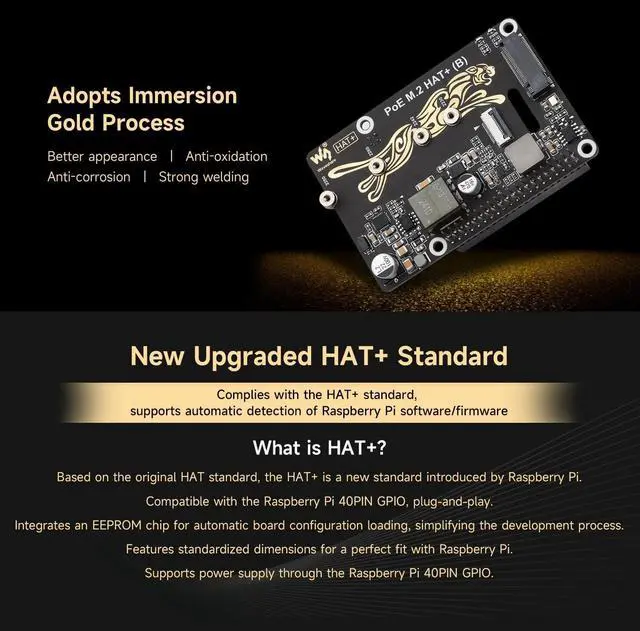

Based on 16PIN PCIe Interface of Raspberry Pi 5.. Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

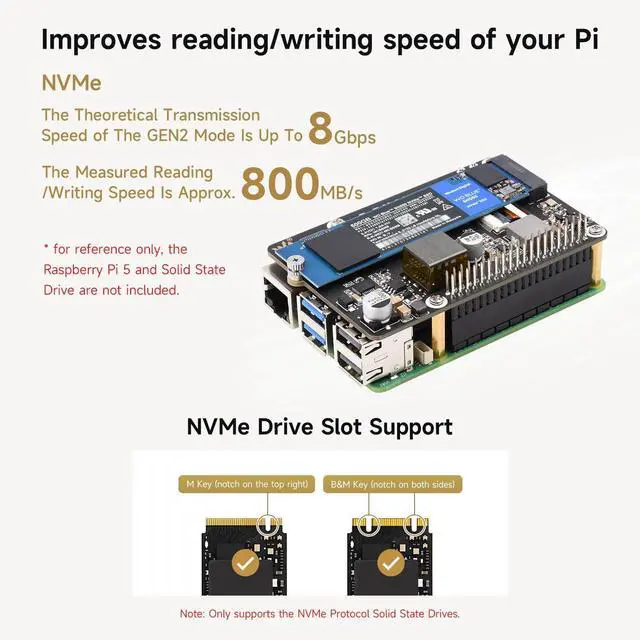

Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

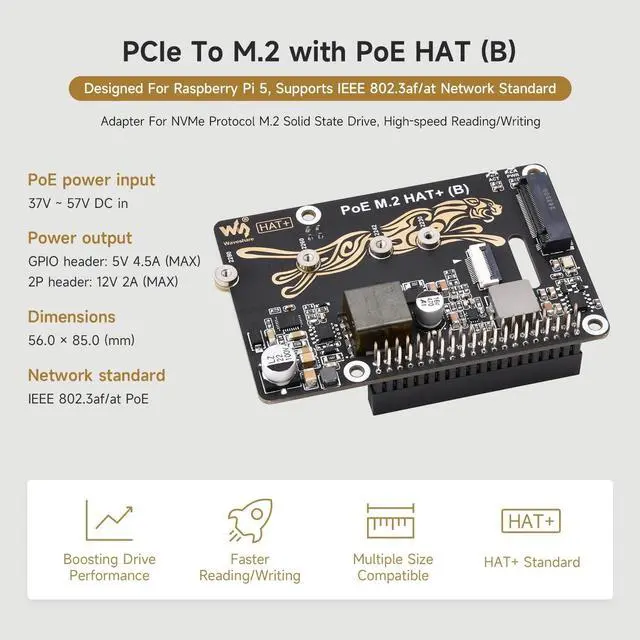

Providing both network connection and power supply for your Raspberry Pi in one cable
5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power) be able to power extra devices while providing stable power to Raspberry Pi
Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Based on 16PIN PCIe Interface of Raspberry Pi 5.. Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs ^^ Compatible With 2230 / 2242 / 2260 / 2280 Size M. 2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive ^^ Providing both network connection and power supply for your Raspberry Pi in one cable ^^ 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power) be able to power extra devices while providing stable power to Raspberry Pi ^^
Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
