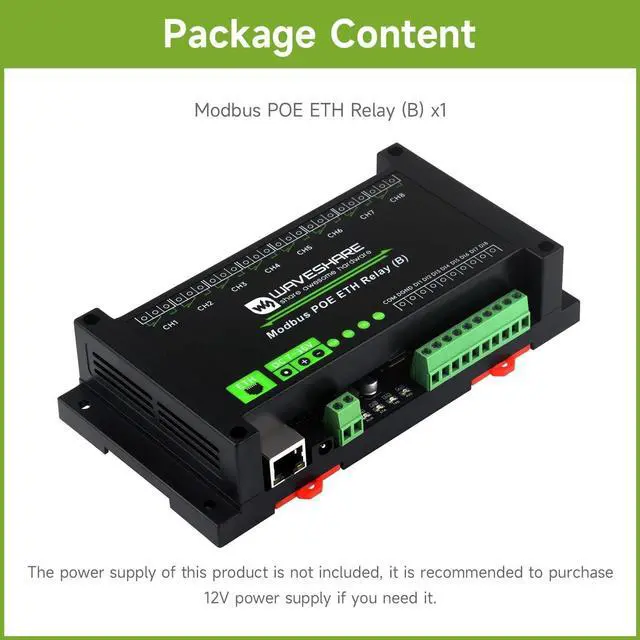

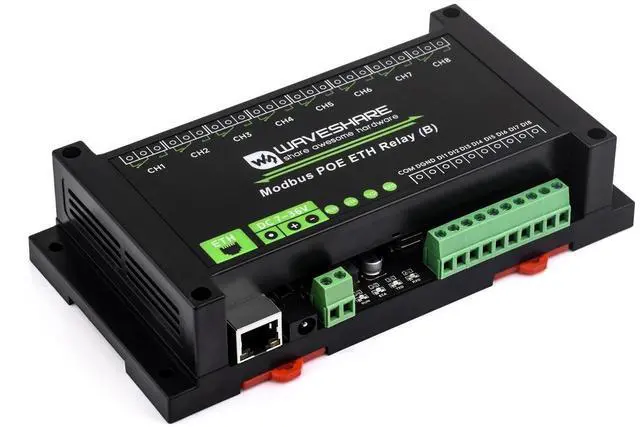

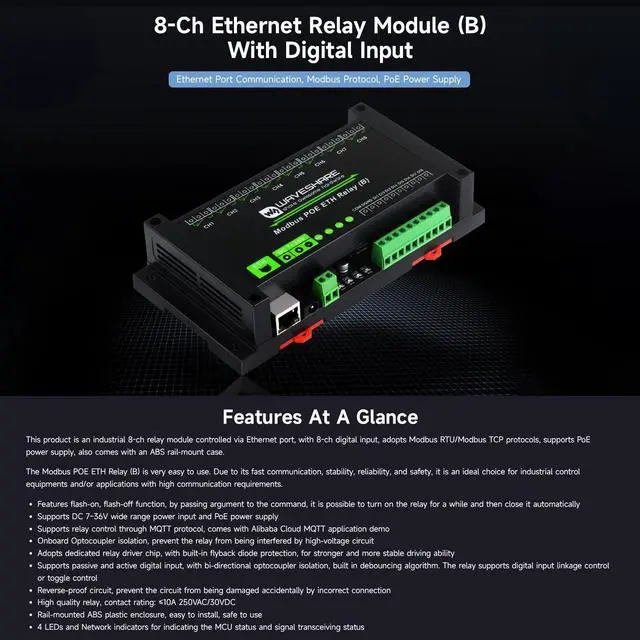

Waveshare 8-Ch Ethernet Relay Module (B) with Digital Input, Modbus RTU/Modbus TCP Protocol, PoE Port Communication, with Various Isolation and Protection Circuits, Industrial Grade Rail-Mount Case

Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically. Supports DC 7~36V wide range power input and PoE power supply ^^ Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo. Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit ^^ Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability. Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm.

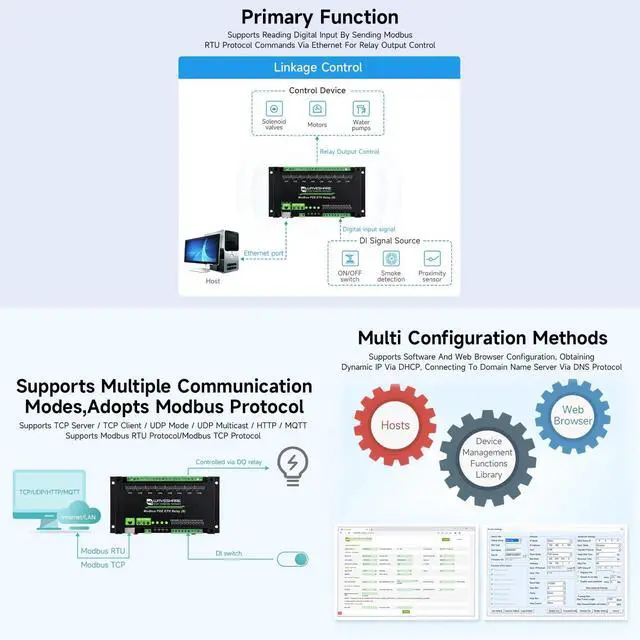

The relay supports digital input linkage control or toggle control ^^ Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection. High quality relay, contact
rating: 10A 250VAC/30VDC. Rail-mounted ABS plastic enclosure, easy to install, safe to use. 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status ^^ Rich WiKi Resources We provide official Wiki resources, please contact us for more information.
