Power Over Ethernet HAT PoE HAT with Metal Heatsink for Raspberry Pi 5, Onboard Cooling Fan, Supports 802.3af/at Network, 12V and 5V Power Outputs Easy for More Peripherals

Power Over Ethernet HAT (F) with Metal Heatsink for Raspberry Pi 5, High Power, Onboard Cooling Fan, Supports 802.3 af/at network standardOverviewThe PoE HAT (F) is a 802.3 af/at-compliant Power Over Ethernet accessory for the Raspberry Pi
5. Pin headers on the top for easy access to other Raspberry Pi expansion boards. By using this small HAT and some proper 802.3 af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable. Features1. Based on standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi

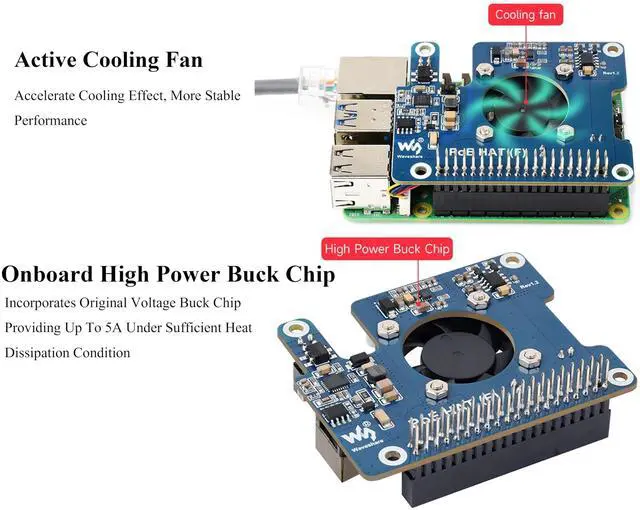

5. Pin headers on the top for easy access to other Raspberry Pi expansion boards2. PoE (Power Over Ethernet) capabilityIEEE 802.3 af/at-compliant3. Fully isolated switched-mode power supply (SMPS) 4. Onboard high speed active cooling fan, with metal heatsink, better heat dissipation5.

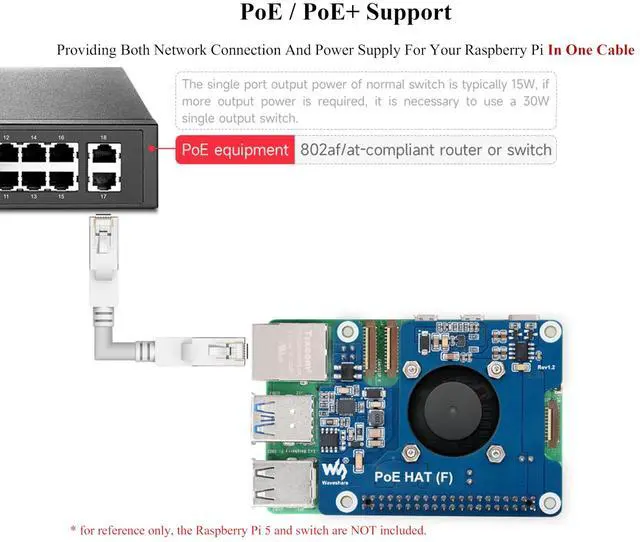

Power Over Ethernet: providing both network connection and power supply for your Raspberry Pi in one cable6. Onboard 5V

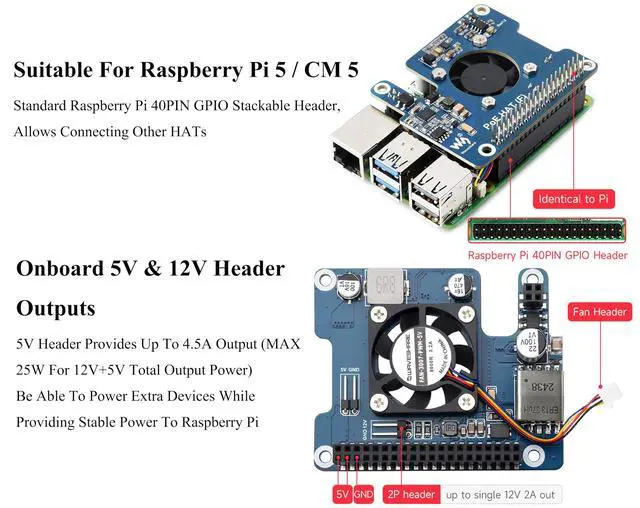

& 12V header outputs: 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry Pi7.
Onboard MP8759GD buck chip: Incorporates original voltage buck chip, providing up to 5A under sufficient heat dissipation conditionSpecificationsPoE power input: 37V ~ 57V
DC inPower output: GPIO
header: 5V 4.5A (MAX); 2P header: 12V 2A (MAX)
Dimensions: 56.5
x 70.0 mmNetwork standard: IEEE 802.3 af/at PoEHow to
Install: Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT
Online Development Resources /User

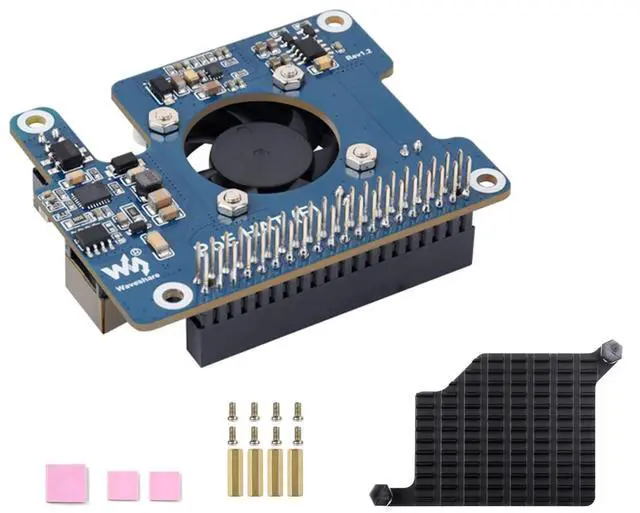

Manual: bit. ly/3H5wFyZPackage ContentPoE HAT (F) x1Metal heatsink x1Thermal tape (3PCS) x1
