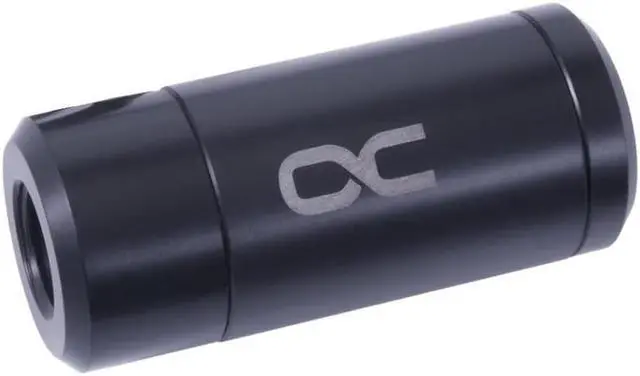

Alphacool ES High Flow and Temperature Sensor with RPM Signal

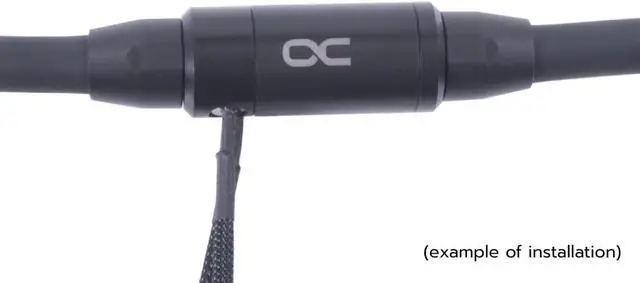

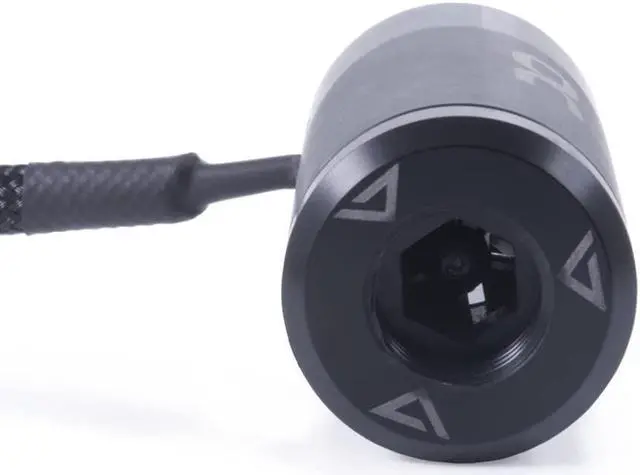

The Alphacool ES "HighFlow" with PWM signal is a sensor for liquid temperature and liquid flow that can be easily integrated into any water circuit. Integration made easy The Alphacool ES "HighFlow" flow and temperature sensor is very compact and can be integrated into any water loop thanks to its two G1/4" internal threads. It does not matter whether the system is equipped with soft tube or HardTubes. Simply screw the appropriate connections to the sensor and then mount it at any position in the loop. Temperature sensor A classic NTC 10 kOhm thermistor is used as the sensor.

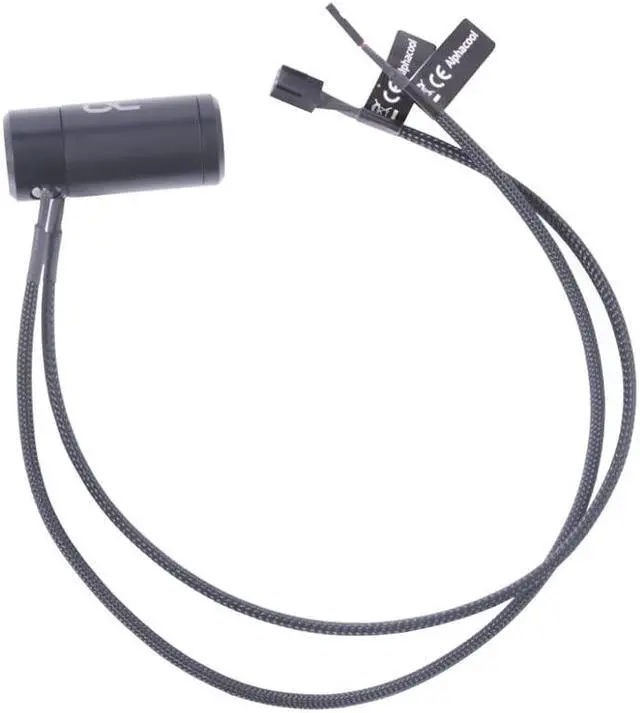

The readable temperature range is between -40 and 125 degree C. The cable is 43.5 cm long and terminates in a typical 2-pin connector. Many mainboards now offer direct connection options for such sensors. Please check the manual of your mainboard. Of course, there are also various external controllers that offer a connection for the sensor (controller with NTC connection). A corresponding readout device is not included in the scope of delivery. Flow sensor The flow sensor enables continuous measurement of the water flow within. The sensor has a 42cm sensor cable included in the scope of delivery and corresponding connectors.

Technical Specification: L x W x H 58 x 25 x 25 mm Material Acetal Colour Black Weight 45 g Threads 2x G1/4" internal thread (for max. 5mm thread length) Cable length hall sensor 420 mm Cable length temperature sensor 435 mm
Model: 17558
