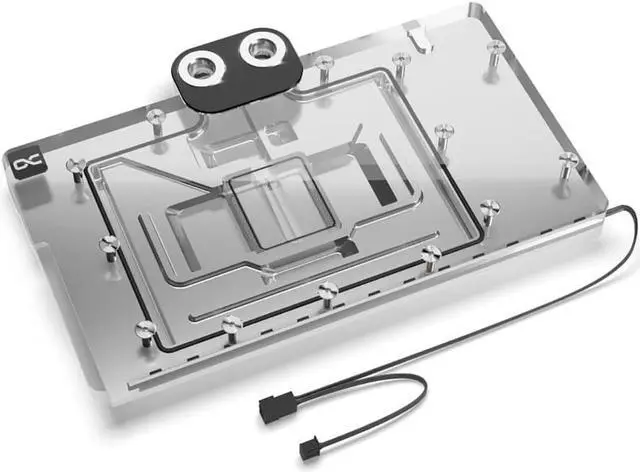

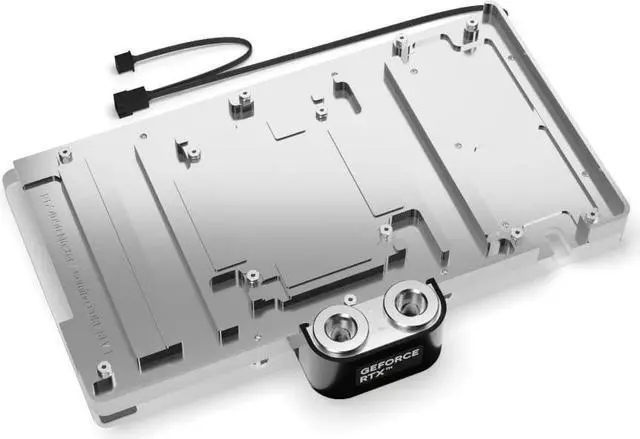

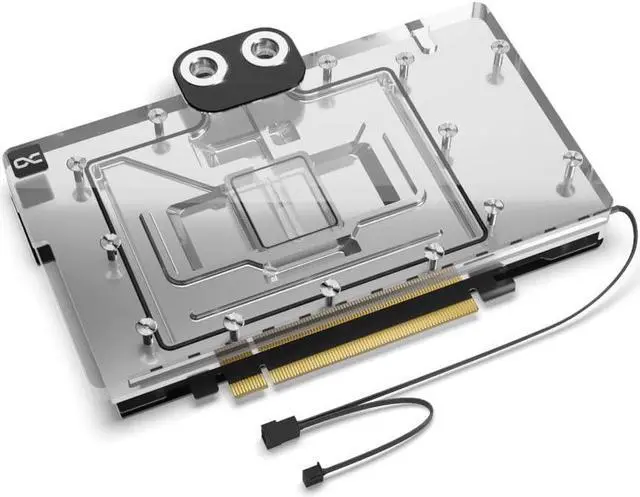

Alphacool Core Geforce RTX 4090 Master V.2 GPU Water Block with Backplate

Alphacool's Core product series is characterized by high quality, outstanding performance and a uniform and functional design language. The copper cooler, which is milled from a single piece of copper together with the terminal terminal, is the core of this cooler. The fine workmanship paired with the hard and resistant chrome plating of the entire copper cooler meets the highest quality standards. The G1/4" brass threads, which are left in chrome and integrated on both sides, stand out visually from the terminal and are one of the core points of the new design language that will be evident in all products in the Core series.

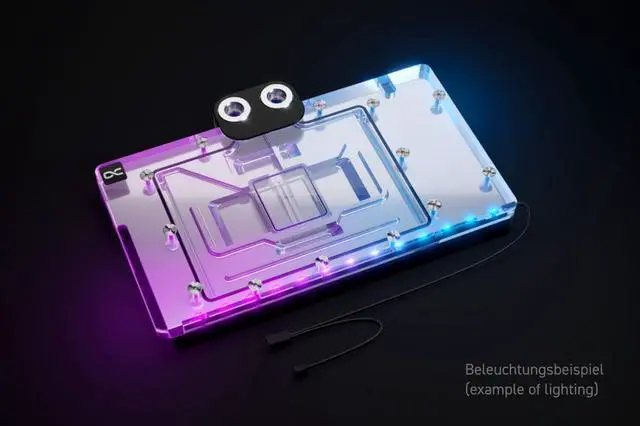

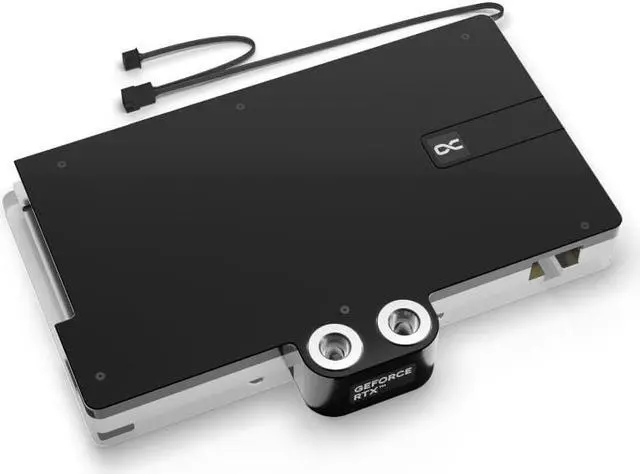

The aluminum backplate, which is adapted to the design, forms a unit together with the terminal and impresses with a clear and homogeneous look on the back of the cooler. The lighting consists of digitally addressable RGB LEDs that illuminate the entire cooler evenly and well.
Compatibility:
Note: This version (V. 2) of the cooler is compatible with PCB Layout V. 1.1 - Gigabyte AORuS GeForce RTX 4090 Master 24G, 24GB GDDR6X (GV-N4090AORuS M-24GD) - Gigabyte GeForce RTX 4090 Gaming OC 24G, 24GB GDDR6X (GV-N4090GAMING OC-24GD) Technical data cooler Dimensions (L x W x
H): 235.80 x 152.96 x 31.90 mm
Radiator base material: chrome plated copper
Radiator top material: Acrylic
Connections: 4 x
G1/4" Thick radiator base: 11.3 mm
Thick cooling fins: 0.4 mm
Distance between cooling fins: 0.4 mm
Lighting: digital aRGB LEDs Power connection digital aRGB
LEDs: 3-pin JST Voltage digital aRGB
LEDs: 5V Number of digital aRGB
LEDs: 13
Color: transparent Technical data backplate Technical data backplateDimensions (L x W x
H): 235.80 x 129.96 x 5mm
Material: aluminum
Color: black
Model: 13837
