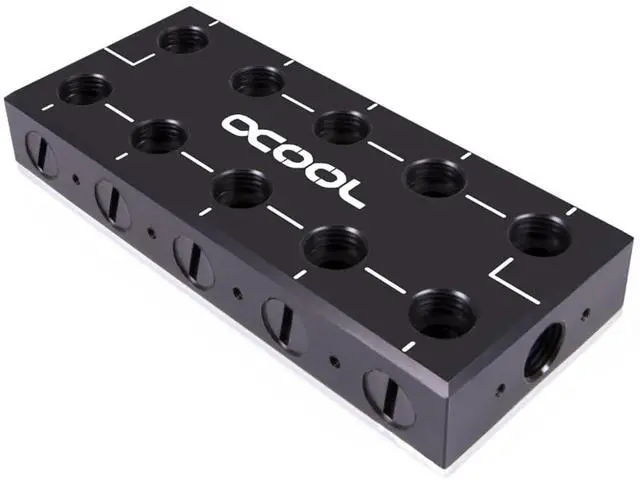

Alphacool ES Distro Plate Parallel C5

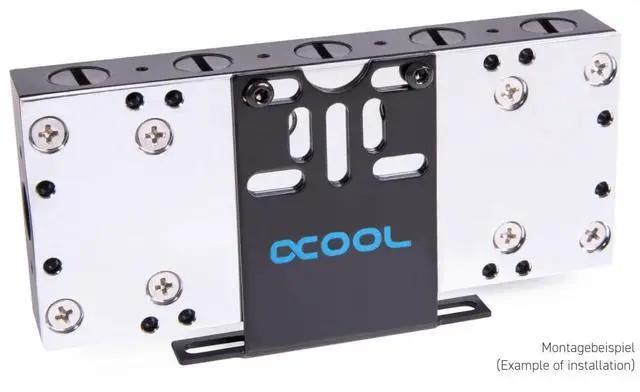

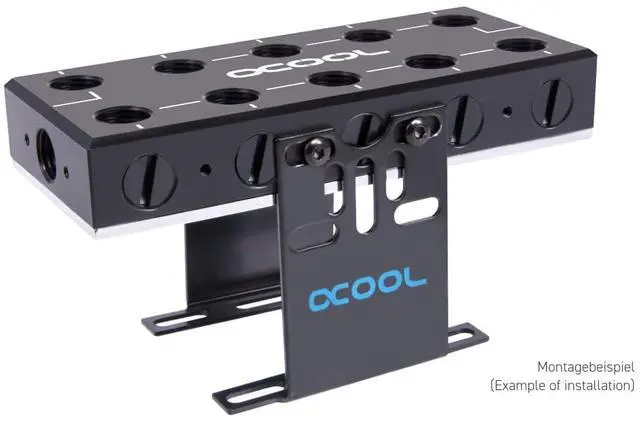

NOTE: This Distro Plate (manifold) is not compatible with the Alphacool ES Quick Release BLH1A Push-In Fittings. The Alphacool ES Distro Plate ensures organization in the system and facilitates the exchange of components in combination with quick-release fasteners. It offers extensive mounting options and is the ideal foundation for any enterprise system that is to be equipped with water cooling. Mounting options The ES Distro Plate can be mounted in many ways. The easiest and fastest variant is the mounting via the enclosed self-adhesive Velcro. One side is glued directly to the Distro Plate, the other side to any place in the case. Afterwards, the Distro Plate is simply placed on the Velcro. The scope of delivery also includes feet and mounting frame. With the appropriate mounting bracket, the Distro Plate can be mounted on any 120 or 140 mm fan space or flexibly placed in the server case with the stand feet. Various threaded holes on the sides and back of the ES Distro Plate offer further direct mounting options, including adapted holes for special mounting rails in Alphacool's server racks. Connection options The ES Distro Plate has 22 connection options in G1/4" inner thread format with 5mm screw-in depth.

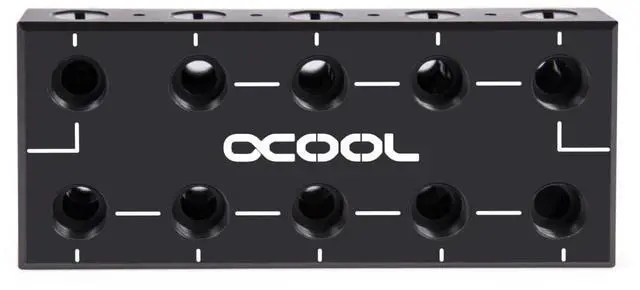

There are 5 connections on each left and right side, 10 connections on the front and one connection on each top and bottom side. The guidance lines on the Distro Plate facilitate the comprehensibility of the water flow as well as the connection options, which are also shown in detail in the manual. Due to the high number of configuration options, all components in the water circuit can be easily connected to the Distro Plate. Technical data Dimensions L x W x
H: 130 x 56 x 22, 5mm
Material top: acetal

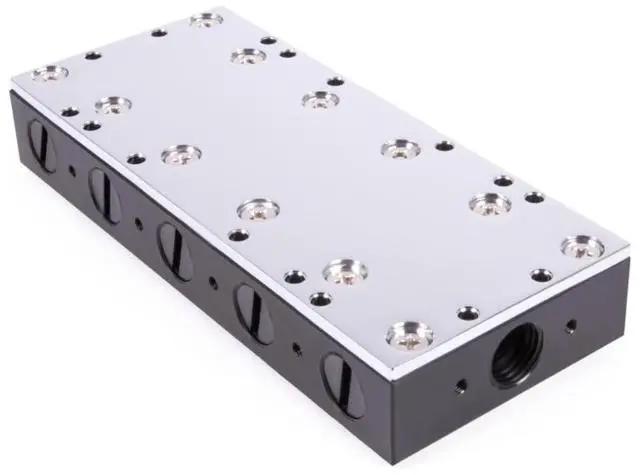

Material bottom: nickel plated copper
Threads: 22 x G1/4" inner thread (max.
5mm thread length) Model: 13024
