$57.99
Meet Your Seller
LVDs Controller Board 30 pins m.nt68676 for 17" 19" 1280x1024 M170EG01 M170EN01 M170EN06 M170ETN01 1 LCD Gaming Screen Panel
- LCD Driver Board Work for 1280x1024 30 Pins 5V LVDs LCD display. video input: H-D VGA DVI ,Audio output: speaker connector ( 8ohm 2W 4Pin PH2.0 connection).
- Compatible Screen models 17" LTM170EU LTM170EH LTM170E5 LTM170E6 HSD170ME13 M170EG01 M170EG02 M170EN01 M170EN05 M170EN06 LM170E03
- Compatible Screen models 19" LM190E02 LM190E03 LM190E08 G190EG01 M190EG02 M190EG03 M190EN01 HSD190ME11 HSD190ME12

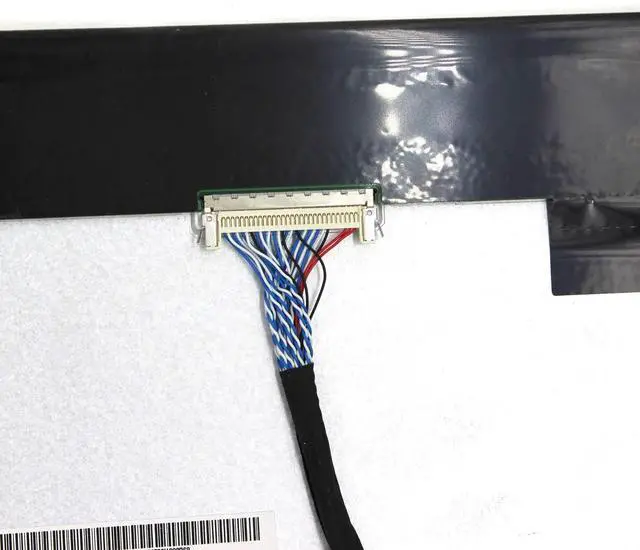

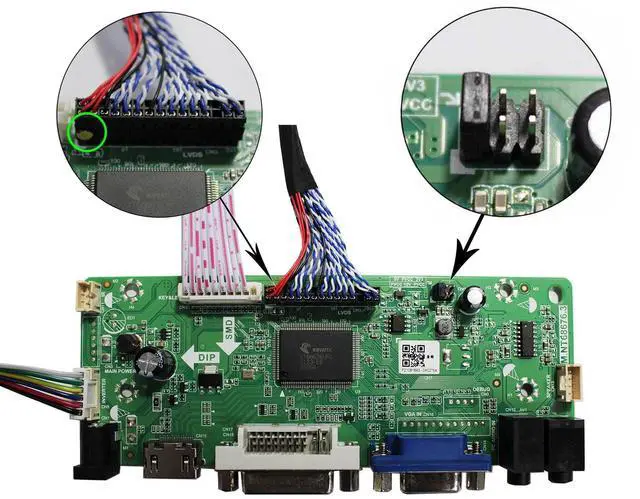

- Plug and playConnecting the cables and ports as link pictures, Power on ,enter into signal,the screen can be lit up.Pls use in insulated environment to avoid short road.
- Input power supply12V DC more than 3A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
- Board failure self-check: Directly power on board ,The LED light green/red means board can work normally ;Then connect screen signal port, No enter signal ,the"no siganl" words showing on screen means the problem comes from signal ,Pls try with other signal cable /resource; White/Black scree
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board:
DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 3A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
Audio Input:
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 139mm x 53mm x 17mm
Compatible Work With:
17inch 1280x1024
M170EG01 M170EG02 M170EN01 M170EN04 HSD170ME13
M170EN05 M170EN06 LM170E03 br/> LTM170EU LTM170EH LTM170E5 LTM170E6
19inch 1280x1024
LM190E02 LM190E03 LM190E08 M190E5 G190EG01
M190EG02 M190EG03 M190EN01 HSD190MEN4
HSD190ME11 HSD190ME12 HSD190ME13 LTM190EX
LTM190E1 LTM190E2 LTM190E3

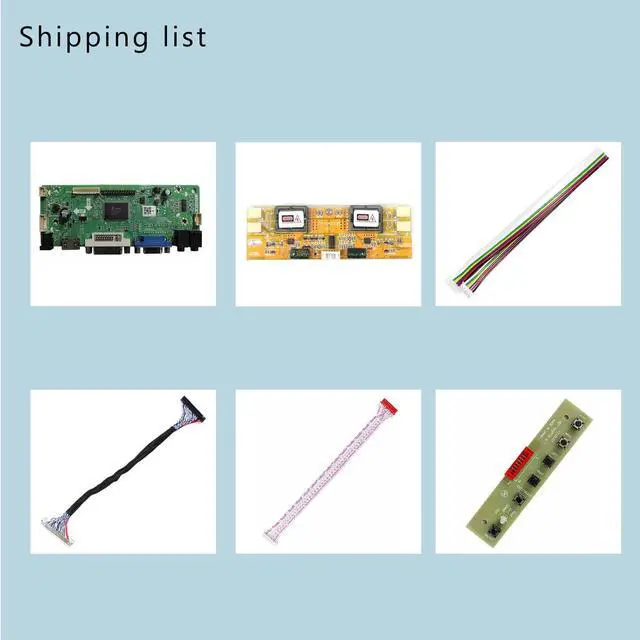

Packing list:
1× VGA DVI LCD Controller Board M. NT68676

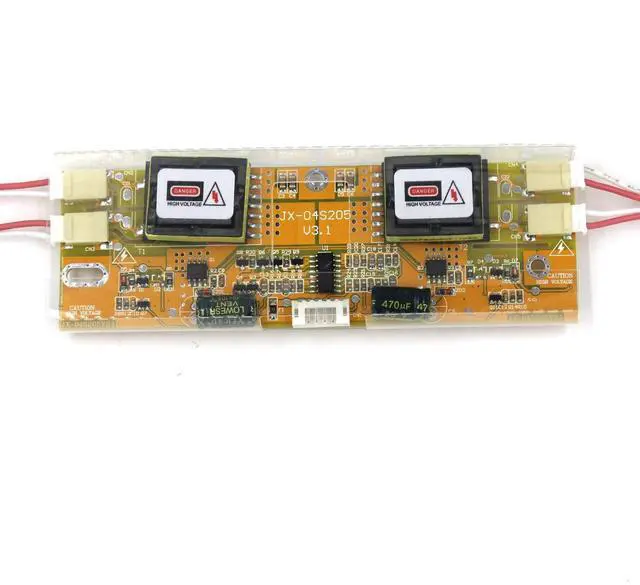

1× 4CCFL Inverter Board
1× 30Pin Signal Cable
1× Keyboard With Cable
DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 3A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
Audio Input:
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 139mm x 53mm x 17mm
Compatible Work With:
17inch 1280x1024
M170EG01 M170EG02 M170EN01 M170EN04 HSD170ME13
M170EN05 M170EN06 LM170E03 br/> LTM170EU LTM170EH LTM170E5 LTM170E6
19inch 1280x1024
LM190E02 LM190E03 LM190E08 M190E5 G190EG01
M190EG02 M190EG03 M190EN01 HSD190MEN4
HSD190ME11 HSD190ME12 HSD190ME13 LTM190EX
LTM190E1 LTM190E2 LTM190E3
Packing list:
1× VGA DVI LCD Controller Board M. NT68676
1× 4CCFL Inverter Board
1× 30Pin Signal Cable
1× Keyboard With Cable
