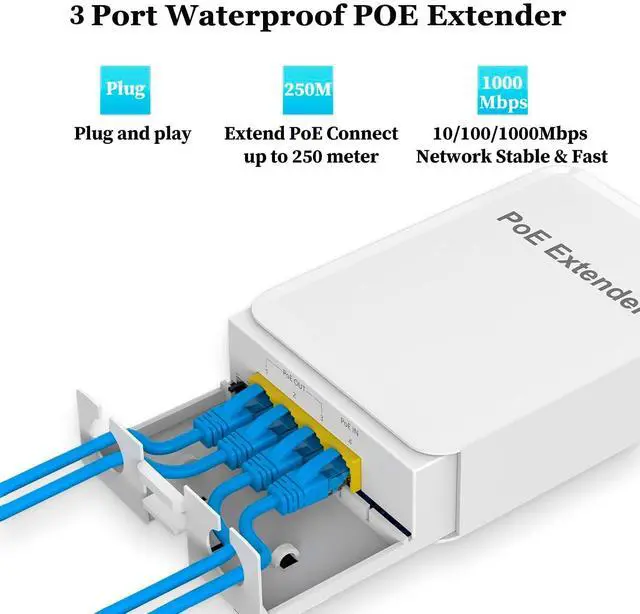

REVODATA 3 Port Outdoor Gigabit PoE Extender, 10/100/1000 Mbps PoE Repeater 100/250 Meter Extend, IEEE802.3af/at 3 PoE Output Waterproof for Outdoor, Plug and Play (WPOE6004G)
- 1 Input 3 Output1 PoE input and 3 PoE output at 10/100/1000 Mbps rate. Power output 25W Max (only using 1 port), 8-10W (using 3 ports ). Suitable for IP camera, Wireless AP.

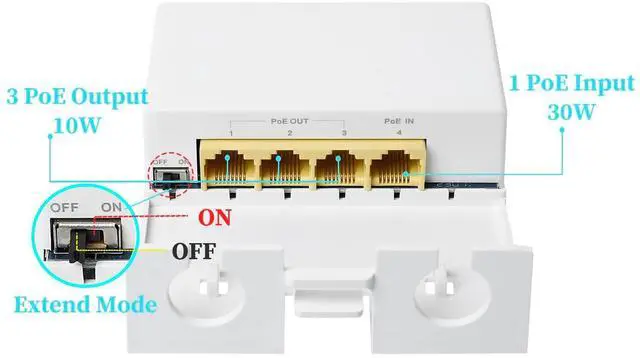

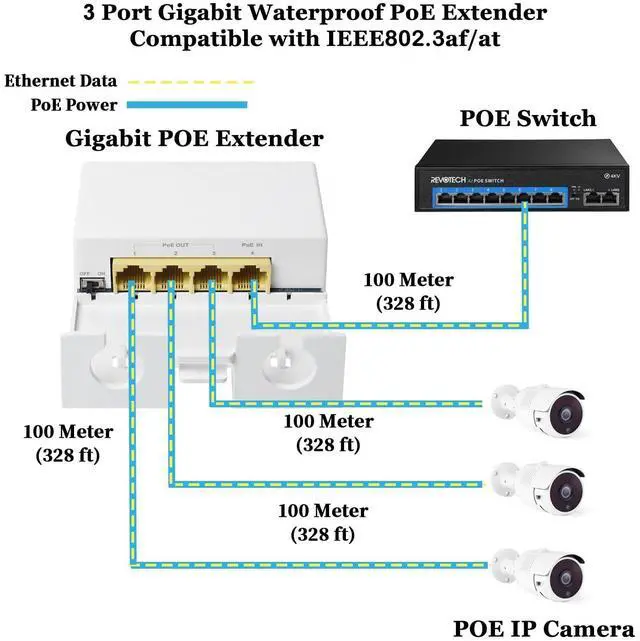

- 100m/250m ExtensionSupport 100m and 250m PoE extension, (switch OFF:100M; switch ON:250M), Extenders can be cascaded to reach up to 750m.

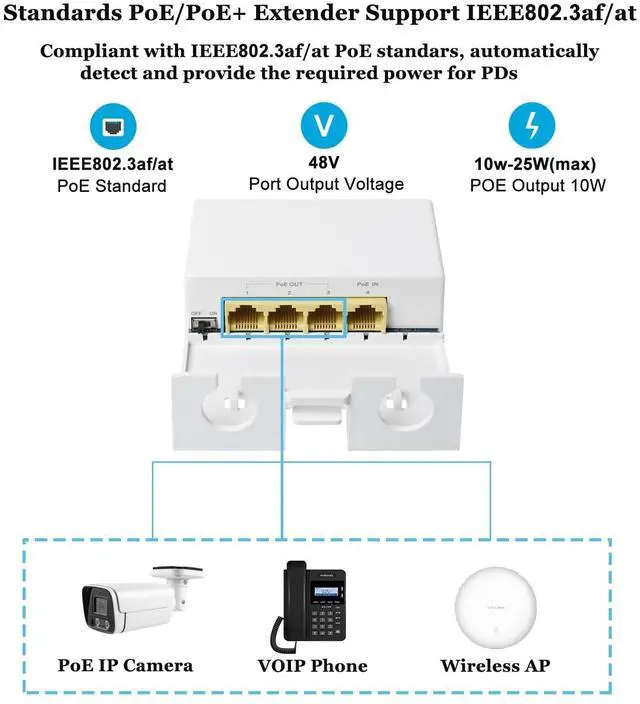

- Comply IEEE 802.3af/atSupport IEEE 802.3af/at PoE Standard, Input Voltage: DC 44-57V, Output Voltage: 48V, Power input Pin 1/2+3/6- 4/5+7/8-, Power output pin 1/2+3/6
- Plug and PlayJust connect to device, Auto detection and protection, No manual configuration required
- Waterproof OutdoorIP66 Waterproof design for outdoor, protect your device from rain and water
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Note: 1. This Extender is not a PoE Switch, it can not work without powered from PoE Switch/PoE injector/PoE NVR. 2. Please don't place any heavy thing on the PoE extender;
Overview: 3*100/1000mbps POE port to output, 1*100/1000mbps port to input100m Distance and VLAN, IP65Support IEEE 802.3AF /ATPOE
In: 44V-57V/30W; POE
Output (1-3): POE 48V, Power: 10w-25W (max) All port supported by MDI/MDIX auto flip and self negotiationSupply 4 100/1000Mpbs adaptive high speed forwarding data packetSpecification: PoE
input: 1
RJ45 portPoE output: 3
RJ45 portInput power: 30
Watts MaxOutput power: 10-25
WattsEthernet Rate: 10/100/1000MbpsNetwork
Medium: Cat5 or better UTP cable (less than 100m)
Daisy Chain Distance: up to 700m (6 pieces)
Repeater Mode: Store and forwardMAC
Address Table: 1KSwitching
Capacity: 10GbpsPoE
Standard: IEEE 802.3 af/atPower input
Pin: 1/2+3/6- 4/5+7/8Power output
Pin: 1/2+3/6-Storage
Humidity: 5%~90%, No
CondensationOperating temperature:
-1045Dimension: 98 x 148 x 34mm (L*W*H)
Weight: 150gPackage
Contents: 1 x WPOE6004G
Overview: 3*100/1000mbps POE port to output, 1*100/1000mbps port to input100m Distance and VLAN, IP65Support IEEE 802.3AF /ATPOE
In: 44V-57V/30W; POE
Output (1-3): POE 48V, Power: 10w-25W (max) All port supported by MDI/MDIX auto flip and self negotiationSupply 4 100/1000Mpbs adaptive high speed forwarding data packetSpecification: PoE
input: 1
RJ45 portPoE output: 3
RJ45 portInput power: 30
Watts MaxOutput power: 10-25
WattsEthernet Rate: 10/100/1000MbpsNetwork
Medium: Cat5 or better UTP cable (less than 100m)
Daisy Chain Distance: up to 700m (6 pieces)
Repeater Mode: Store and forwardMAC
Address Table: 1KSwitching
Capacity: 10GbpsPoE
Standard: IEEE 802.3 af/atPower input
Pin: 1/2+3/6- 4/5+7/8Power output
Pin: 1/2+3/6-Storage
Humidity: 5%~90%, No
CondensationOperating temperature:
-1045Dimension: 98 x 148 x 34mm (L*W*H)
Weight: 150gPackage
Contents: 1 x WPOE6004G
