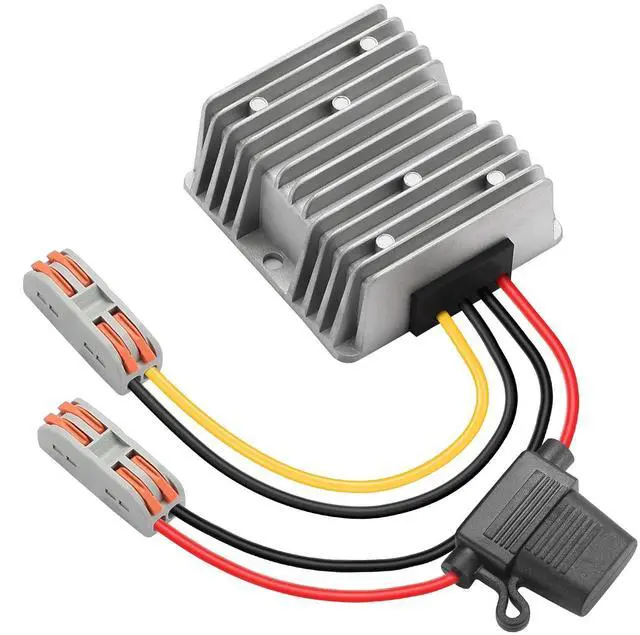

YBBOTT 20A 240W DC Converter 24V to 12V Step Down Converter DC Buck Converter Transformer Power Supply Compatible with Vehicle Cart Truck Volt

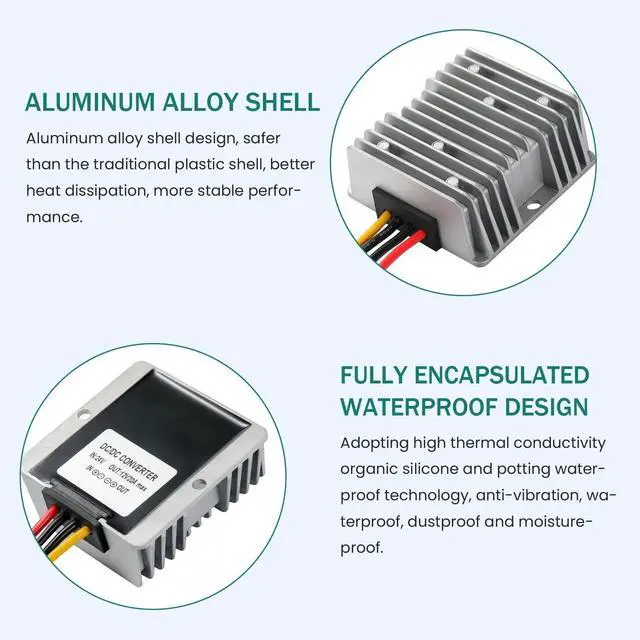

- POWER CONVERTER: DC 20A 24V to 12V step down converter with stable performance and conversion efficiency above 95% Durable and better heat protection; The internal gluing and aluminum alloy outer box, with excellent fluidity
- VOLTAGE RANGE: Input voltage: 24V; Output voltage: DC 12V; Output current: 20A; Maximum output power: 240W; Small Size and easy to place in any applications; The converter is shockproof, dustproof, stable and reliable quality

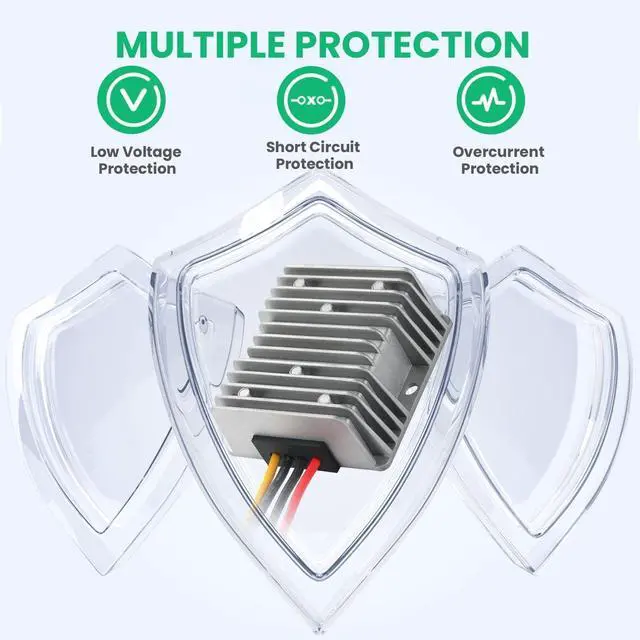

- INTELLIGENT PROTECTION: Supports output short-circuit protection, overcurrent protection, and overtemperature protection; Operating temperature -40 to +85, in order to extend the service life of the power supply, please use rated output current 50%

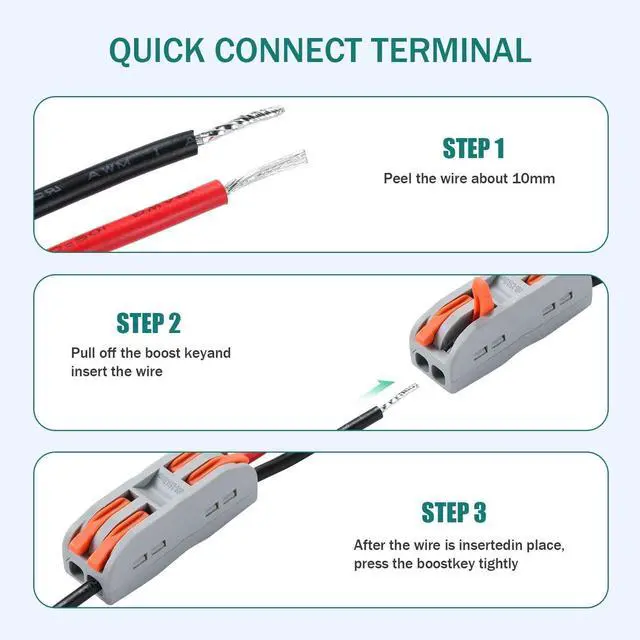

- INSTALLATION: Easy to install, pull of the key 90 MAX, insert the wire, press the key tightly; The converter has a red and black wire, the red is connected to the positive electrode, and the black is connected to the negative electrode
- WIDE APPLICATION: A wide range of use, the excellent
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification ParametersInput voltage: 24VInput
range: 18V
to 35VOutput voltage setting: 12VOutput
current: 20AOutput
power: 240WWorking
environment temperature: -25
to 65Storage ambient temperature: -40 to 85
CHeat dissipation mode: Natural heat dissipation from the shellConnection
ModeInput: Red+
Black-Output: Yellow+ Black-Input transient high voltage protection, output overcurrent protection, chip
overtemperature protectionDimensions: Length 74 mm or 2.91 in x Width 74 mm or 2.91 in x Height 32 mm or 1.25 inWeight: 260 gramsMatters of Use1. Can not reverse connection, the power supply has no reverse connection protection, reverse connection will damage the power supply2. During use, the load can not be overloaded, leaving a margin for the power supply to ensure long term stable operation of the power supply3. In the process of use, if the ambient temperature is too high, the power should be appropriately reduced, and low temperature work is the guarantee that the power supply can work reliably for a long time4. Do not use near heat sources, such as fire or heater5. Do not connect the input cable to the household power supply 220V6. Do not put the product in the fire or heat it7. Do not use wires or other metal objects to short circuit the positive and negative poles of the product8. Non professional personnel are prohibited from disassembling and repairing themselvesNote: This product is stored in a dry and cool place, the temperature range is -40 to 80, avoid contact with corrosive substances, away from fire and heat sources
range: 18V
to 35VOutput voltage setting: 12VOutput
current: 20AOutput
power: 240WWorking
environment temperature: -25
to 65Storage ambient temperature: -40 to 85
CHeat dissipation mode: Natural heat dissipation from the shellConnection
ModeInput: Red+
Black-Output: Yellow+ Black-Input transient high voltage protection, output overcurrent protection, chip
overtemperature protectionDimensions: Length 74 mm or 2.91 in x Width 74 mm or 2.91 in x Height 32 mm or 1.25 inWeight: 260 gramsMatters of Use1. Can not reverse connection, the power supply has no reverse connection protection, reverse connection will damage the power supply2. During use, the load can not be overloaded, leaving a margin for the power supply to ensure long term stable operation of the power supply3. In the process of use, if the ambient temperature is too high, the power should be appropriately reduced, and low temperature work is the guarantee that the power supply can work reliably for a long time4. Do not use near heat sources, such as fire or heater5. Do not connect the input cable to the household power supply 220V6. Do not put the product in the fire or heat it7. Do not use wires or other metal objects to short circuit the positive and negative poles of the product8. Non professional personnel are prohibited from disassembling and repairing themselvesNote: This product is stored in a dry and cool place, the temperature range is -40 to 80, avoid contact with corrosive substances, away from fire and heat sources
