WayPonDEV LD14P 2D 360 Degree Lidar 2300Hz 8m Scanning Radius Distance Lidar Sensor Triangulation Scanner for Robot Obstacle Avoidance Autopilot Navigation
- [Triangulation Technology] LD14P is based on traditional triangulation radar technology to achieve 360-degree environment detection,paired with LDROBOT first-class algorithm logic to achieve high-precision map construction and obstacle detection forthe robot.

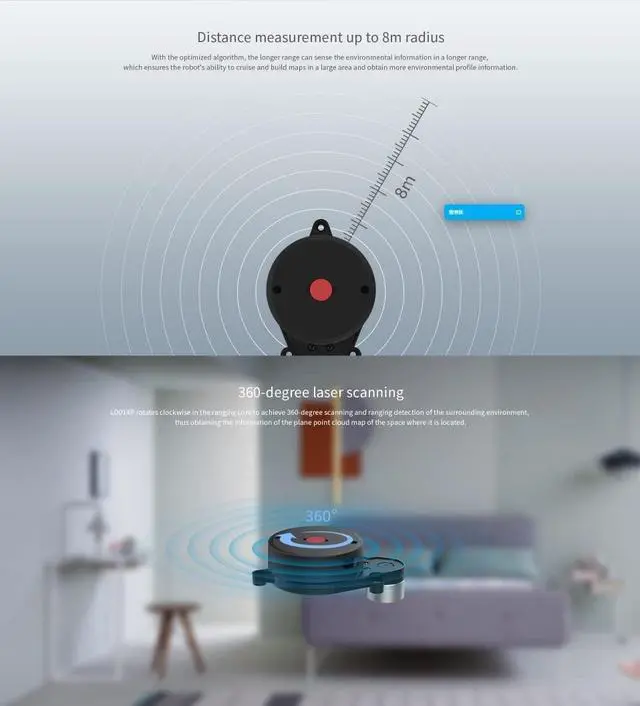

- [Ultra Long Range] After algorithm optimization, the distance measurement can reach 8M, and the longer distance measurement range can sense the environmental information in a farther range, and can obtain more environmental contour information.
- [Easy to integrate] LD14P rangefinder ladar lightweight and compact, the design of the integrated dust cover, the improved design in terms of dust prevention and anti-winding, can completely solve the problem of debris winding.
- [Strong adaptability] LD14P sensor scanner can be perfectly adapted and compatible with the triangular laser radar LD14P, which makes the installation more convenient, adapts to more types of robots, and quickly realizes large-scale mass production.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
-Specification-Distance measurement range
D (unit: m) 0.1 D 8 White target (80% target reflectivity) 0.1 D 6 black target (4% target reflectivity)Scanning frequency: 6Hz 2~8Hz external controllable, factory
default 6HzSpeed error: 36010RPM default factory 6Hz speedMeasurement frequency: 4000 points/second default factory point frequencyViewing angle: FOV
360Pitch angle: 01.0Z
ero angle deviation: - 0.5 - 0.5A ngular resolution: 0.54 under the default factory 6Hz speed conditionAnti-ambient light: 80000Lux sunlight internal
test standardRadar noise: TBD internal quiet room
test valueStart-up time: 3.5S
; typical value: 3S from power-on of the radar to outputting stable point cloud dataMachine life: 2200h under normal temperature environment operating conditionsWorking temperature/humidity: -1050@95%RHStorage

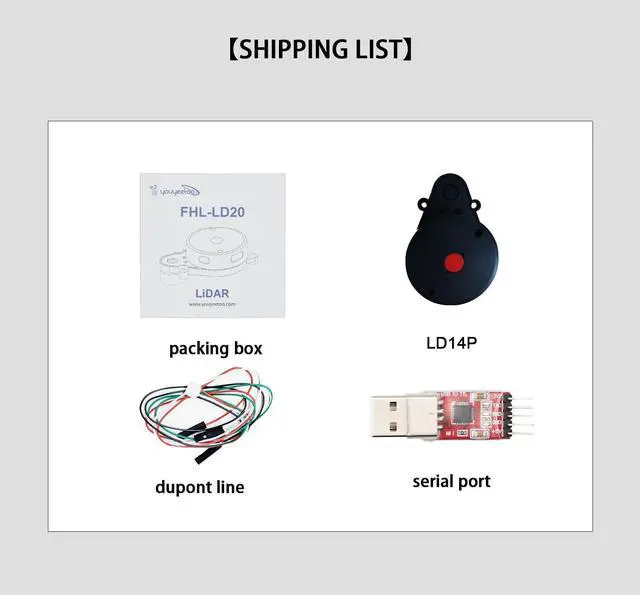

temperature: -3070-Package Content-Triangulation LiDAR D200 Kit x1-Technical Support- Wiki"wiki. youyeetoo. com/en/Lidar/LD14". Please click "WayPonDEV" and ask a question. Please leave the message monica#smartfire.
cn (f----@) skype: monica_9122. Please leave the message in our forum by forum. youyeetoo. com/.
D (unit: m) 0.1 D 8 White target (80% target reflectivity) 0.1 D 6 black target (4% target reflectivity)Scanning frequency: 6Hz 2~8Hz external controllable, factory
default 6HzSpeed error: 36010RPM default factory 6Hz speedMeasurement frequency: 4000 points/second default factory point frequencyViewing angle: FOV
360Pitch angle: 01.0Z
ero angle deviation: - 0.5 - 0.5A ngular resolution: 0.54 under the default factory 6Hz speed conditionAnti-ambient light: 80000Lux sunlight internal
test standardRadar noise: TBD internal quiet room
test valueStart-up time: 3.5S
; typical value: 3S from power-on of the radar to outputting stable point cloud dataMachine life: 2200h under normal temperature environment operating conditionsWorking temperature/humidity: -1050@95%RHStorage
temperature: -3070-Package Content-Triangulation LiDAR D200 Kit x1-Technical Support- Wiki"wiki. youyeetoo. com/en/Lidar/LD14". Please click "WayPonDEV" and ask a question. Please leave the message monica#smartfire.
cn (f----@) skype: monica_9122. Please leave the message in our forum by forum. youyeetoo. com/.
