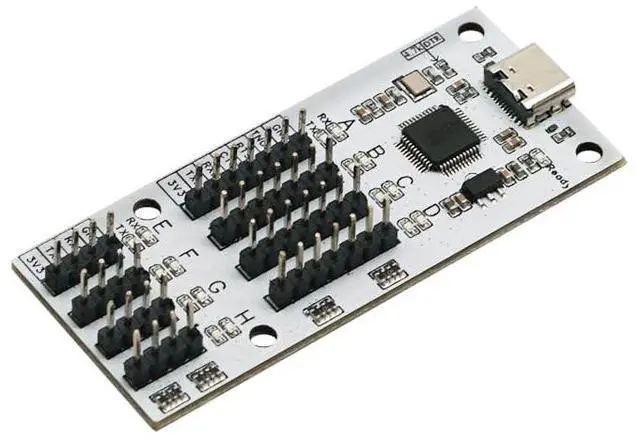

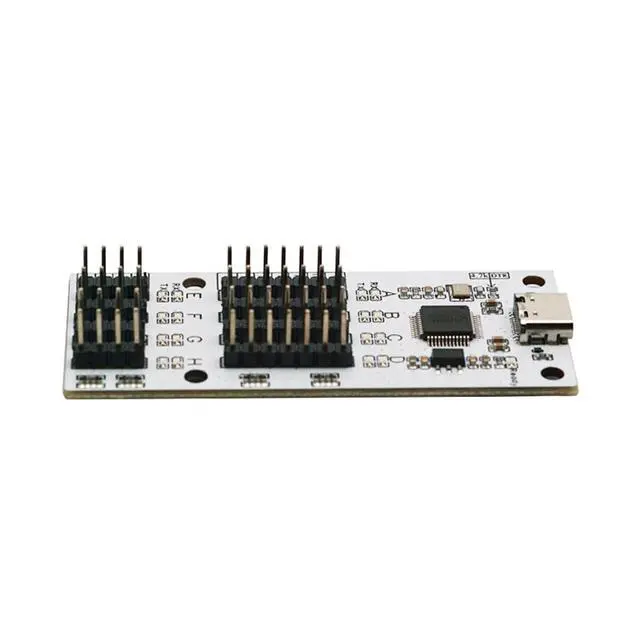

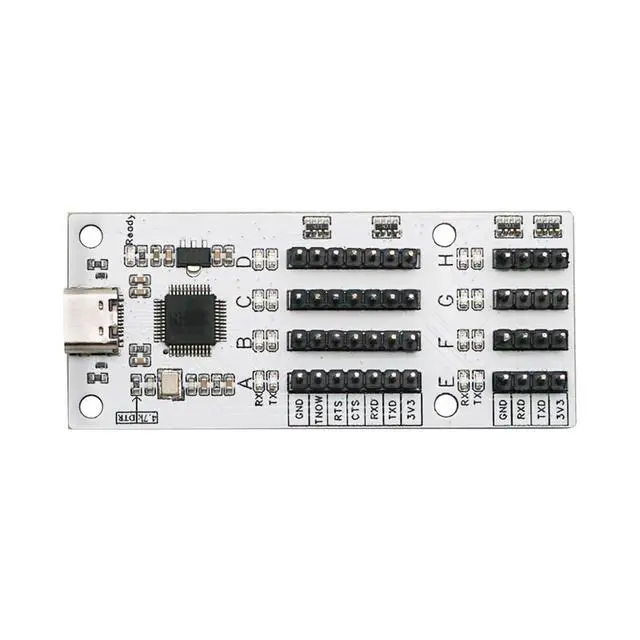

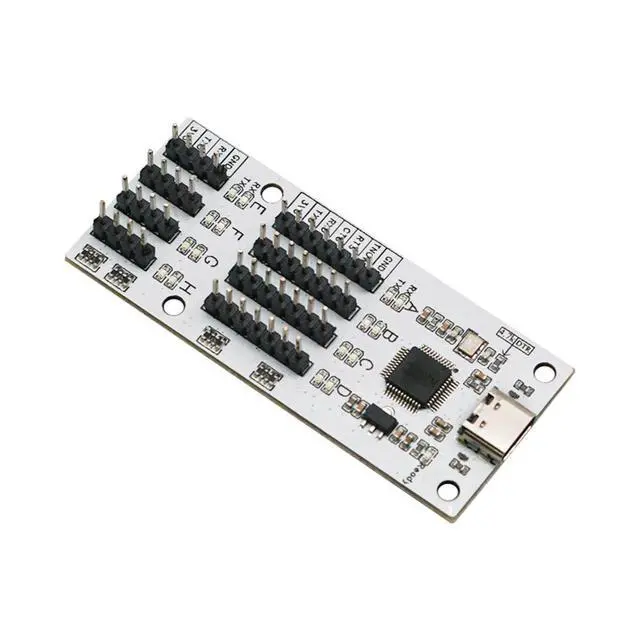

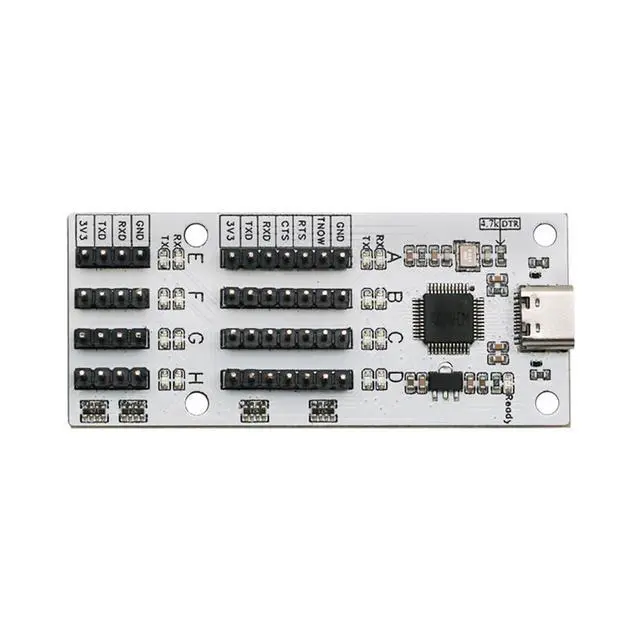

USB to TTL 8-Way Serial CH348 Independent Control Chip Serial Adapter Interface Converter Port USB to UART 8-Way TTL Serial Port COM Work independently Without Interfering
- 480Mbps high-speed USB device interface, external 8M crystal, more stable communication rate.
- 8 serial ports (A-H), independent work, do not affect each other; each serial port is equipped with corresponding 3.3V and GND output.
- Four-way (A-D) with hardware flow control function, while equipped with a serial port is sending the status of the indication TNOW, can be used to control the RS485 send and receive switch.
- The TNOW pin can be configured in hardware to function as a DTR pin. On-board power indicator, and 8-channel signal transceiver indicator.
- Signal level: 3.3 V. Baud rate range: 1200bps - 6Mbps.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
480Mbps high-speed USB device interface, external 8M crystal, more stable communication rate. ^^ 8 serial ports (A-H), independent work, do not affect each other; each serial port is equipped with corresponding 3.3V and GND output. ^^ Four-way (A-D) with hardware flow control function, while equipped with a serial port is sending the status of the indication TNOW, can be used to control the RS485 send and receive switch. ^^ The TNOW pin can be configured in hardware to function as a DTR pin. On-board power indicator, and 8-channel signal transceiver indicator.
^^
Signal level: 3.3 V.
Baud rate range: 1200bps - 6Mbps.
^^
Signal level: 3.3 V.
Baud rate range: 1200bps - 6Mbps.
