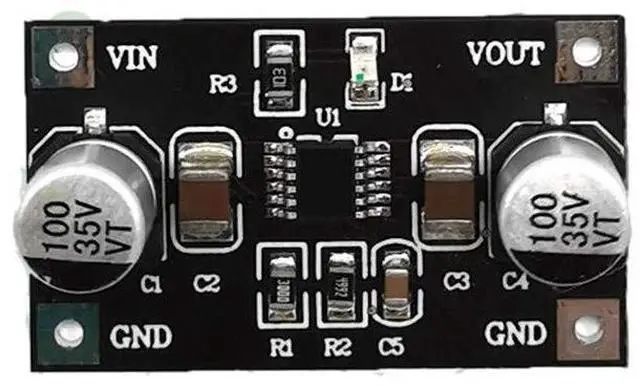

Taidacent LT3045 Linear Voltage Regulator Board Low Noise Dropout Parallel Adjustable Buck Converter 5V 9V 12V 15V (9V Output)

Be the first to review this product...

linear regulator buck Input voltage +20V(MAX) Output voltage +5V, +9V, +12V, +15V Output current 500mA (MAX)
Input and output pressure difference <500mV Output power 6w (12V/0.5A) Load regulation rate 0.5%
Voltage regulation rate 1% Static power consumption 1mA Output ripple better than 1mV No-load module noise 0.8uVRMS (10Hz-100kHz)
Module PSRR 76dB at 1MHz Module enable Module protection none No reverse connection protection, no fuse
Single output, users can connect in parallel to increase output current

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

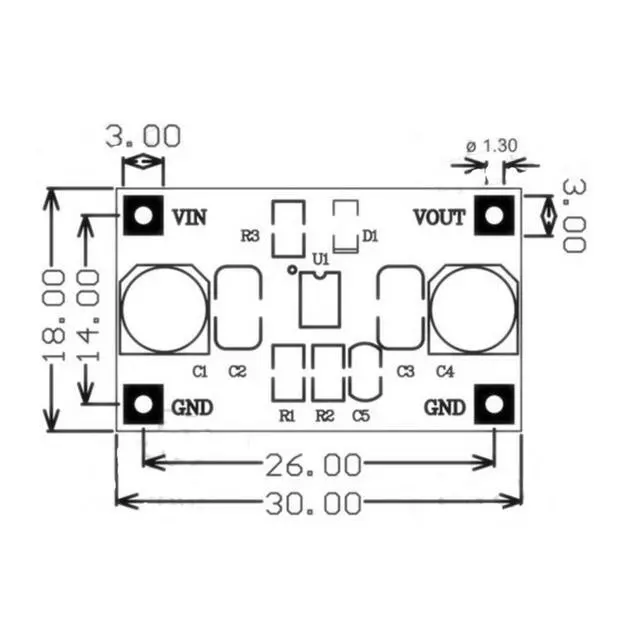

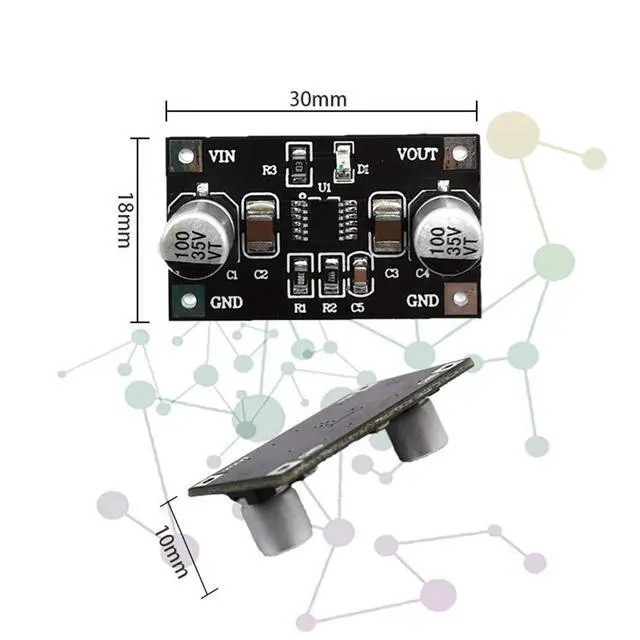

Module model single LT3045Module type linear regulator buckInput voltage +20V (MAX) Output voltage +5V, +9V, +12V, +15VOutput current 500mA (MAX) Input and output pressure difference <500mVOutput power 6w (12V/ 0.5A )Load regulation rate 0.5 %Voltage regulation rate 1%Static power consumption 1mAOutput ripple better than 1mVNo-load module noise 0.8 uVRMS (10Hz-100kHz)Module PSRR 76dB at 1MHzModule enableModule protection none No reverse connection protection, no fuseModule characteristicsSingle output, users can connect in parallel to increase output currentModule application multiplePrecision operational amplifier, high-speed/high-precision data converter, Module weight 2.5 gModule size 30*18 (mm) Module heatingWorking temperature -25+75
