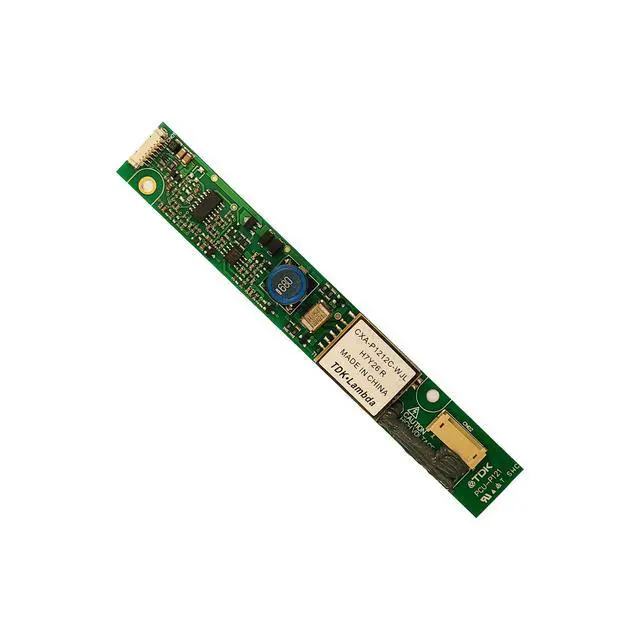

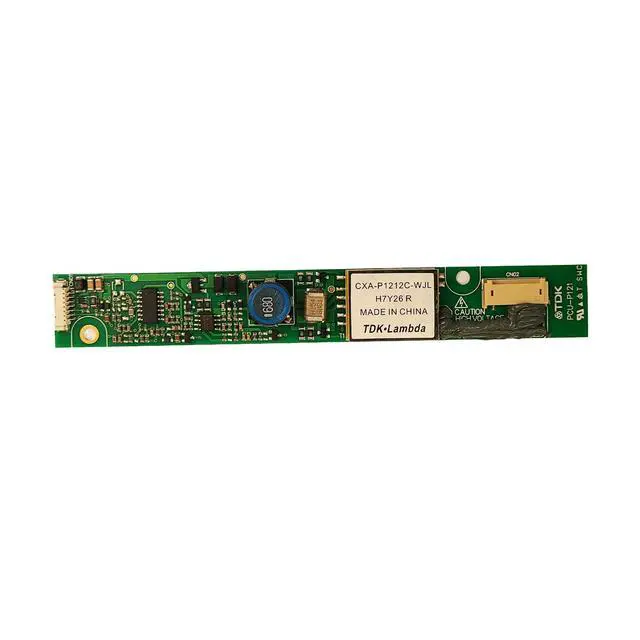

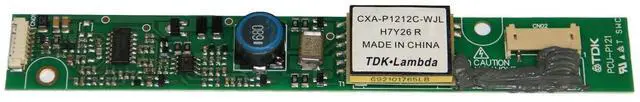

TOSYUWIR Inverter Board CCFL Inverter Backlight Inverter CXA-P1212C-WJL
- 8W DUAL OUTPUTS WITH DIMMING FUNCTION
- Wide operating temperature range
- Alarm signal function
- PWM dimming type.
- Current Feedback Circuit Silicon Coating in High Voltage area.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This low profile DC to AC Inverter is developed for dual lamps, low power LCD backlight. Application includes industrial PC and LCD monitor. Applicable LCD; 8 to 12 inches double lamp typeLamp Voltage 600VrmsLamp Current 6mArmsLamp Start Up
Voltage 1700Vrms (Vin: 12V)
FEATURES: Wide operating temperature rangeAlarm signal functionPWM dimmingCurrent Feedback CircuitSilicon Coating in High Voltage areaTEMPERATURE
& HUMIDITY: Operating Temperature Range -10C ~ +60CStorage Temperature Range -20C ~ +85CHumidity 95 %RH max
Voltage 1700Vrms (Vin: 12V)
FEATURES: Wide operating temperature rangeAlarm signal functionPWM dimmingCurrent Feedback CircuitSilicon Coating in High Voltage areaTEMPERATURE
& HUMIDITY: Operating Temperature Range -10C ~ +60CStorage Temperature Range -20C ~ +85CHumidity 95 %RH max
