UeeKKoo ESP32-S3 7inch Capacitive Touch Screen Development Board, 800x480 Resolution, 5-Point Touch, Up to 240MHz Frequency, Support W-i-F-i&Blue-Too-th with Onboard Antenna, ESP32-S3 with Display

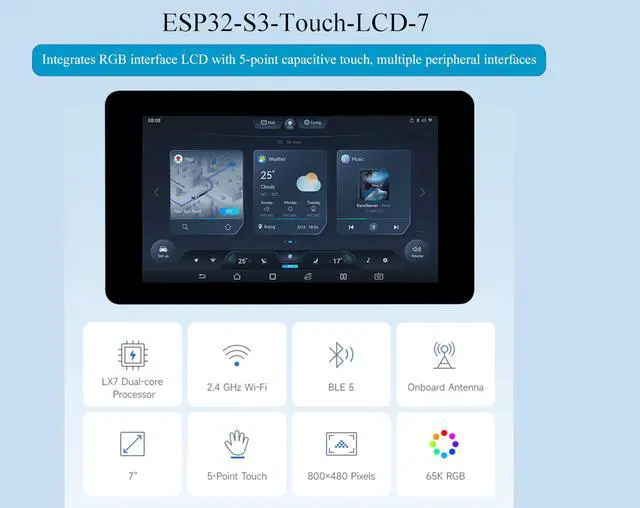

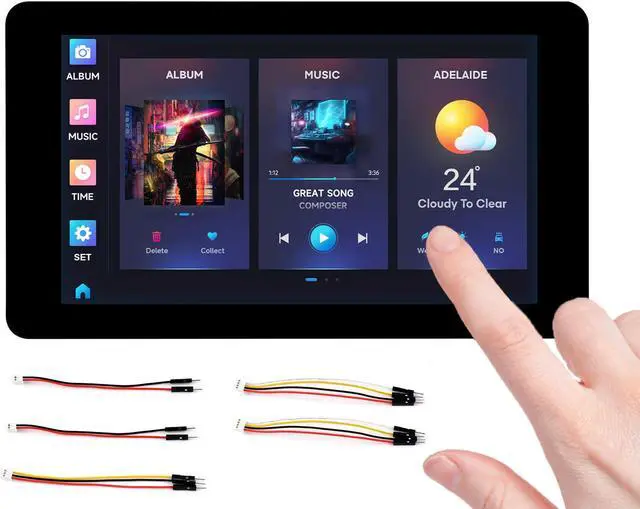

- Waveshare ESP32-S3-Touch-LCD-7 is a microcontroller development board with 2.4GHz W-i-F-i and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 7inch capacitive touch screen,800×480 resolution, 65K color, can smoothly run GUI programs such as LVGL.
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too-th 5 (LE), with onboard antenna.
- Supports capacitive touch control via I2C interface, 5-point touch with interrupt support

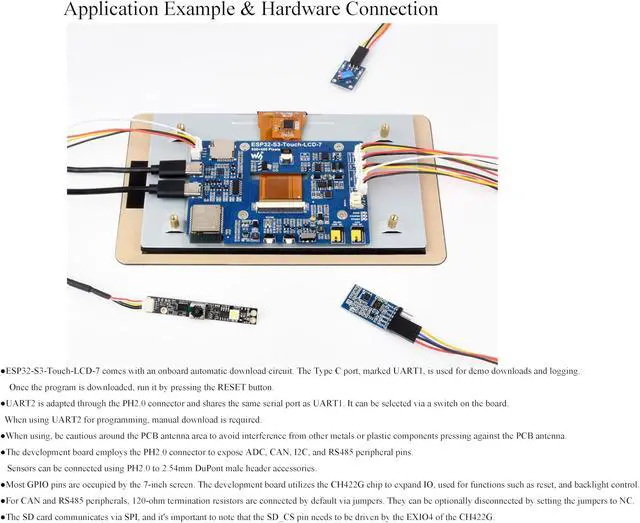

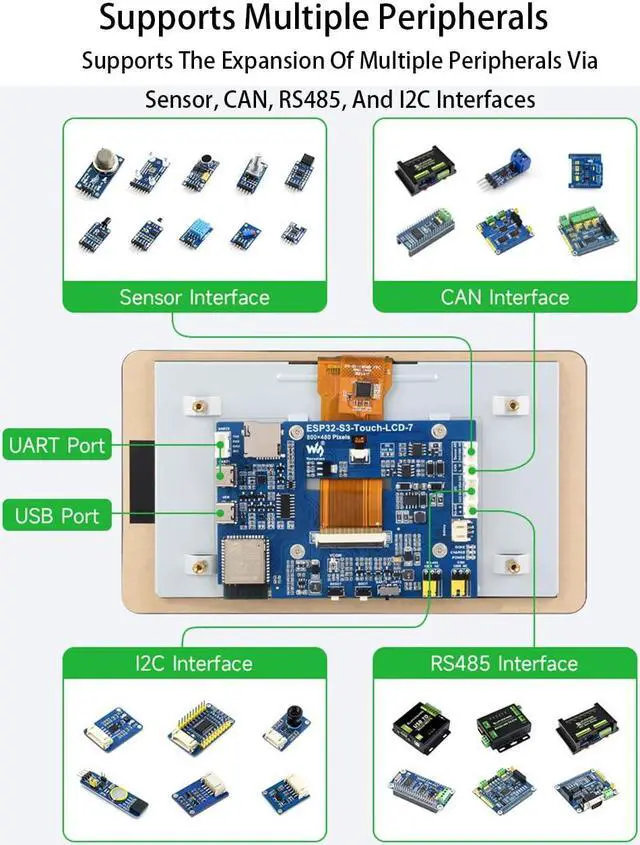

- Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications
- Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios
- Provide Online Development Resources /User Manual, Please let us know if necessary.
+
+
