Tongyu SFP LC Module 1000Base 1310nm/1550nm 20km Single LC Transceiver for Cisco, Ubiquiti UF-SM-1G, Netgear, Mikrotik, Other Open Switches
- 1000Base-LX SFP ModuleUp to 1.25Gb/s Data Links.Hot-Pluggable
- Wavelength and Reach1310nm FP laser transmitter,1550nm PIN photo-detector;Up to 20 Km on 9/125m SMF
- Fiber TypeSFP Single LC connector

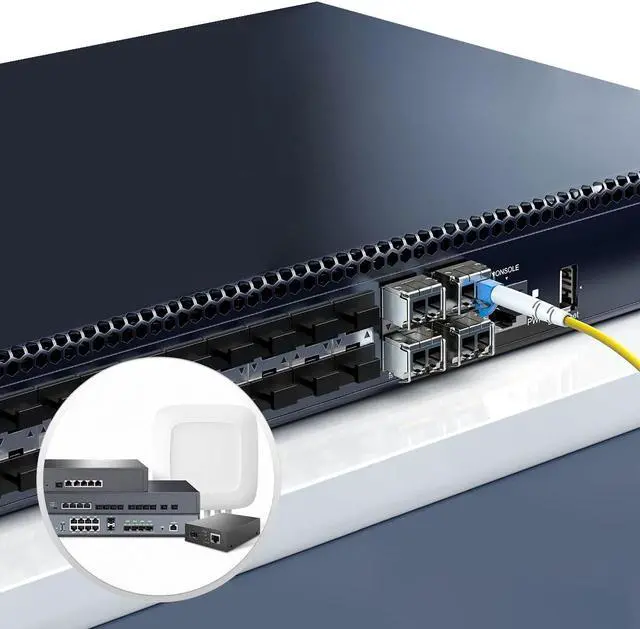

- Broad CompatibilityCompatible with most fiber switches, media converters, routers or other optical equipment with SFP ports from Cisco, Meraki, Ubiquiti, Mikrotik, Fortinet, D-Link, Supermicro, etc.
- Accept customizationTongyu is a professional manufacturer of communication equipment and accepts customized orders. If required, please contact us to customize SKUs to suit your needs.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Up to 1.25G b/s Data Links
Hot-Pluggable
Single LC connector
Up to 20 Km on 9/125m SMF
1310nm FP laser transmitter
1550nm PIN photo-detector
Single + 3.3V Power Supply
Monitoring Interface Compliant with SFF-8472
Maximum power dissipation <1W
Industrial /Extended/ Commercial
Operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
RoHS compliant and Lead Free
Applications:
1000Base-LX Ethernet
Metro/Access Networks
1×Fibre Channel
Other Optical Links
Description:

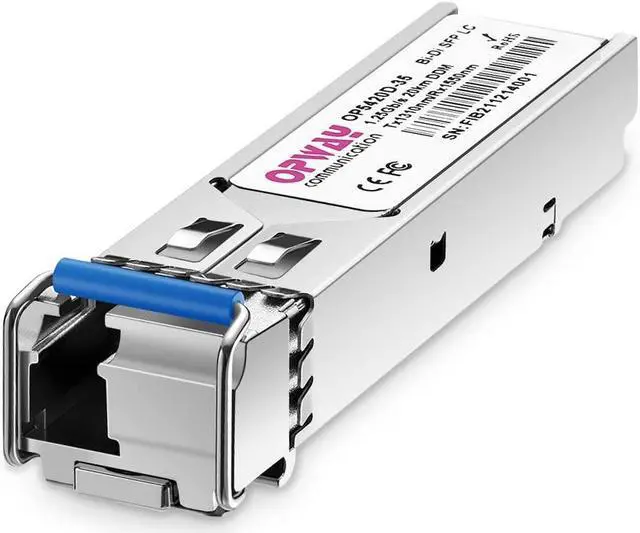

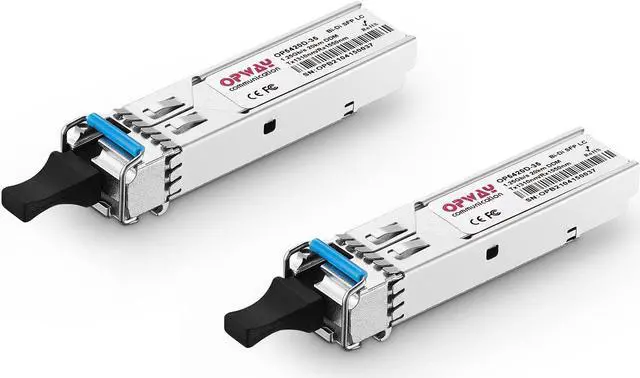

OP5420D-35 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 20km application.
Up to 1.25G b/s Data Links
Hot-Pluggable
Single LC connector
Up to 20 Km on 9/125m SMF
1310nm FP laser transmitter
1550nm PIN photo-detector
Single + 3.3V Power Supply
Monitoring Interface Compliant with SFF-8472
Maximum power dissipation <1W
Industrial /Extended/ Commercial
Operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
RoHS compliant and Lead Free
Applications:
1000Base-LX Ethernet
Metro/Access Networks
1×Fibre Channel
Other Optical Links
Description:
OP5420D-35 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 20km application.
